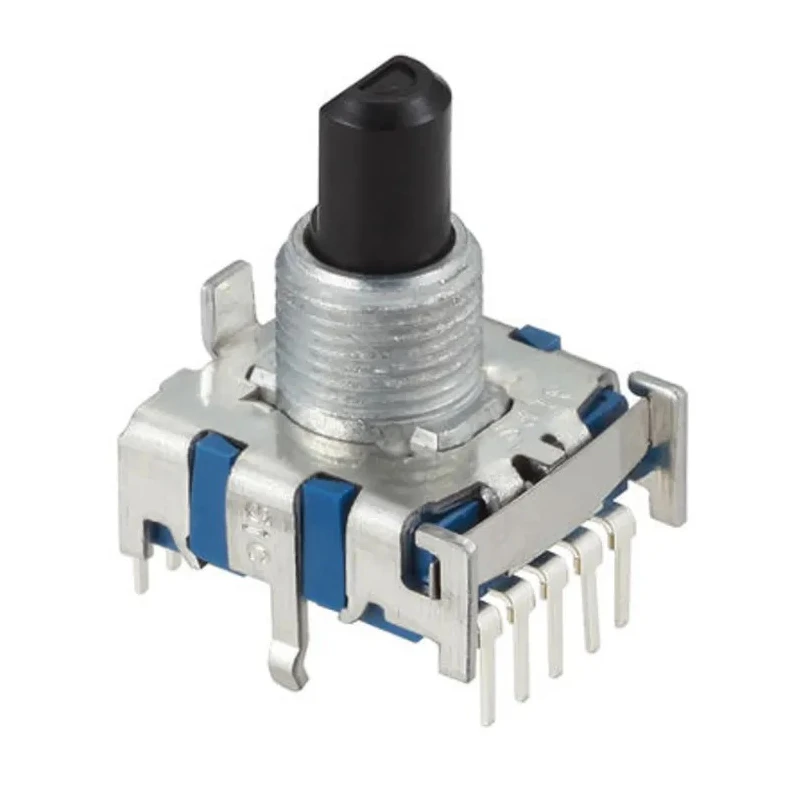

Alps Alpine 8 Position SP8T Rotary Switch, 300mA, Terminal,

Free Delivery in India | Lowest Global Shipping Charges

Alps Alpine 8 Position SP8T Rotary Switch, 300mA, Terminal,

Name: Alps Alpine 8 Position SP8T Rotary Switch, 300mA, Terminal,
Brand: Alps Alpine
SKU: 194099
Price: 6.94 USD
Availability: InStock



Category Rotary Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	Japan
Diameter	5.4mm
Brand	Alps Alpine
Height	16.2mm
Model	SP8T
Depth	18.5mm
Width	18.5mm
Mount Type	PCB
Series	SRBV
Contact Configuration	SP8T
Number of Positions	8
Minimum Operating Temperature	85°C
Terminal type	Terminal
Maximum dc Voltage	16V dc
Number of Poles	1
Standards/Approvals	RoHS
Switch Operation	8-Position Low-Profile Vertical Type
Actuator Colour	Grey
Switch Contact Current	300mA
Mechanical Life	10000Cycles
Maximum AC Voltage	100V ac
Angle of Throw	30 °

Key Features

The switch features an 8-position low-profile vertical operation with SP8T contact configuration.
It supports a maximum AC voltage of 100V and maximum DC voltage of 16V for diverse applications.
The compact design includes dimensions of 18.5mm width and depth, with a height of 16.2mm and a diameter of 5.4mm for precise fit.
Designed for robust performance with mechanical life of 10,000 cycles and an angle of throw of 30 degrees.
The actuator is grey-colored with a rotational torque of 30±3 degrees for smooth actuation.
This PCB mount rotary switch is RoHS compliant and manufactured in Japan, ensuring quality standards.
Operational temperature ranges from minimum -85°C to maximum 85°C supporting varied environmental conditions.

Product Description

The Alps Alpine SRBV181004 is an 8 Position SP8T Rotary Switch offering precise and reliable switching functionality suitable for electrical and automation applications. This rotary switch supports a 300mA contact current and is built with terminal type connections for PCB mounting.

The switch operation is a low-profile vertical type that accommodates 8 distinct positions, allowing for versatile control configurations. Its maximum AC voltage rating stands at 100V AC while the maximum DC voltage is 16V DC, making it appropriate for low voltage circuit control.

Carefully engineered dimensions contribute to its compactness, measuring 18.5mm in width and depth with a height of 16.2mm and a diameter of 5.4mm. The actuator color is grey, designed to provide clear visual indication and ease of use with an angle of throw of 30 degrees.

The switch is designed to withstand up to 10,000 mechanical cycles, suitable for steady industrial or laboratory usage. It operates effectively in a wide temperature range from -85°C to 85°C, providing reliability in varied environments. RoHS compliance certifies its adherence to environmental safety standards.

Manufactured in Japan, this Alps Alpine rotary switch is ideal for applications in industrial automation, electrical panels, instrumentation, and PCB assemblies requiring precise, multi-position switching. Its terminal mount type ensures easy and secure PCB integration.

The switch features an 8-position low-profile vertical operation with SP8T contact configuration. Supports a 300mA contact current and voltage ratings of 100V AC and 16V DC. Compact dimensions enable integration into space-constrained circuits.

Robust mechanical life of 10,000 cycles ensures durability. Wide operating temperature range from -85°C to 85°C. Grey actuator with 30° angle of throw provides tactile feedback and ease of operation. Terminal type mount optimized for PCB installations.
