Littelfuse 0.5 Amp Resettable Fuse 24V DC Surface Mount Mini SMDC050F Series MINISMDC050F-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Littelfuse |
| Height | 0.62mm |
| Length | 4.73mm |
| Model | MINISMDC050F-2 |
| Width | 3.41mm |
| Current Rating | 500mA |
| Series | miniSMDC050F |
| Maximum Operating Temperature | 85°C |
| Trip Current | 1A |
| Power Dissipation | 0.8W |
| Terminal Material | Tin Plated |
| Time to Trip | 0.15s |
| Hold Current | 0.5A |
| Minimum Resistance | 0.15Ω |
| Maximum Resistance | 1Ω |
| RS PRO 0.5 A Resettable Fuse, 33V dcRS Stock No. | 279-6752Brand: RS PRO |
| Mini Fuse SMD,mini reels, 500mABrand | TE Connectivity |
| Littelfuse 0.5A Resettable Fuse, 24V dcBrand | Littelfuse |
Key Features
- This resettable fuse features a trip current of 1 Amp, providing fast and reliable overcurrent protection.
- The fuse is surface mount technology compatible with small dimensions of 4.73mm length, 3.41mm width, and 0.62mm height.
- It has a hold current rating of 0.5 Amp with a time-to-trip of 0.15 seconds for quick response under electrical overloads.
- The terminal material is tin plated for enhanced conductivity and corrosion resistance.
- Power dissipation is rated at 0.8 Watts with low resistance ranging from 0.15 to 1 ohm ensuring minimal voltage drop.
- The fuse is halogen-free and RoHS compliant, making it environmentally friendly.
- Designed for automatic resetting, it requires no fuse holder and is maintenance-free for thousands of cycles.
- Operating temperature max is 85°C ensuring stable performance in standard conditions.
Product Description
Littelfuse MINISMDC050F-2 is a 0.5 Amp 24 Volt DC resettable fuse from the miniSMDC050F series, offering compact, surface-mount circuit protection for modern electronic devices.
This resettable fuse switches rapidly from a low resistance state to a high resistance state during overcurrent or short circuit conditions and automatically resets when the fault is cleared and power is removed. It supports a trip current rating of 1 Amp and a hold current of 0.5 Amp, with fast response time of approximately 0.15 seconds.

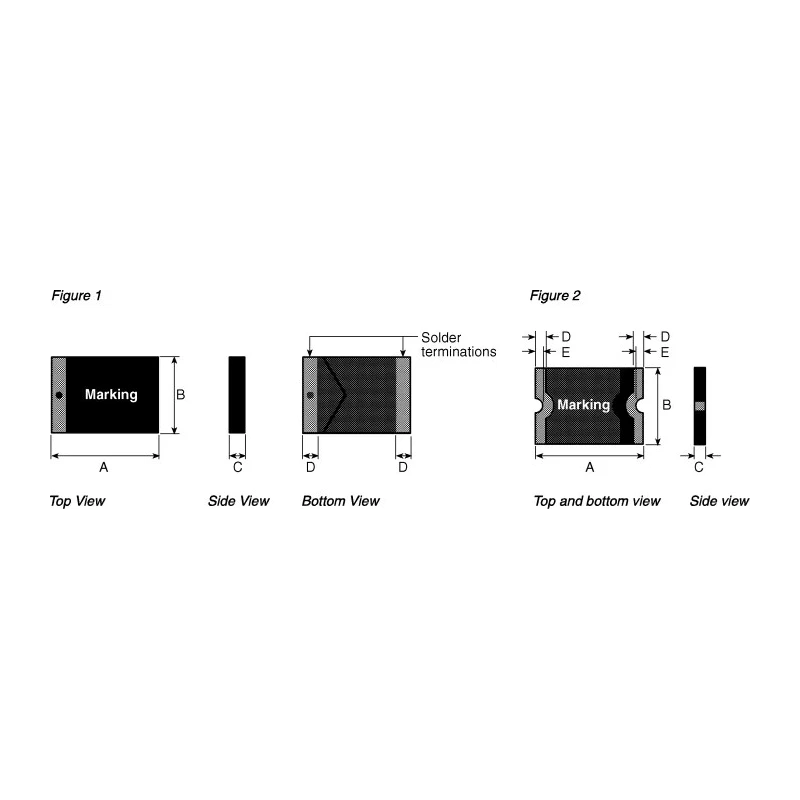

Physical dimensions of 4.73mm length, 3.41mm width, and 0.62mm height enable integration in space-critical applications, while tin-plated terminals assure good electrical connection and reliability.
With power dissipation of 0.8 Watts and operating temperature up to 85°C, this fuse is suitable for computer, consumer electronics, automotive instrumentation, and telecommunications applications. The halogen-free and RoHS compliant design aligns with environmental standards, making it suitable for industry and commercial uses.
Maintenance-free and capable of thousands of automatic reset cycles, the fuse eliminates the need for fuse holders, reducing assembly complexity and cost. This resettable fuse provides fast and reliable circuit protection against excessive current.
Compact surface mount design suits portable and space-constrained electronics. Halogen-free and RoHS compliant for environmentally responsible applications. Maintenance free and capable of thousands of automatic reset cycles.
Ideal for use in automotive, medical, telecommunications, and computer equipment.
This resettable fuse is an essential protective component for industrial, laboratory, commercial, and manufacturing equipment requiring dependable overcurrent protection. Explore more Littelfuse products and Resettable Fuses at EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.5 Amp.
The trip current for this model is 1 Amp.
The dimensions of this resettable fuse are 4.73mm in length, 3.41mm in width, and 0.62mm in height.
The maximum operating temperature for this fuse is 85°C.
The time-to-trip for this model is approximately 0.15 seconds.
This fuse features tin-plated terminals for enhanced conductivity and corrosion resistance.
The power dissipation rating of this model is 0.8 Watts.
Yes, this resettable fuse is maintenance-free and capable of thousands of automatic reset cycles.
The resistance range for this fuse is between 0.15 ohm and 1 ohm.
Yes, this resettable fuse is RoHS compliant, making it environmentally friendly.
This model is suitable for applications in automotive, medical, telecommunications, and computer equipment.
This resettable fuse operates at 24V DC.
