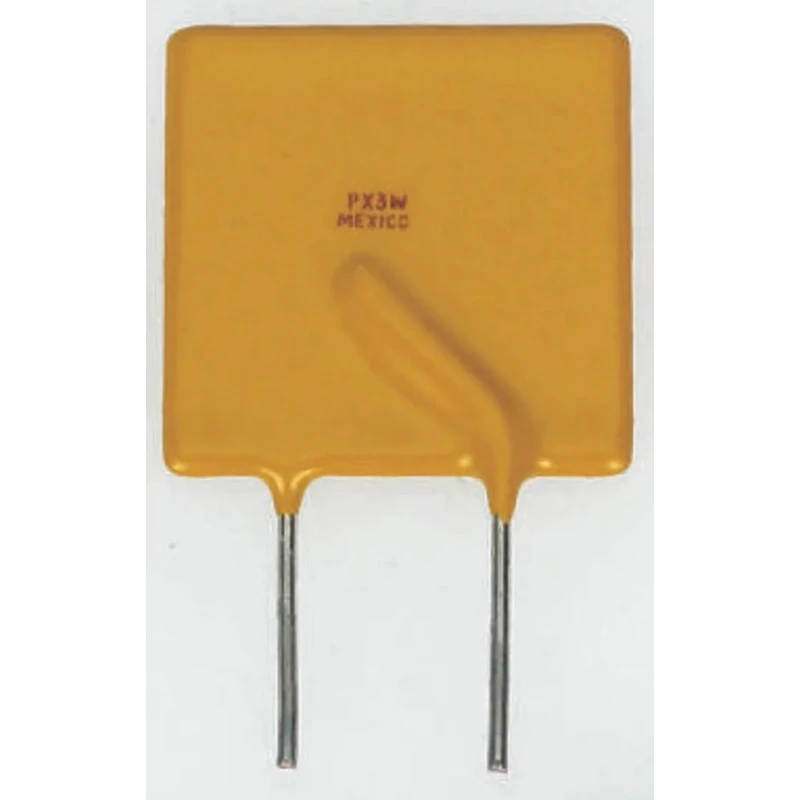

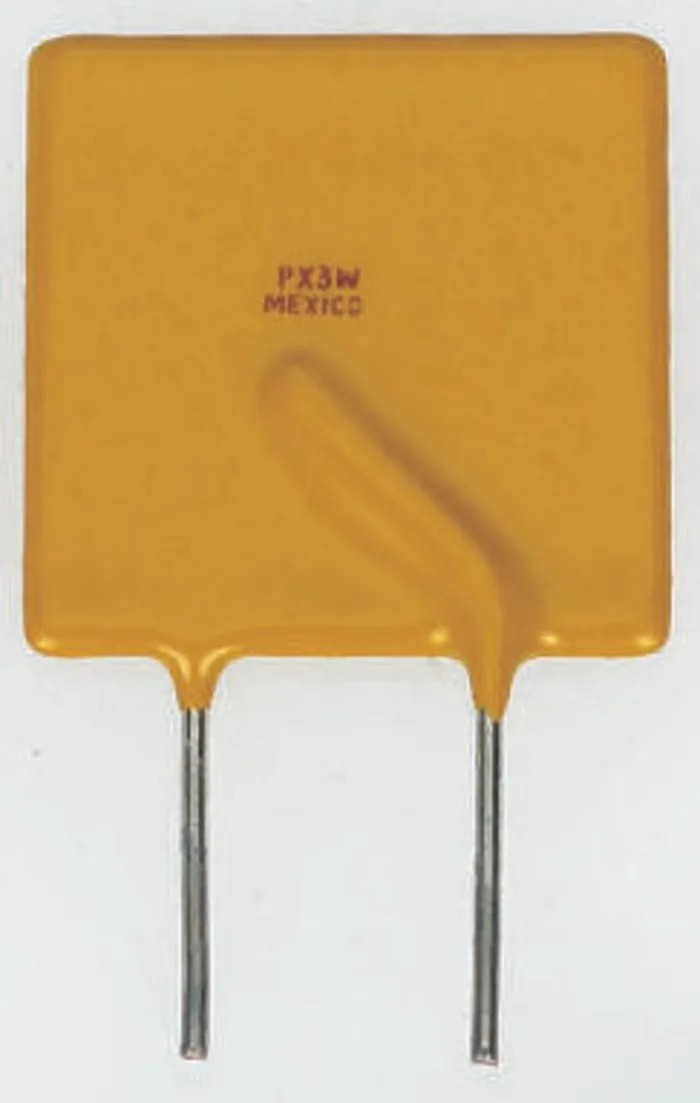

Littelfuse 7 A Resettable Fuse 16V Radial Lead RGEF700

The Littelfuse RGEF700 is a 7 A 16 V resettable fuse with radial lead orientation, designed to protect electrical and electronic circuits against excessive currents.

This PolySwitch™ RUEF & RGEF series fuse is compact with dimensions of 11.2 mm length, 19.7 mm height, and 3 mm width. It features a trip current of 11.9 A and a hold current of 7 A, with fast trip time of 3.5 seconds, ensuring timely protection.

The fuse operates within a temperature range of -40°C to 60°C and dissipates power up to 3 W. It is UL, RoHS, CSA, and TUV approved, ensuring high safety and compliance standards.

The device quickly switches from a low resistance state to a very high resistance state upon electrical overload or short circuit, effectively interrupting current flow. It automatically resets to the low resistance state once the fault condition is corrected and power is removed, enabling maintenance-free operation.

Its small size eliminates the need for fuse holders, making it suitable for compact assemblies such as security systems, power supplies, transformers, power switching devices, automotive and medical equipment, instrumentation and control, computers and peripherals, as well as audio-visual and telecommunications equipment.

The fuse features automatic resetting thousands of times. It provides reliable electrical protection without requiring maintenance. Compact form factor facilitates easy installation in constrained spaces. Wide application range across industrial, automotive, and consumer electronics sectors.

Compliance with major industrial safety standards assures dependable performance. Explore the full range of Resettable Fuses from Littelfuse to enhance your circuit protection solutions with trusted quality and performance at EnvMart.
