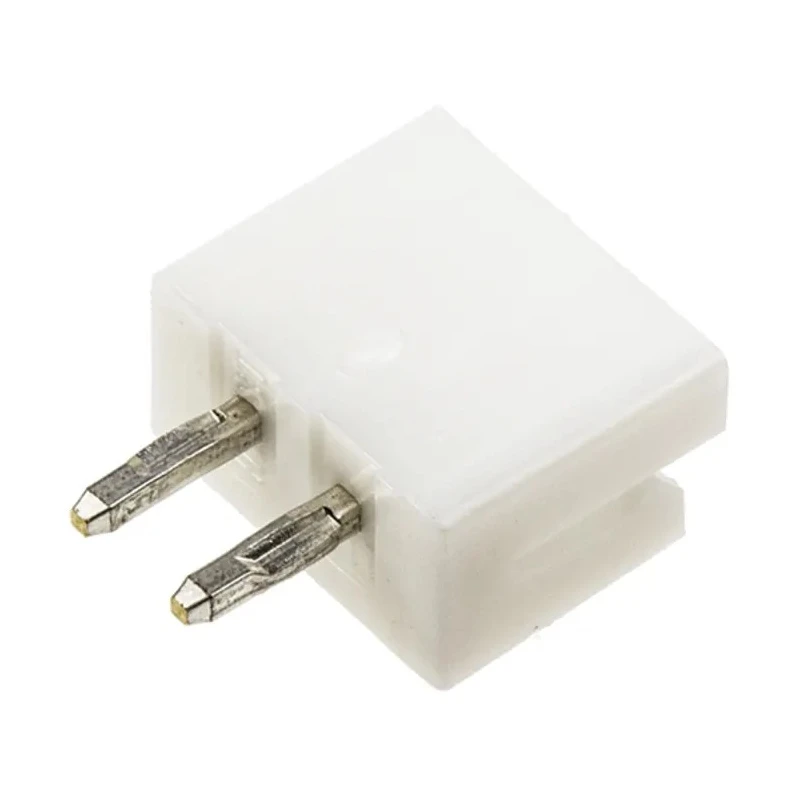

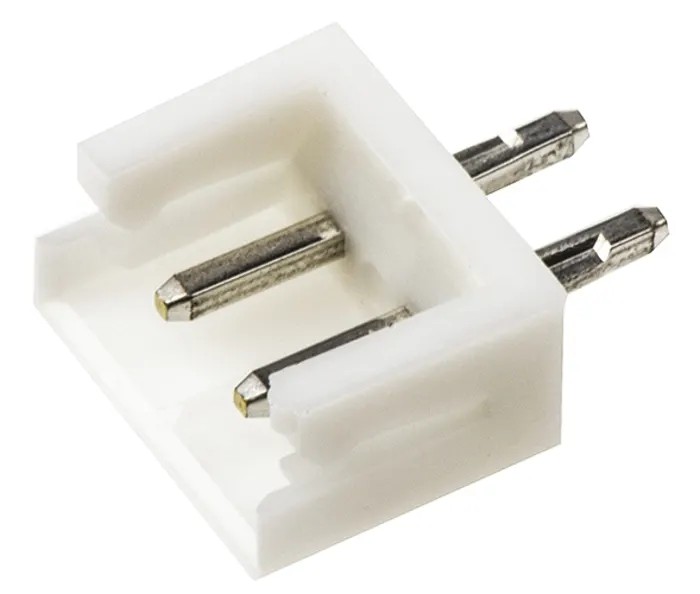

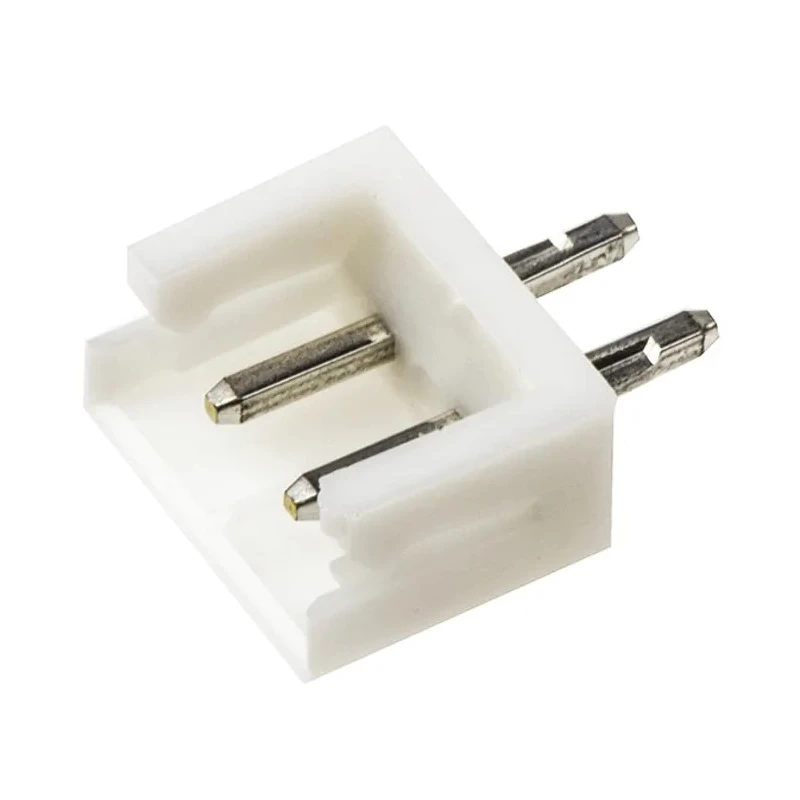

JST EH Series Straight Through Hole PCB Header 2 Contact(s) 2.5 mm Pitch 1 Row Shrouded B2B-EH-A (LF) (SN)

JST B2B-EH-A (LF) (SN) EH Series Straight Through Hole PCB Header is a high-quality electrical connector designed for precise and reliable wire-to-board connections. It features 2 contacts with a 2.5 mm pitch arranged in a single row, housed in robust polyamide material with a shrouded design to ensure correct polarization and secure mating.

The brass contacts are plated with tin for enhanced conductivity and corrosion resistance. This connector is intended for through hole mounting on printed circuit boards, providing a stable and durable mechanical and electrical connection compatible with standard soldering processes.

Operating reliably under temperatures ranging from -25°C to 85°C, and supporting a current capacity of 3 A and voltage of 250 V, this PCB header suits various industrial, electronic, manufacturing, and commercial equipment applications.

Its 3.2 mm mating pin length ensures compatibility with corresponding crimp socket housings or IDC socket housings. The shrouded design prevents misalignment and damage during assembly, supporting consistent and safe electrical connections.

Typical usage includes PCB wiring in control panels, instrumentation, automation systems, and other electronic assemblies requiring dependable connectors engineered for repeatable, high-quality performance in demanding environments.

The connector features a shrouded design ensuring secure mating and polarization. It has a wire-to-board connector system with brass contacts plated with tin. The housing material is durable polyamide suitable for industrial applications.

It supports a current rating of 3 A and voltage up to 250 V. Operating temperature ranges from -25°C to 85°C for broad application. Designed with 3.2 mm mating pin length for reliable solder termination. This single-row connector is mounted through hole for secure PCB installation.

Ideal for industrial, electronic, and manufacturing uses requiring reliable PCB connections. Explore the extensive range of PCB Headers and connectors available at EnvMart to find the best components for your electrical and electronic assembly needs.
