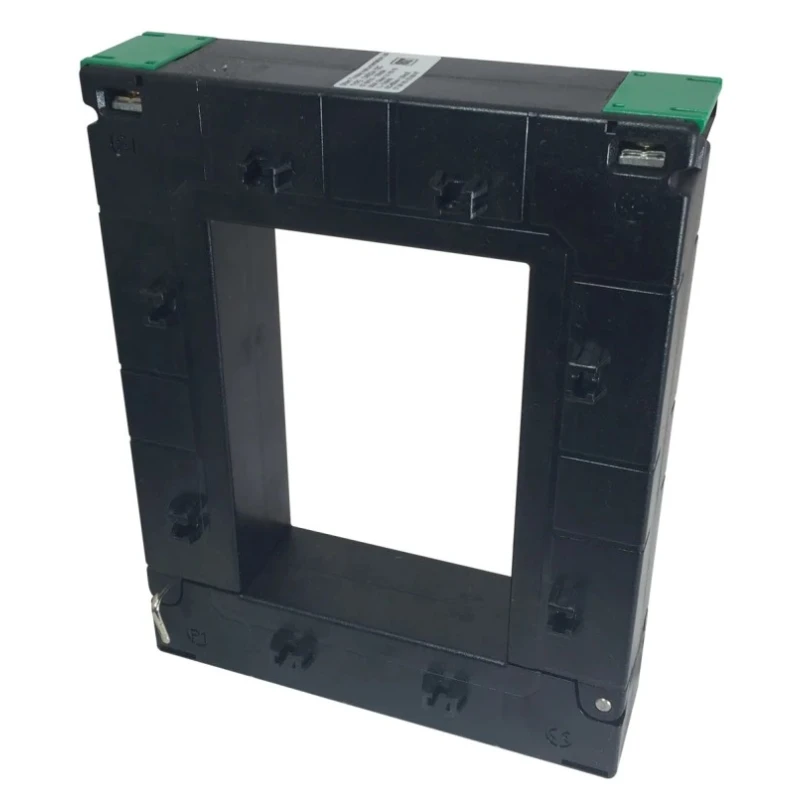

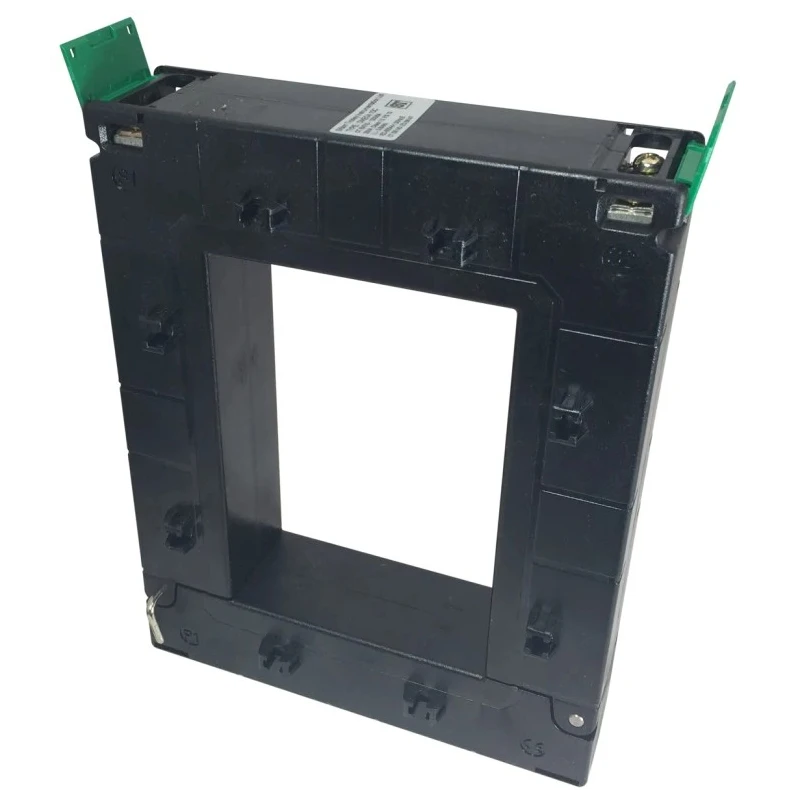

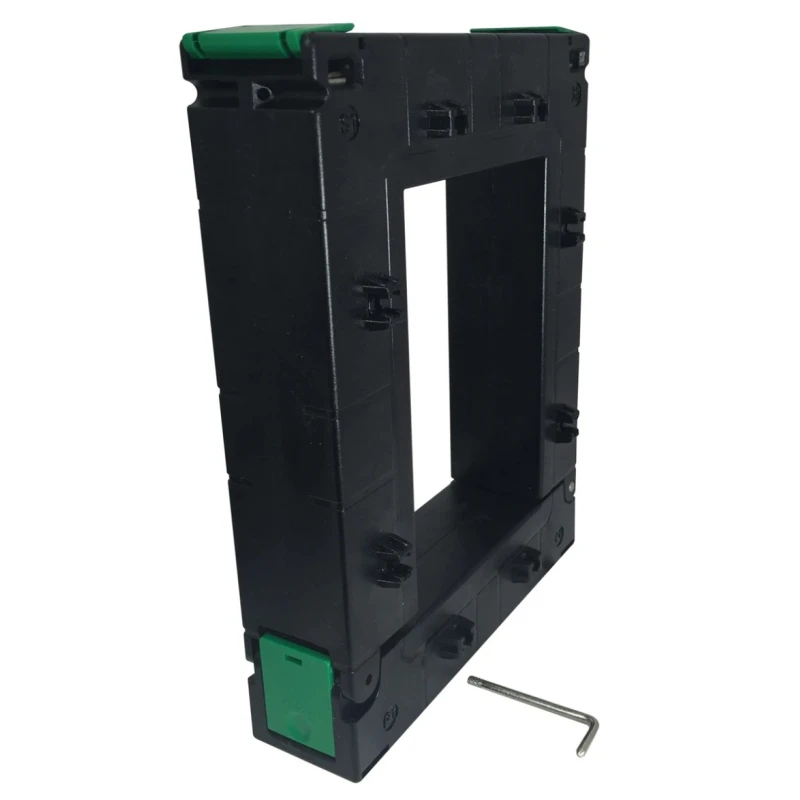

Sifam Tinsley OMEGA 10 Series Surface Mount Current Transformer 5000A Primary, 5A Secondary, 40mm Bore XS03-395115S 000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XS03-395115S 000000 |
| Mount Type | Surface |
| Series | OMEGA 10 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 40mm |
| Secondary current | 5A |
| Insulation Class | E |
| Standards/Approvals | IEC 61869-1, UL 94V-O, EN 60044-1 |
| Primary Current | 5000A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Operates at 5000A primary current with 5A secondary current output.
- Features a 40mm bore diameter for conductor accommodation.
- Meets IEC 61869-1, UL 94V-O, and EN 60044-1 standards for safety and reliability.
- Designed for operating temperatures ranging from 20°C to 70°C.
- Supports frequency range of 50Hz to 60Hz, suitable for standard power systems.
- Constructed with flame retardant grade enclosure for enhanced safety.
- Insulation class E ensures electrical durability and performance.
- Provides efficient installation without breaking the conductor, reducing commissioning time.
Product Description
Sifam Tinsley XS03-395115S 000000 OMEGA 10 Series surface mount current transformer is designed for precise current measurement in industrial and electrical automation applications. It supports a high primary current of 5000A and outputs a secondary current of 5A, accommodating conductors up to 40mm bore diameter. This transformer complies with international standards IEC 61869-1, UL 94V-O, and EN 60044-1 to ensure operational safety and quality.
The transformer is rated for operating temperatures between 20°C and 70°C and supports system frequencies from 50Hz to 60Hz, making it suitable for various power distribution environments. Its flame retardant enclosure and insulation class E provide robust insulation and safety during operation.
This OMEGA 10 series model features a split core design enabling installation without disconnecting conductors, significantly reducing installation and commissioning times. The surface mount type configuration allows flexibility in mounting options, making it ideal for control panels, generator sets, overload protection, and other process control applications.
Operates within system voltage up to 720V max. Offers ratio ratings accommodating different power monitoring needs. Complies fully with IEC and BS standards relevant to current transformers. Flame retardant grade and insulation class ensure operational reliability.
This Current Transformer is manufactured in India and is a reliable solution within the industrial automation and electrical distribution sectors. EnvMart offers this specialized product for monitoring and controlling electrical current effectively in commercial and industrial installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a primary current rating of 5000A.
It provides a secondary current output of 5A.
The bore diameter for this current transformer is 40mm.
It is designed to operate within a temperature range of 20°C to 70°C.
This unit supports a frequency range of 50Hz to 60Hz, suitable for standard power systems.
It complies with IEC 61869-1, UL 94V-O, and EN 60044-1 standards for safety and reliability.
The insulation class of this model is E, ensuring electrical durability and performance.
It features a split core design that allows for installation without disconnecting conductors, reducing commissioning time.
It can operate within a maximum system voltage of up to 720V.
This current transformer is designed for surface mounting, providing flexibility in installation.
This model is manufactured in India.
It is suitable for control panels, generator sets, overload protection, and other process control applications.
