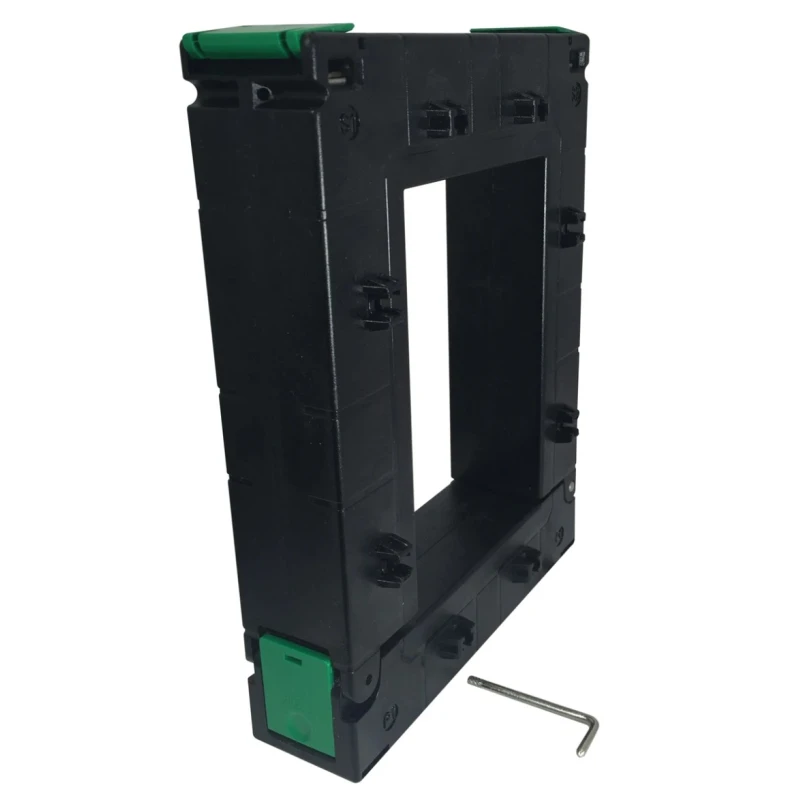

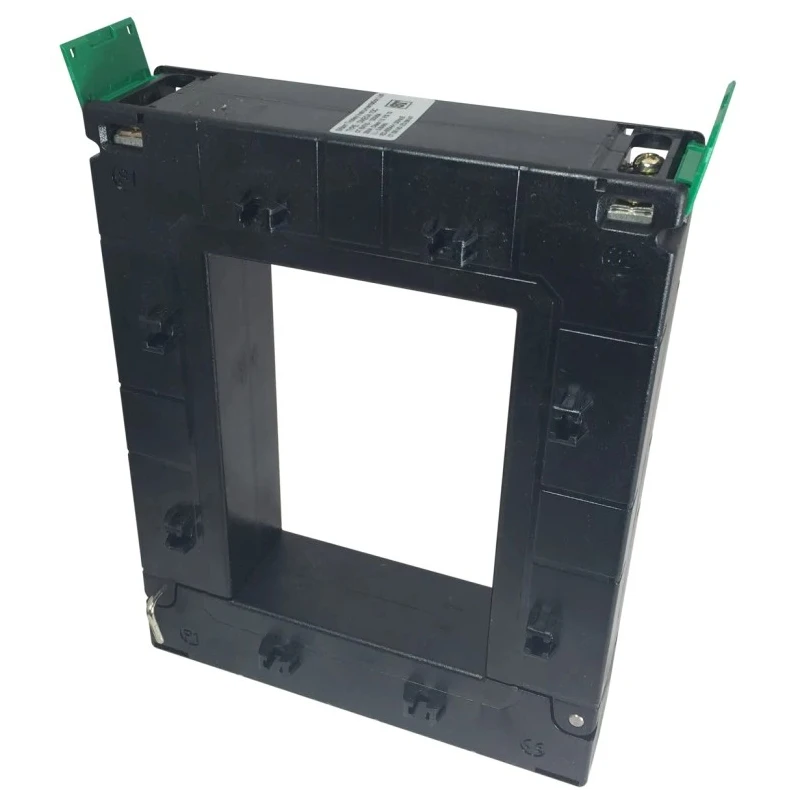

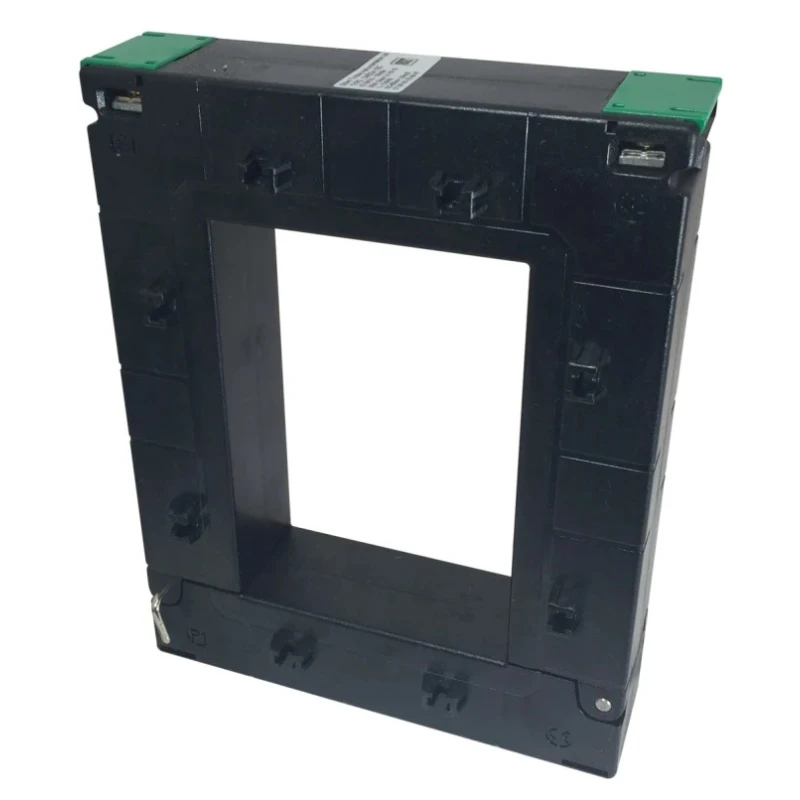

Sifam Tinsley Omega10 Series Current Transformer 800 A 7.5 VA 40mm Bore Omega10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Length | 198mm |
| Model | Omega10 |
| Depth | 40mm |
| Width | 155mm |
| Mount Type | Surface |
| Series | Omega10 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 40mm |
| Secondary current | 5A |
| Terminal type | Wire |
| Insulation Class | E |
| Primary Current | 800A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Split core design allows measurement without conductor interruption.
- Compliant with IEC 60044-1 and BS7626 standards.
- Flame retardant grade enclosure ensures safe operation.
- System voltage rated up to 720 V maximum.
- Accuracy classes available in 0.5, 1, and 2 for precise measurements.
- Surface mount type for easy installation.
- Suitable for distribution systems, control panels, and overload protection.
- Insulation class E for thermal performance.
Product Description
Sifam Tinsley Omega10 series current transformer Omega10 is designed for efficient current measurement without conductor break, rated at 800 A primary current and 7.5 VA power rating with a 40mm bore diameter. This surface-mount split core current transformer provides flame retardant enclosure and complies with international standards including IEC 61010-2, IEC 61869-1, IEC/EN 60044-1, and UL certification to ensure high safety and performance.
The Omega10 series offers system voltage tolerance up to 720 V and accuracy classes 0.5, 1, and 2, making it ideal for use in electrical distribution systems, generator sets, control panels, overload protection devices, and other control gear. Its wire terminal type facilitates straightforward wiring connections and the insulation class E rating assures reliable operation under thermal stress.
With operating temperatures ranging from 20°C to 70°C and frequency range between 50Hz to 60Hz, this current transformer is suitable for industrial, commercial, and laboratory applications. Its compact dimensions of length 198mm, width 155mm, and depth 40mm support versatile mounting availability.
Split core design allows measurement without conductor interruption. Compliant with IEC 60044-1 and BS7626 standards. Flame retardant grade enclosure ensures safe operation. System voltage rated up to 720 V maximum. Accuracy classes available in 0.5, 1, and 2 for precise measurements.
Surface mount type for easy installation. Suitable for distribution systems, control panels, and overload protection. Insulation class E for thermal performance. Operating frequency range from 50Hz to 60Hz. Operating temperature range from 20°C to 70°C.
This product is manufactured in India and is categorized under current transformers at EnvMart. Browse more products from the Sifam Tinsley brand and Current Transformer series to find suitable industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 800 A.
It has a power rating of 7.5 VA.
The bore diameter is 40 mm.
The accuracy classes available are 0.5, 1, and 2.
The maximum operating temperature is 70°C.
It operates within a frequency range of 50 Hz to 60 Hz.
This model features a surface mount type for easy installation.
It complies with IEC 60044-1 and BS7626 standards.
The insulation class is E.
The dimensions are 198 mm in length, 155 mm in width, and 40 mm in depth.
It has a wire terminal type for straightforward wiring connections.
It is manufactured in India.
