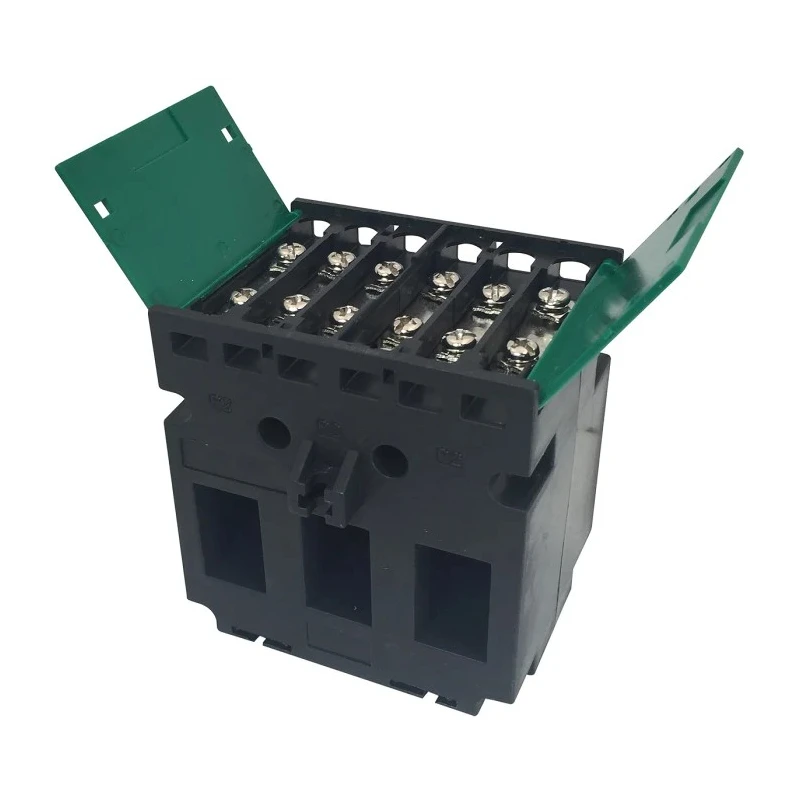

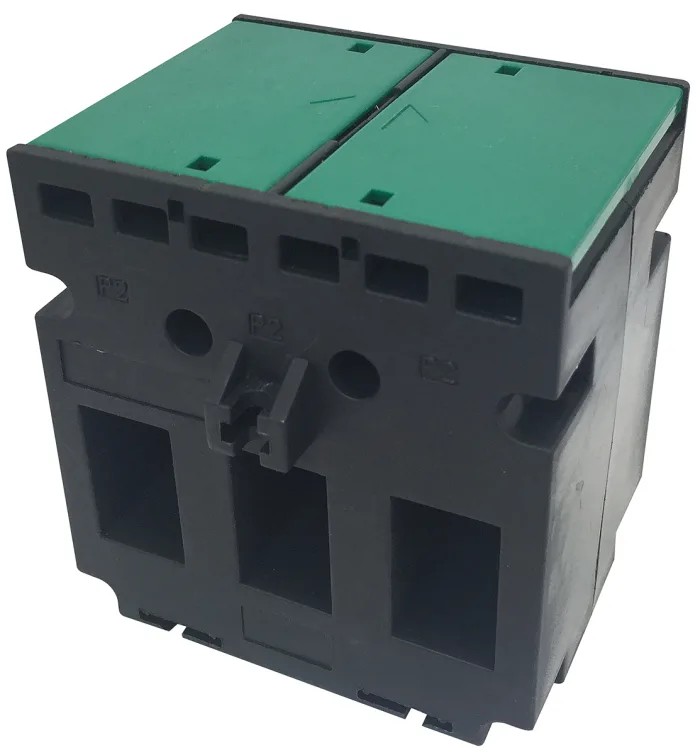

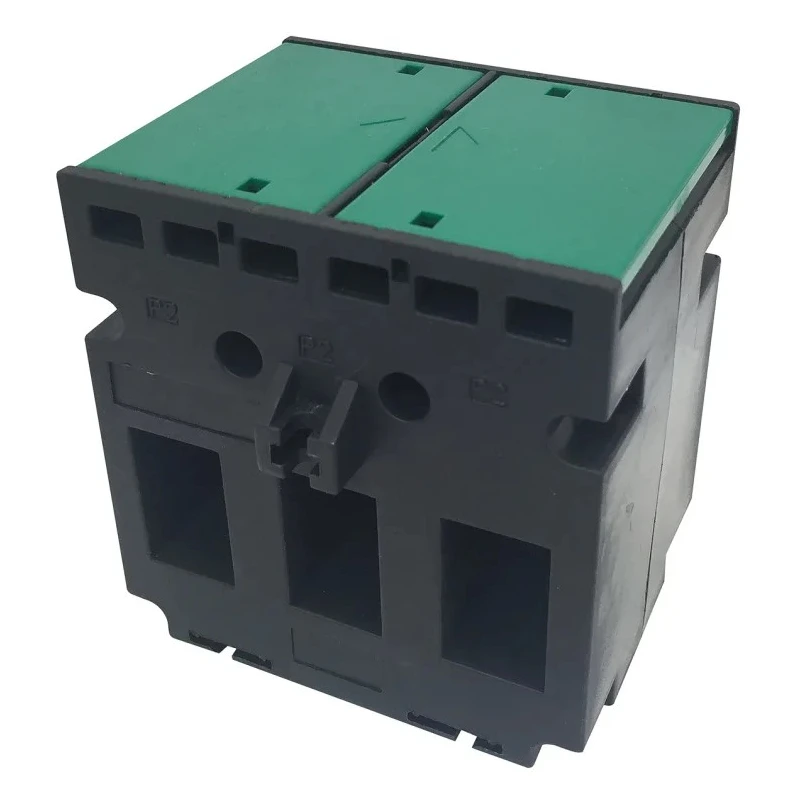

Sifam Tinsley OMEGA Series Current Transformer 60 A 31mm Bore XN25-145011S000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XN25-145011S000000 |
| Gross Weight | 650g |
| Width | 141mm |
| Mount Type | DIN Rail, Base |
| Series | OMEGA |
| Bore Diameter | 31mm |
| Secondary current | 5A |
| Terminal type | Screw |
| Primary Current | 60A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| 3 sizes available | 15 x 25 mm, 21 x 25 mm & 31 x 31 mm |
Key Features
- Secondary current rated at 5 A for system integration.
- Primary current capacity of 60 Amps within 50-60 Hz operating frequency.
- Bore diameter measures 31 mm to accommodate conductor size.

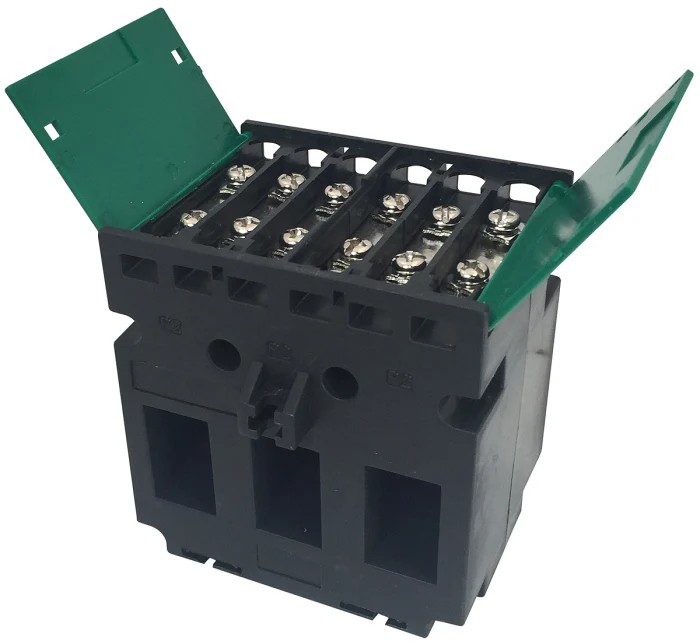

- Features wire sealable screw terminal type for secure connections.
- Self-extinguishing VO-class casing provides enhanced safety.
- System voltage rating up to 720 V AC at 50-60 Hz frequency.
- Compliance with IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards.
- Suitable for industrial, electrical automation, and process control applications.
Product Description
Sifam Tinsley XN25-145011S000000 OMEGA Series Current Transformer is a precisely engineered device designed for electrical systems requiring a primary current rating of 60 A and a 5 A secondary output. With a bore diameter of 31 mm, this current transformer fits efficiently for conductors within industrial electrical panels and is optimized to install directly next to moulded case circuit breakers.
The current transformer features a wire sealable screw terminal design ensuring robust and secure electrical connectivity. It is housed within a self-extinguishing casing rated VO according to UL-94, enhancing safety in operation. The unit supports system voltages up to 720 V AC, functioning reliably in frequency ranges from 50 to 60 Hz.
The product dimensions include a width of 141 mm, facilitating a compact footprint for installation in space-constrained industrial automation and electrical control gear systems. It complies with internationally recognized standards including IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2, ensuring dependable performance and safety.

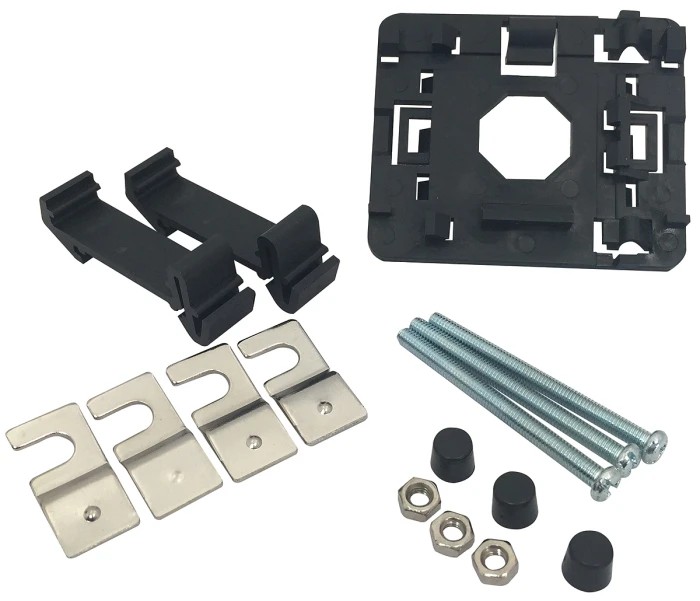

The Sifam Tinsley OMEGA Series line covers a variety of current ranges up to 630 A, with multiple bore sizes available including 15 x 25 mm, 21 x 25 mm, and 31 x 31 mm, offering flexibility for different installation requirements. Mounting options include DIN Rail, base, and busbar selections to suit diverse electrical installation needs.
Secondary current rated at 5 A for standard measurement. Primary current capacity of 60 Amps for medium current electrical distribution. Screw terminal type allowing wire sealing for control and security. UL-94 VO rated self-extinguishing casing for enhanced safety.
System voltage capability of 720 V AC with 50-60 Hz frequency range. Bore diameter of 31 mm suitable for standard conductor sizes. Compact width of 141 mm for efficient panel space utilization. Standards compliant for international electrical applications.
Ideal for industrial, electrical automation, and process control environments.
This current transformer supports precise current measurements critical for energy monitoring, protection, and metering in electrical distribution and industrial applications. Its robust design ensures durability and reliable operation in demanding environments.
Explore additional Current Transformer solutions within the Sifam Tinsley OMEGA Series for a comprehensive range of electrical measurement devices available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current capacity of this model is 60 Amps.
It has a secondary current rating of 5 A for system integration.
The bore diameter measures 31 mm, accommodating standard conductor sizes.
This unit operates within a frequency range of 50 to 60 Hz.
It supports system voltages up to 720 V AC.
It features a wire sealable screw terminal type for secure connections.
Mounting options include DIN Rail and base configurations.
The model has a width of 141 mm and a gross weight of 650 g.
It complies with IEC/EN 60044-1, IEC 61869-1, and IEC 61010-2 standards.
It is suitable for industrial, electrical automation, and process control applications.
Yes, the series includes multiple bore sizes: 15 x 25 mm, 21 x 25 mm, and 31 x 31 mm.
The country of origin for this model is India.
