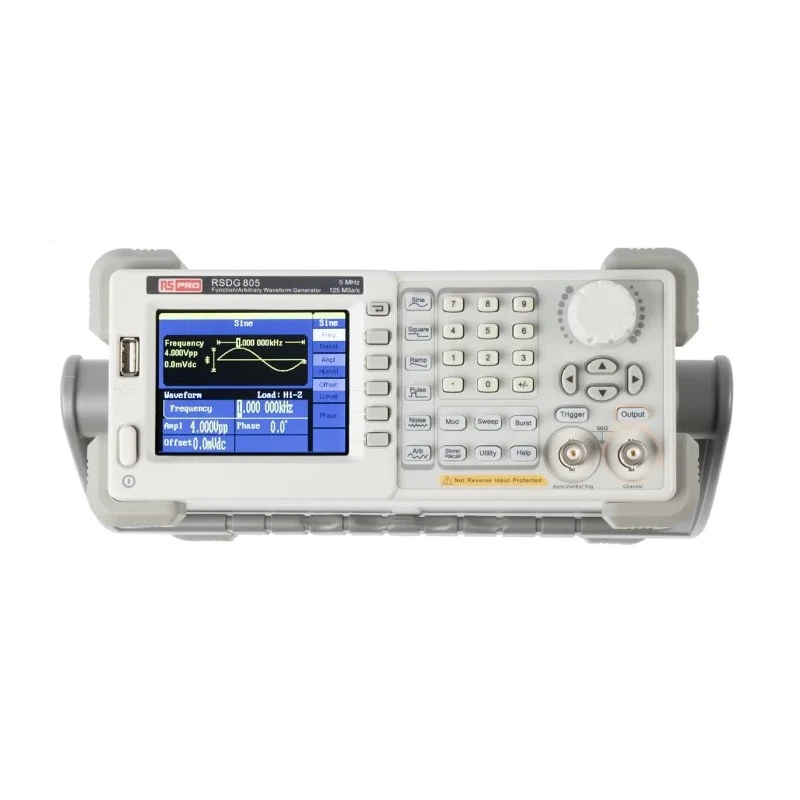

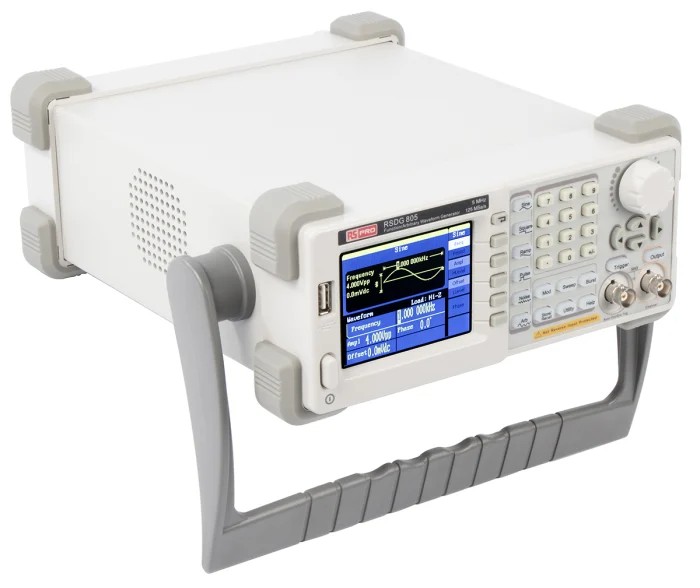

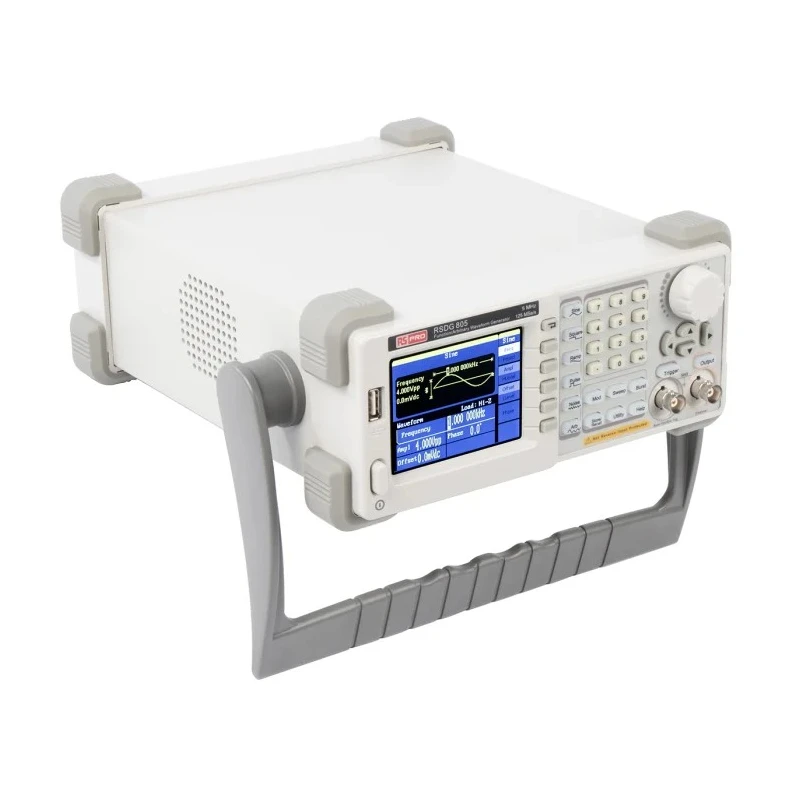

RS PRO Arbitrary Waveform Generator 5 MHz Max, 0 MHz Min, 125 MSa/s Sample Rate, 14 bit Resolution 123-6458

RS PRO 123-6458 Arbitrary Waveform Generator 5 MHz Max 0 MHz Min is a precision instrument designed for generating a wide array of waveform signals. Operating with a high sample rate of 125 MSa/s and a vertical resolution of 14 bits, it provides accurate waveform outputs for testing and simulation applications. The device employs DDS technology, delivering single-channel output with low jitter and consistent rise/fall times, facilitated by EasyPulse technology. This results in reliable performance even at low duty cycle settings, making it an ideal tool for detailed pulse width and transition time adjustment.

Equipped with a TFT LCD display and keyboard data entry, the model supports USB device and host interfaces enabling remote control and arbitrary waveform editing through supplied software. Its output waveform repertoire includes sine, square, ramp, pulse, noise, and a selection of 46 arbitrary waveforms, complementing its comprehensive modulation capabilities such as AM, FM, PM, FSK, ASK, PWM, sweep, and burst modes.

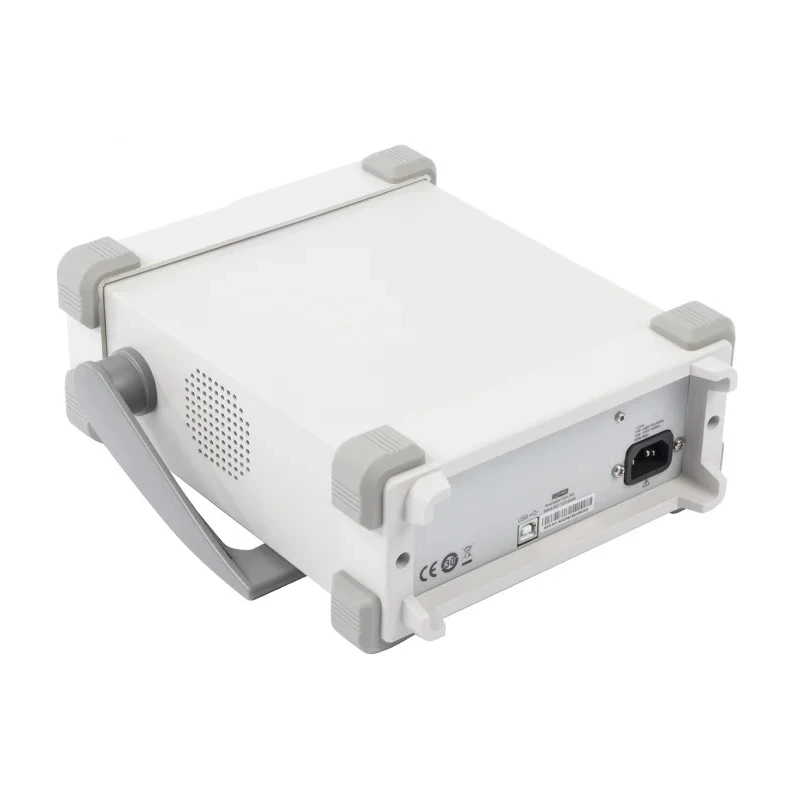

The compact enclosure measures 229 mm in length, 105 mm in height, and 281 mm in width, with a weight of 3.4 kg, suitable for laboratory and industrial test benches. It is engineered to operate within a temperature range of 0°C to 40°C with a waveform memory of 16kpts per channel.

Common applications of this arbitrary waveform generator include analog sensor simulation, circuit function testing, integrated circuit (IC) validation, research and development laboratories, and training environments.

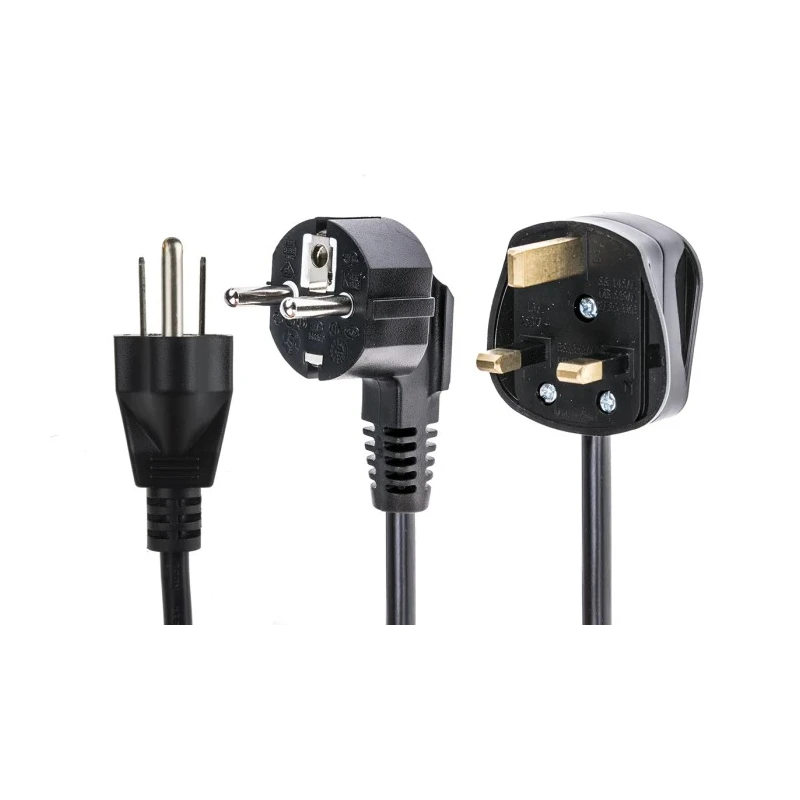

The product package contains a quick start guide, a CD including the EasyWave computer software system for waveform editing, a power cord, and a USB cable for immediate use. Utilizes DDS technology with single-channel output for versatile waveform generation.

Supports sine, square, ramp, pulse, noise, and 46 arbitrary waveform types. Offers full modulation functions including AM, FM, PM, FSK, ASK, PWM, Sweep, and Burst. Features TFT LCD display with keyboard data entry and USB device/host interfaces.

Compact dimensions of 229 x 105 x 281 mm and weighs 3.4 kg. EasyPulse technology ensures low jitter and stable rising/falling edges across frequencies. Suitable for analog sensor simulation, circuit function testing, IC testing, R&D, and training.

Includes quick start guide, software CD, power cord, and USB cable for immediate setup. Browse through EnvMart’s extensive range of industrial measuring and testing instruments for high-performance, reliable waveform generators and related equipment.
