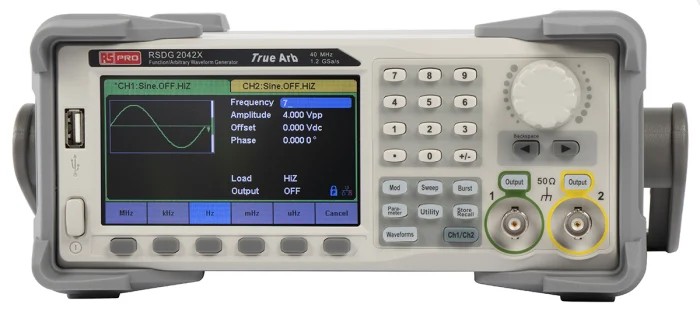

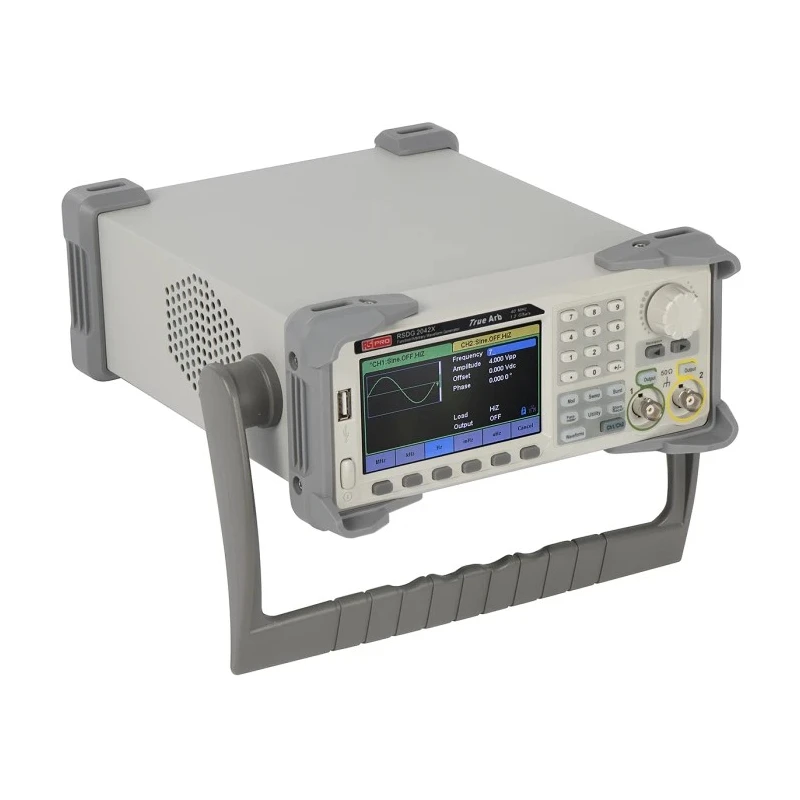

RS PRO Arbitrary Waveform Generator 40 MHz Max, 2-Channel, 1 Hz Min 123-6460

RS PRO 123-6460 is a high-performance arbitrary waveform generator designed to deliver precise and versatile signal generation essential for electronics testing and industrial applications. Operating up to a maximum frequency of 40 MHz over two independent channels, it caters well to complex waveform generation and function testing.

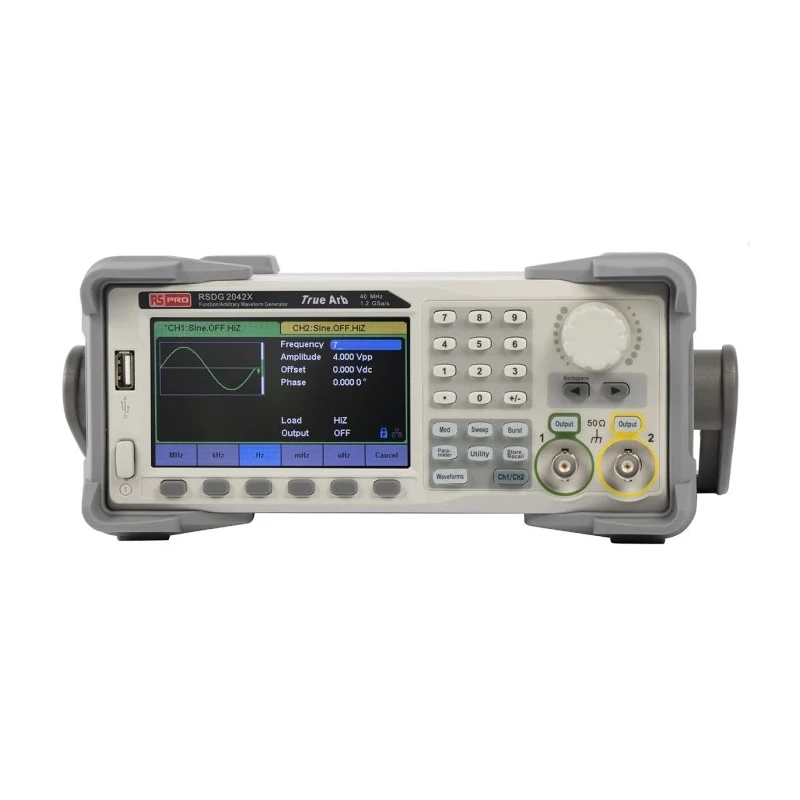

This model incorporates advanced TrueArb and EasyPulse technologies that enhance signal fidelity by generating low jitter arbitrary and pulse waveforms with remarkable accuracy. It supports a range of modulation types including AM, FM, PM, and others, enabling comprehensive waveform manipulation. The 4.3 inch LCD touch screen interface simplifies user interaction and configuration settings.

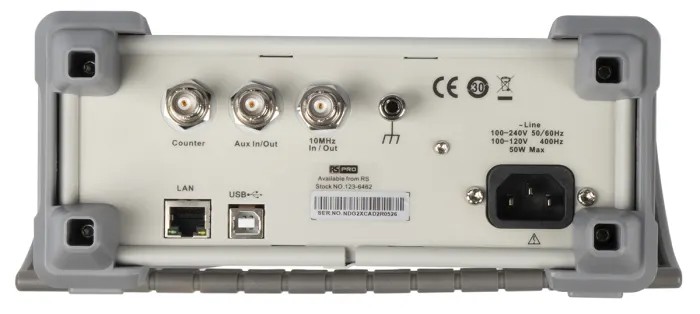

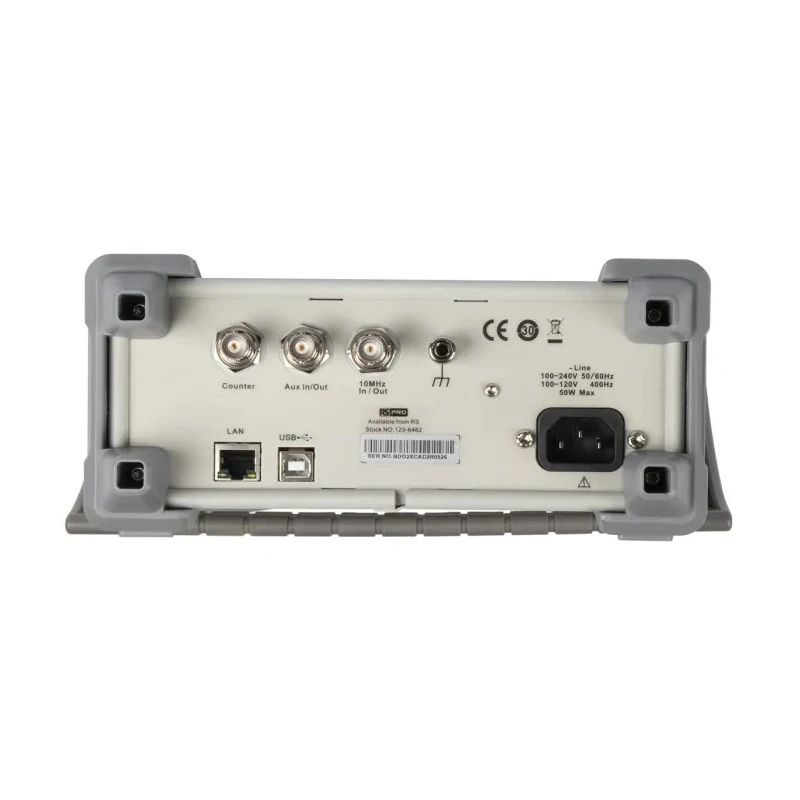

With a high sampling rate of 1.2 GSa/s and 16-bit vertical resolution, this generator preserves waveform detail and quality. The device supports a wide frequency range starting from 1 Hz, and its 20 V peak-to-peak output amplitude accommodates various testing scenarios. Connectivity options include USB device and host ports, LAN interface conforming to VXI-11 standards, ensuring integration into diverse test setups.

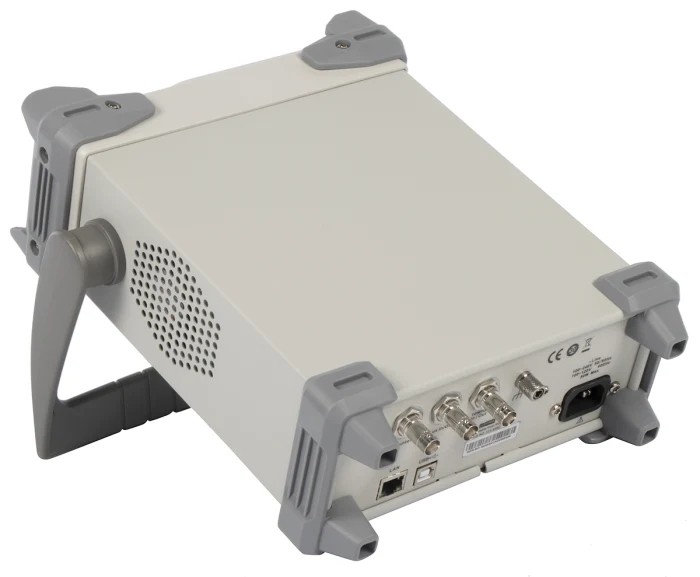

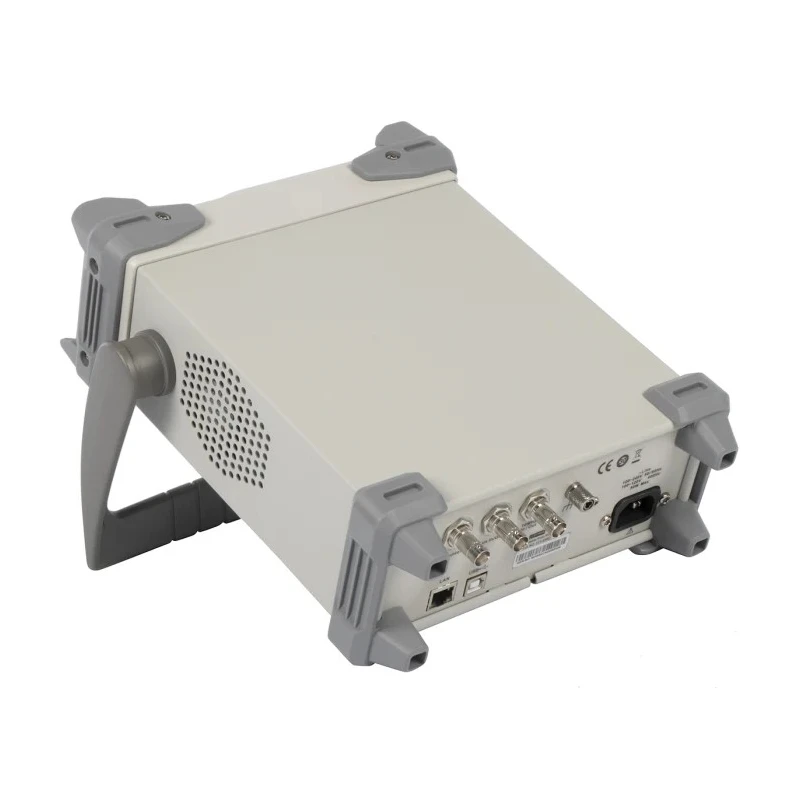

Physically, the unit measures 260.3 mm in length, 295.7 mm in width, and 107.2 mm in height, weighing 3.4 kg, making it suitable for laboratory or industrial bench environments. It operates reliably within a 0°C to 40°C ambient temperature range, conforming to RoHS standards.

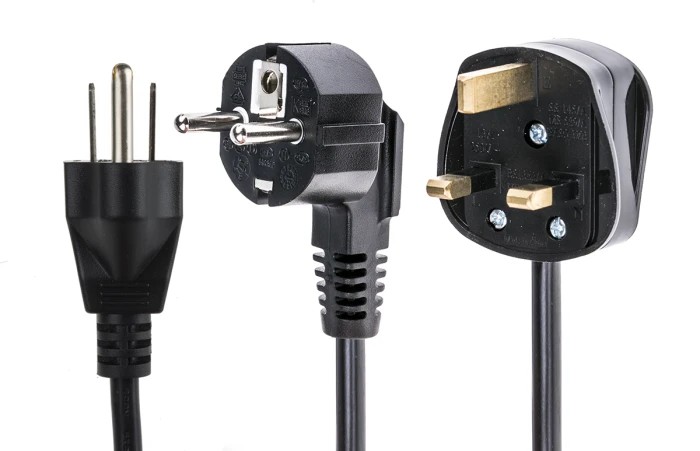

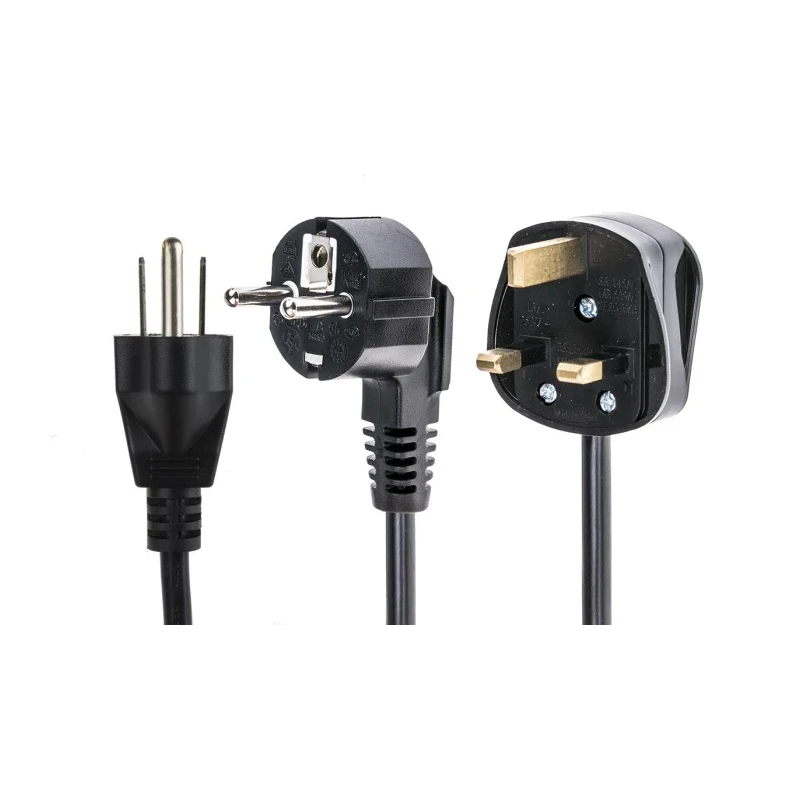

The package includes a quick start guide, power cord, calibration certificate, BNC coaxial cable, and a CD containing the datasheet and application software, ensuring the user is fully equipped for immediate deployment.

Equipped with dual channels supporting maximum frequency of 40 MHz. High fidelity output with 80 dB dynamic range for accurate waveform generation. Innovative TrueArb and EasyPulse technologies for superior signal integrity.

Wide range of modulation capabilities including AM, FM, PM, PSK, and PWM. Comprehensive connectivity through USB, USB Host, and LAN interfaces. Large 4.3 inch touch screen LCD for easy and intuitive control. Compact and lightweight design suitable for laboratory and industrial usage.

Includes certification, software, and accessories for ready operation.

Ideal for industrial, laboratory, manufacturing, and electronic test environments. Explore more RS PRO measuring instruments and waveform generators on EnvMart for reliable test and measurement solutions.
