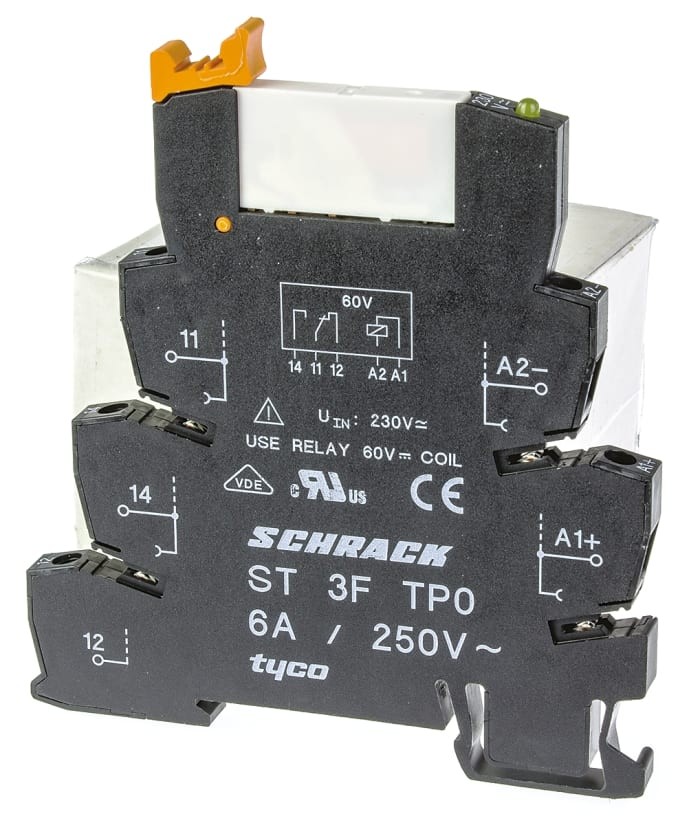

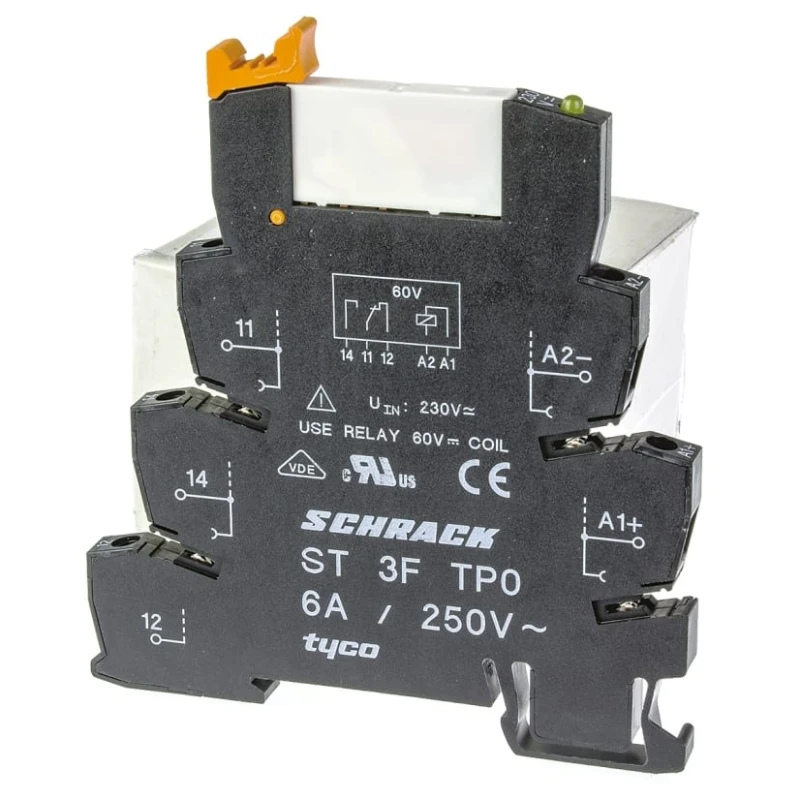

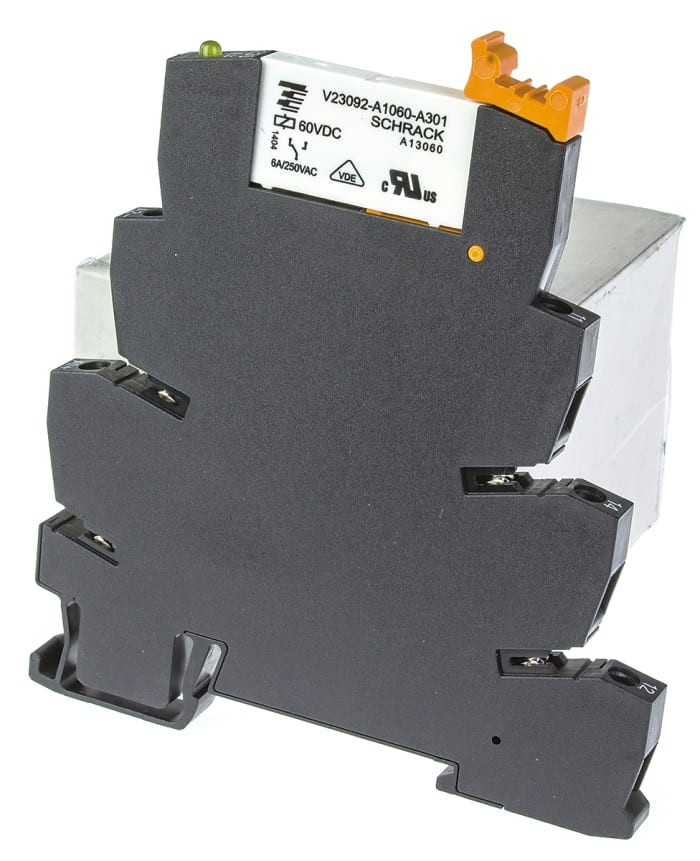

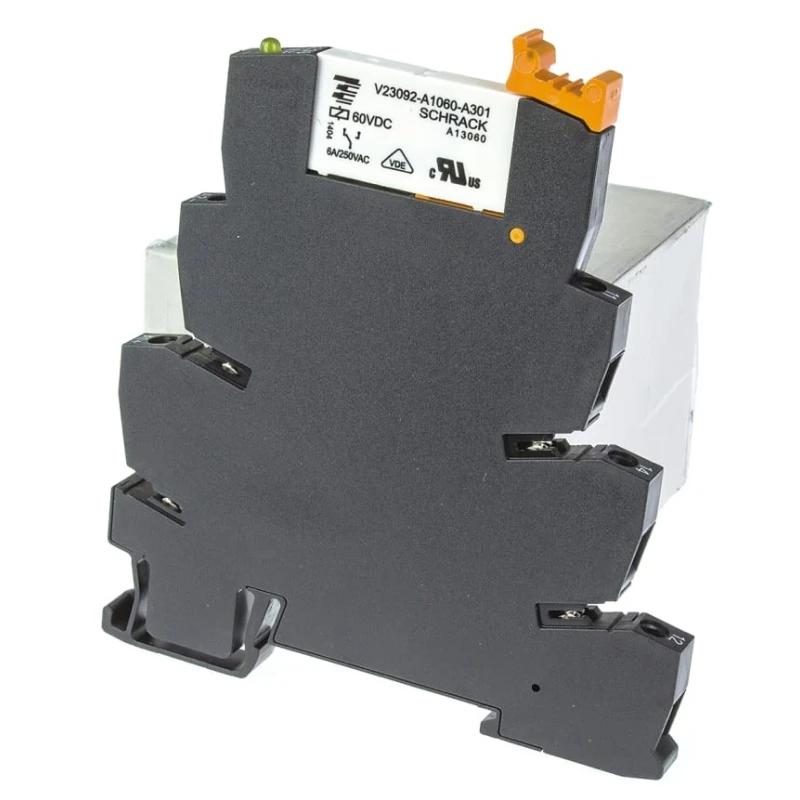

TE Connectivity SNR Series Electromechanical Interface Relay DIN Rail Mount 230V AC Coil 6A SPDT ST3P3TP0 3-1416100-4
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 94mm |
| Length | 80mm |
| Model | ST3P3TP0 3-1416100-4 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | REACH, RoHS |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
Key Features
- Equipped with a 230V AC coil for secure operation.
- Single Pole Double Throw (SPDT) contact configuration enhances switching versatility.
- Designed for DIN Rail mounting for simplified installation.
- Rated for switching AC voltage up to 400V.
- Operates reliably between -40°C and 55°C ambient temperatures.
- Contact material is durable silver alloy ensuring longevity and conductivity.
- Slim line package width of 6.2mm increases packing density on DIN rails.
- Includes a screw-type terminal for secure connections.
Product Description
TE Connectivity ST3P3TP0 3-1416100-4 is an electromechanical Interface Relay designed for industrial and automation applications requiring reliable switching capabilities. This relay features a DIN Rail mount form factor with a slim 6.2mm wide package, optimizing space utilization on DIN Rail assemblies.
The relay coil operates at 230V AC, compatible with standard industrial control voltages, ensuring dependable energization and switching. The contact configuration is Single Pole Double Throw (SPDT), capable of switching AC voltages up to 400V and currents up to 6A, suitable for controlling diverse loads.
Contacts are made of a silver alloy for excellent electrical conductivity and mechanical durability. The relay is engineered to operate within a wide ambient temperature range from -40°C to 55°C, allowing usage in harsh industrial environments.
Additional features include a screw terminal type for secure and robust wiring connections and coil-contact insulation rated at 4kV which ensures high dielectric strength and safety compliance. The relay package consists of a DIN rail socket and relay module, streamlining installation processes.
This product conforms to international environmental and safety standards including REACH and RoHS, underlining its compliance with regulatory requirements.
Manufactured in the Czech Republic, the TE Connectivity SNR Series relay is ideal for use in electrical control panels, automation systems, industrial machinery, and signal conditioning applications.
Equipped with a 230V AC coil for secure operation. Single Pole Double Throw (SPDT) contact configuration enhances switching versatility. Designed for DIN Rail mounting for simplified installation. Rated for switching AC voltage up to 400V.
Operates reliably between -40°C and 55°C ambient temperatures. Contact material is durable silver alloy ensuring longevity and conductivity. Slim line package width of 6.2mm increases packing density on DIN rails. Includes a screw-type terminal for secure connections.
High dielectric strength coil-contact insulation of 4kV for safety. Manufactured in Czech Republic with compliance to REACH and RoHS standards. Explore more relays and interface solutions from TE Connectivity on EnvMart for diverse industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 230V AC, making it compatible with standard industrial control voltages.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
It is rated for switching AC voltages up to 400V, suitable for controlling various loads in industrial applications.
The relay operates reliably within a temperature range of -40°C to 55°C, making it suitable for harsh industrial environments.
This unit is rated for a maximum switching current of 6A, enabling it to control diverse electrical loads.
It includes a screw-type terminal for secure and robust wiring connections, ensuring reliable operation.
The relay has a width of 6.2mm, a height of 94mm, and a length of 80mm, allowing for efficient space utilization on DIN rails.
The contacts are made of a durable silver alloy, which ensures excellent electrical conductivity and mechanical durability.
This model is designed for DIN Rail mounting, simplifying the installation process in electrical control panels.
It conforms to international environmental and safety standards, including REACH and RoHS, ensuring regulatory compliance.
The TE Connectivity SNR Series relay is manufactured in the Czech Republic, ensuring adherence to quality standards.
The coil-contact insulation is rated at 4kV, providing high dielectric strength for safety in operation.
