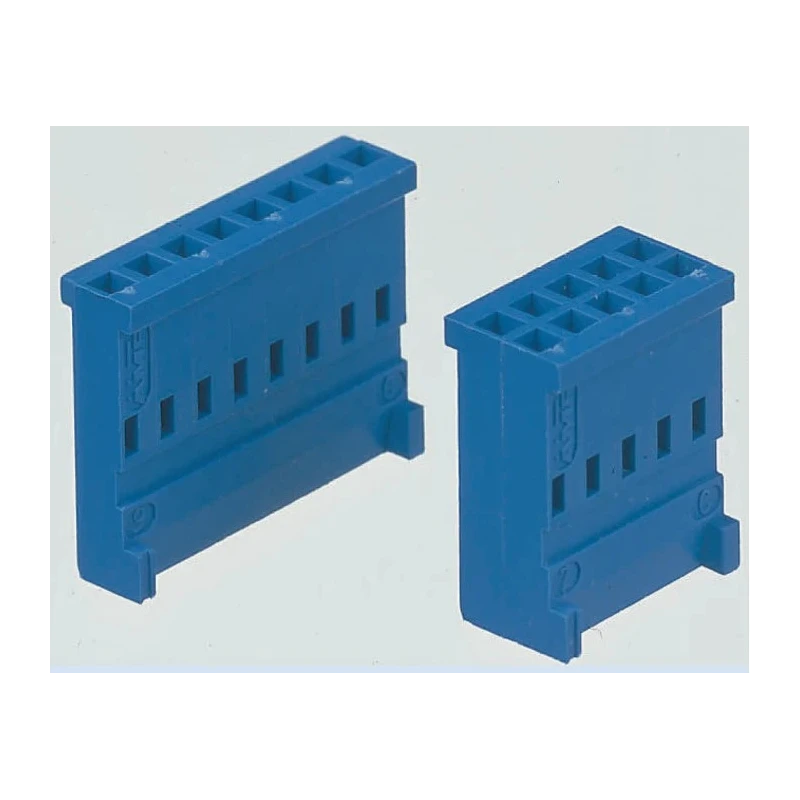

TE Connectivity AMPMODU HE13/HE14 Female Connector Housing 2.54 mm Pitch 24 Way 2 Row Straight 1-281839-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 30.48mm |
| Width | 7.62mm |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Series | AMPMODU HE13/HE14 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | Modular Headers and Plug to IEC 60603-8 Series |
| Number of Contacts | 24 |
| Connector Gender | Female |
Key Features
- The connector housing is designed for modular headers and plugs conforming to IEC 60603-8 series standards.
- It has a straight orientation suitable for cable mounting applications.
- Constructed from fibreglass reinforced polyethylene terephthalate for durability.
- Includes crimp socket shells that lock securely with shrouded headers.
- An access window allows easy removal of terminals when required.
- The AMPMODU HE14 interconnect system is widely used in industrial automation and control applications.
- The housing dimensions are 30.48 mm length by 7.62 mm width, providing compact size for PCB integration.
Product Description
TE Connectivity 1-281839-2 AMPMODU HE13/HE14 Female Connector Housing is a 24-way, 2-row straight cable mount connector with a 2.54 mm pitch constructed from fibreglass reinforced polyethylene terephthalate.
This connector housing is part of the AMPMODU HE14 interconnect system, which serves as a signal standard in automation and control industries by offering reliable and economical connections.
Designed specifically to accept crimp terminals and mate securely with IEC 60603-8 series modular headers and plugs, the housing features a locking mechanism for shrouded headers and an access window for terminal removal.
Its compact footprint, measuring 30.48 mm in length and 7.62 mm in width, provides efficient PCB space utilization. This female connector housing is ideal for use in industrial, manufacturing, automation, and electronic assembly applications requiring robust cable to PCB connections.
The connector includes 24 contact positions arranged in 2 rows for complex wiring needs. Durable housing material ensures resistance to environmental stresses in industrial settings. Straight orientation allows straightforward cable routing and assembly.
Compatible with modular headers and IEC-compliant plugs enhancing system versatility. Access window improves maintenance efficiency by enabling terminal removal without full disassembly. This connector ensures secure, reliable signal transmission in critical control equipment.
For various technical design needs, downloadable 3D models and schematics are available, supporting seamless integration into electronic systems. EnvMart provides this TE Connectivity Connector Housing as a trusted industrial component for high-quality electrical connections with assured fit and function.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm.
It supports 24 contacts arranged in 2 rows.
The connector housing has a straight orientation, suitable for cable mounting applications.
The dimensions are 30.48 mm in length and 7.62 mm in width.
It is constructed from fibreglass reinforced polyethylene terephthalate.
This housing is designed for use with modular headers and plugs that conform to IEC 60603-8 series standards.
The mounting type is cable, allowing for straightforward assembly.
Yes, it includes an access window that allows for easy removal of terminals when required.
It belongs to the AMPMODU HE13/HE14 series.
It is suitable for industrial, manufacturing, automation, and electronic assembly applications requiring robust cable to PCB connections.
The connector gender is female.
The country of origin for this connector housing is India.
