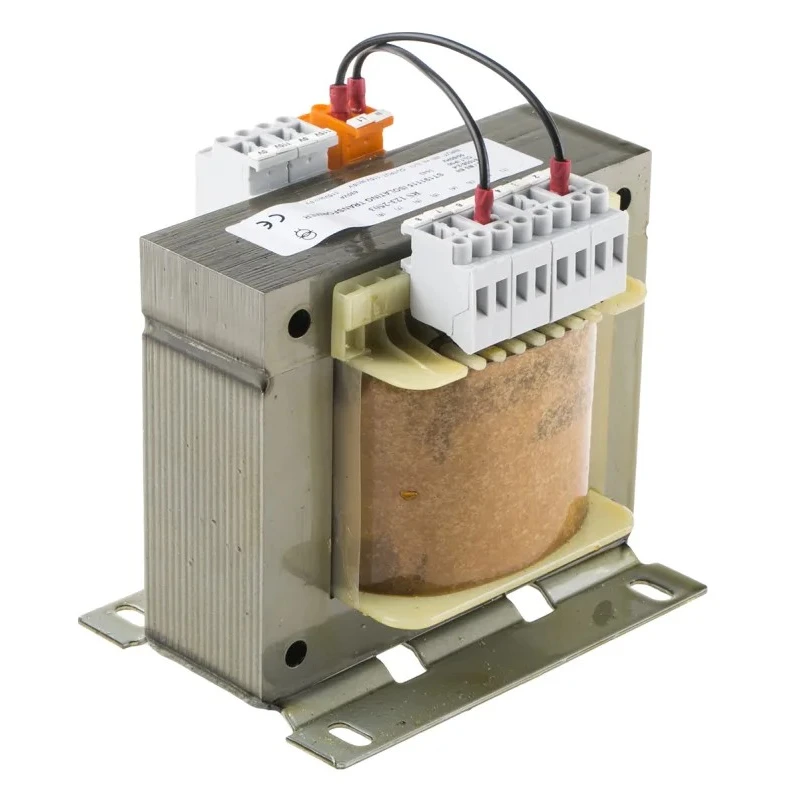

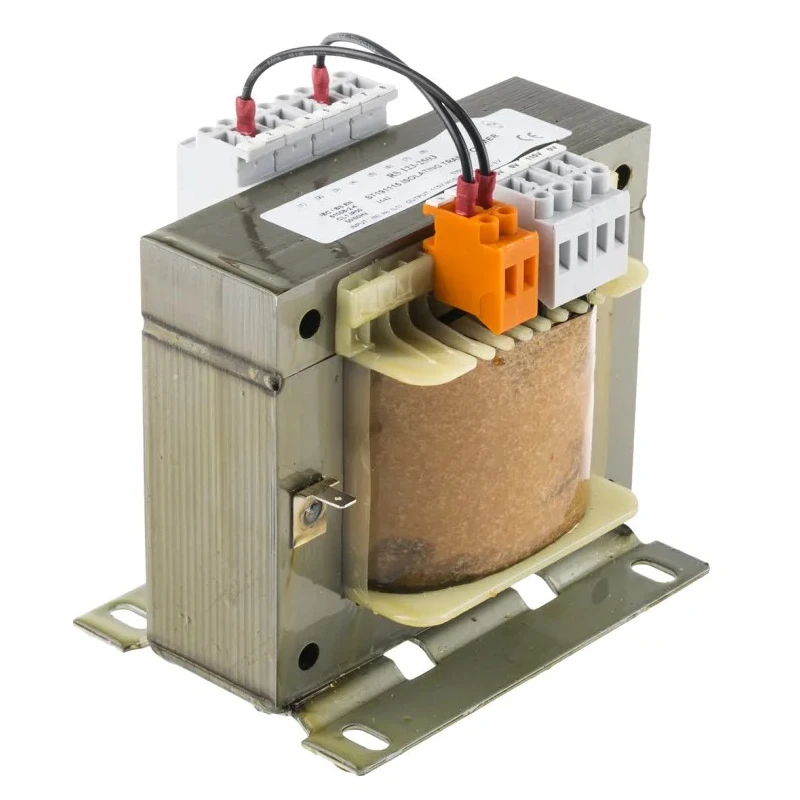

RS PRO 2 Output 630 VA Chassis Mount Transformer, 2 x 115 V AC, IEC 61558-2-4 123-2503

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 630 VA Chassis Mount Transformer, 2 x 115 V AC, IEC 61558-2-4 123-2503

Name: RS PRO 2 Output 630 VA Chassis Mount Transformer, 2 x 115 V AC, IEC 61558-2-4 123-2503
Brand: RS PRO
SKU: 191873
Price: 467.37 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	150mm
Model	123-2503
Depth	158mm
Gross Weight	7.9kg
Width	112mm
Series	RS PRO
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Winding Type	Primary Winding
Standards/Approvals	IEC 61558-2-4
Fixing Hole Diameter	15mm
Primary Voltage	208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac
Secondary Voltage	2 x 115 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Block 2 Output 630 VA Chassis Mount Transformer, 2 x 115 V ac, UL, VDE, cULBrand	Block

Key Features

Provides dual 115 V AC outputs for versatile usage.
Supports a broad range of primary voltages from 208 V AC to 600 V AC.
Equipped with mounting holes of 15 mm diameter for secure chassis installation.
Operates reliably in temperatures from -30°C to 70°C.
Constructed with varnish impregnated laminations for low noise and long life.
Meets IEC 61558-2-4 standards ensuring compliance with international safety and performance.
Includes a fitted earth terminal and multi-tapped primary winding for flexible installation.
Compact dimensions of 150 mm length, 112 mm width, and 158 mm depth facilitate easy mounting.

Product Description

RS PRO 123-2503 2 Output 630 VA Chassis Mount Transformer is engineered for universal input voltages, featuring two 115 V AC outputs. It is built for high efficiency and low regulation, suitable for a wide range of AC applications within industrial, electronic, and electrical environments.

This single phase chassis mount transformer supports a wide input voltage range from 208 V AC up to 600 V AC, accommodating various supply systems. Its varnish impregnated laminations help reduce noise, contributing to stable and quiet operations.

Highlighted by its compact size (150 mm length x 112 mm width x 158 mm depth) and weight of 7.9 kg, it is easy to install on chassis using mounting holes of 15 mm diameter. The transformer operates reliably in environments from -30°C to 70°C, ensuring durability in demanding conditions.

It features primary windings with multiple taps and a fitted earth terminal for safe and flexible connections. The product complies fully with IEC 61558-2-4 standards, reflecting high reliability and safety certifications.

High efficiency transformer design for reduced energy loss. Low regulation to provide consistent voltage outputs. Varnish impregnated laminations for noise reduction. Flexible mounting options with chassis mount fixing holes.

Wide operating temperature range guarantees versatility. Multi-tapped primary winding for versatile input voltage handling. Fitted earth terminal enhances safety compliance. Compact dimensions for easy installation in tight spaces.

Robust construction suitable for industrial and electronic use cases. Compliance with IEC 61558-2-4 standards ensures quality and safety assurance.

This Chassis Mount Transformer is ideal for applications in power supplies, electrical machinery, control panels, and various general purpose AC voltage transformation needs. It supports industrial, laboratory, construction, and manufacturing environments requiring reliable voltage regulation and isolation.
