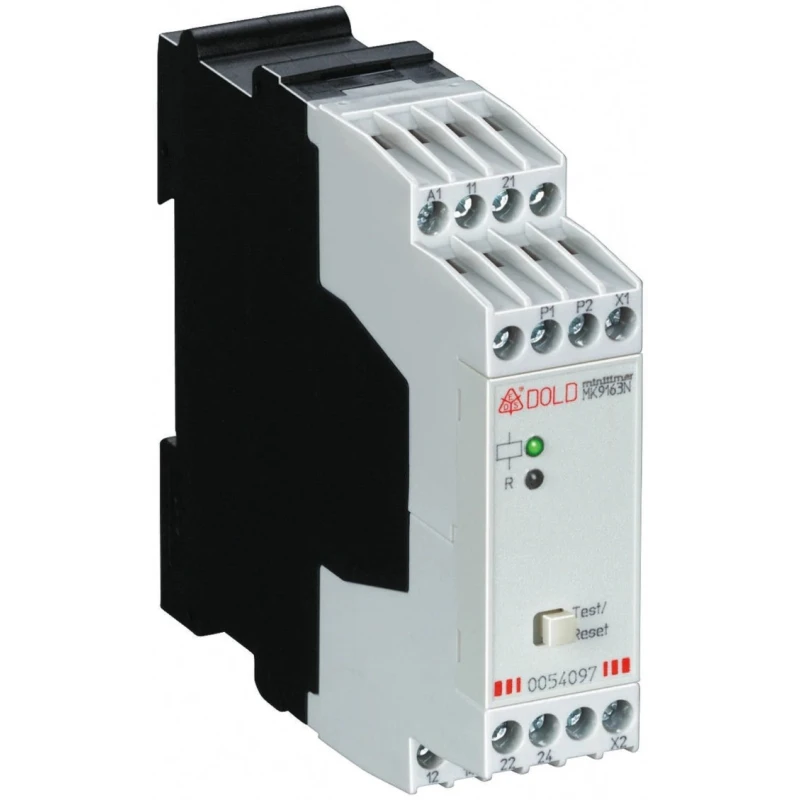

Dold Monitoring Relay DPDT DIN Rail Mount 24 V dc Motor Control MK9163N.12/100 AC/DC24V

Dold MK9163N.12/100 AC/DC24V Monitoring Relay is a robust DPDT relay designed for motor control applications. It operates on a 24 V dc supply and is suitable for DIN Rail mounting, making it ideal for compact control panels and industrial environments.

This relay is specifically engineered for thermistor motor protection with one input capable of monitoring 1 to 6 thermistors. It uses a closed circuit current principle, ensuring the output relay is not activated during fault conditions. The relay is equipped with 2 changeover output contacts providing versatile switching options.

LED indicators provide clear visual feedback on auxiliary voltage presence and contact position, aiding in quick status assessments. Additionally, it features error memory and a reset function, which improves fault diagnosis and recovery time in industrial settings.

With a compact width of 22.5 mm, this relay saves panel space and fits DIN 46228 standards. It is rated for IP20 and IP40 ingress protection, suitable for environments where moderate dust and contact protection is needed. The relay is capable of operating within a wide temperature range from -60°C to 60°C, ensuring reliable performance in harsh conditions.

The MK9163N series complies with numerous international standards including EN 60947-5-1, EN 60947-8, IEC/EN 60068, and UL Subject 94, ensuring global usability and safety. It is also available in versions with ATEX approvals for hazardous environments.

Manufactured in Germany, this relay offers high quality and precise control for industrial motor protection and automation processes. It is well suited for industrial, manufacturing, electrical automation, and HVAC applications.

Equipped with 2 changeover contacts ensuring reliable switching. Operates with thermistor motor protection for temperature and sensor circuit monitoring. Includes LED indicators for auxiliary voltage and contact position clarity.

Features error memory and reset functionality enhancing diagnostics. Compact 22.5 mm width for space-saving installation. Rated to IP20 and IP40 protection standards. Operating temperature range from -60°C to 60°C ensures wide usability.

Complies with multiple international standards and safety directives. Manufactured in Germany for quality and reliability. Explore comprehensive ranges of Monitoring Relays and related automation components at EnvMart, where quality industrial electrical products meet precise engineering.
