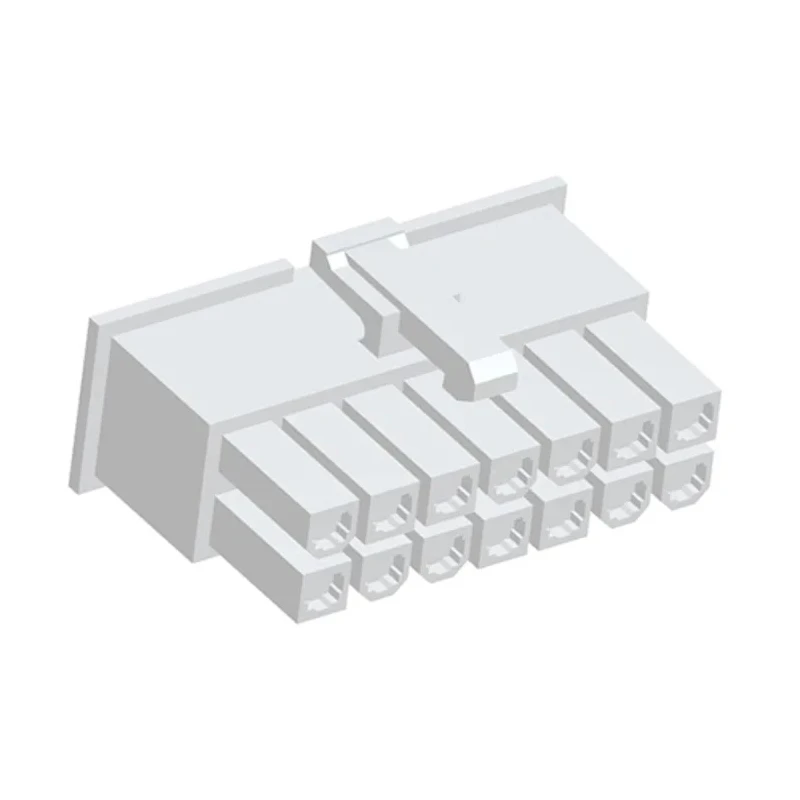

TE Connectivity VAL-U-LOK Female Connector Housing 14 Way 2 Row 4.2 mm Pitch Panel Mount Straight 1-2296205-4

TE Connectivity 1-2296205-4 VAL-U-LOK female connector housing is a precision 14 contact, 2 row straight connector with a 4.2 mm pitch ideal for panel mounting. Manufactured using high-quality nylon material, this Connector Housing provides excellent electrical insulation and durability. The VAL-U-LOK series is recognized for its easy mate and unmate features, incorporating an integral housing locking latch to ensure secure connections even in environments subject to vibration and shock.

This housing supports terminal position assurance (TPA) devices to guarantee terminal retention and prevent back-out, critical for maintaining reliable signal integrity in industrial and commercial electronic assemblies. While the TPA devices and crimp receptacle contacts are sold separately, they complement this housing to form a complete connector system.

The compact size with a length of 30.6 mm and width of 19.8 mm allows for efficient use of PCB space. The connector is designed with keying features to promote accurate mating alignment, reducing errors during assembly. The VAL-U-LOK series has broad applicability across various industries, including household appliances, desktop computers, indoor/outdoor lighting, security systems, industrial control systems, HVAC controls, and storage and networking systems.

These connectors are ideal for applications requiring robust and reliable connections where wire-to-panel and wire-to-wire interfacing is needed. The housing material complies with UL 94V-0 flame retardant standards and glow wire testing according to EN/IEC 60335-1, ensuring safety and durability in demanding electrical environments.

Made from UL 94V-0 rated nylon for safety and durability. Designed for easy mating with integral locking latch for secure connections. Double row, 14 contacts with 4.2 mm pitch for compact, high-density wiring. Supports terminal position assurance devices for reliable terminal retention.

Keying prevents misalignment and incorrect mating. Suitable for wire-to-panel and wire-to-wire connector applications. Commonly used in industrial, commercial, and household electronic equipment. Explore TE Connectivity's range of VAL-U-LOK connectors at EnvMart for reliable and precise electronic connector solutions suitable for your industrial and commercial needs.
