HARTING Circular Connector Cable Mount Socket, Female, 4 Contacts, M12 Series, IP67 Rated, 250V, 7.5A, Screw-On 21033194401

Free Delivery in India | Lowest Global Shipping Charges

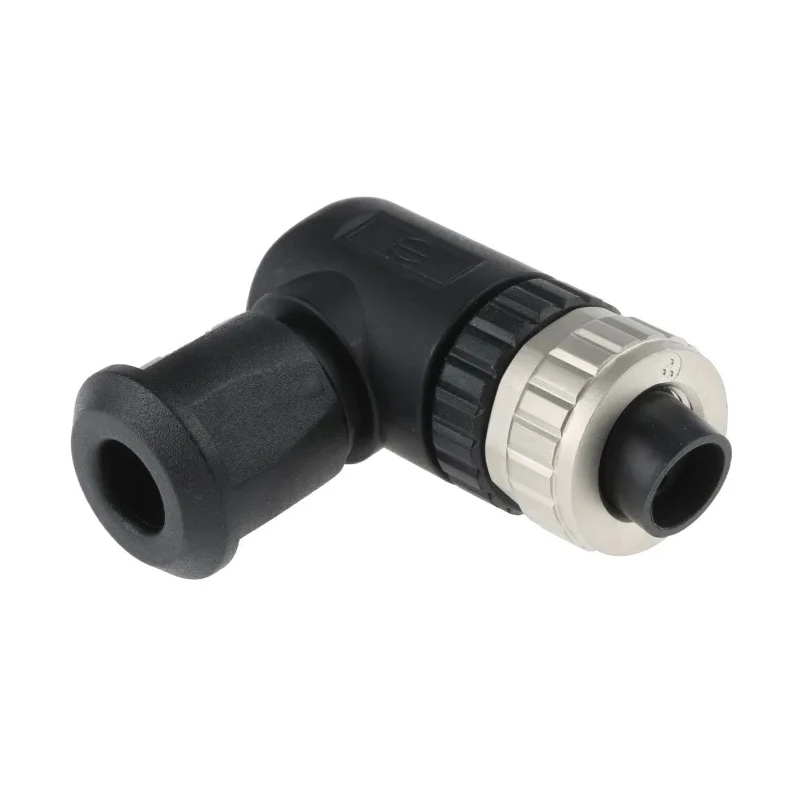

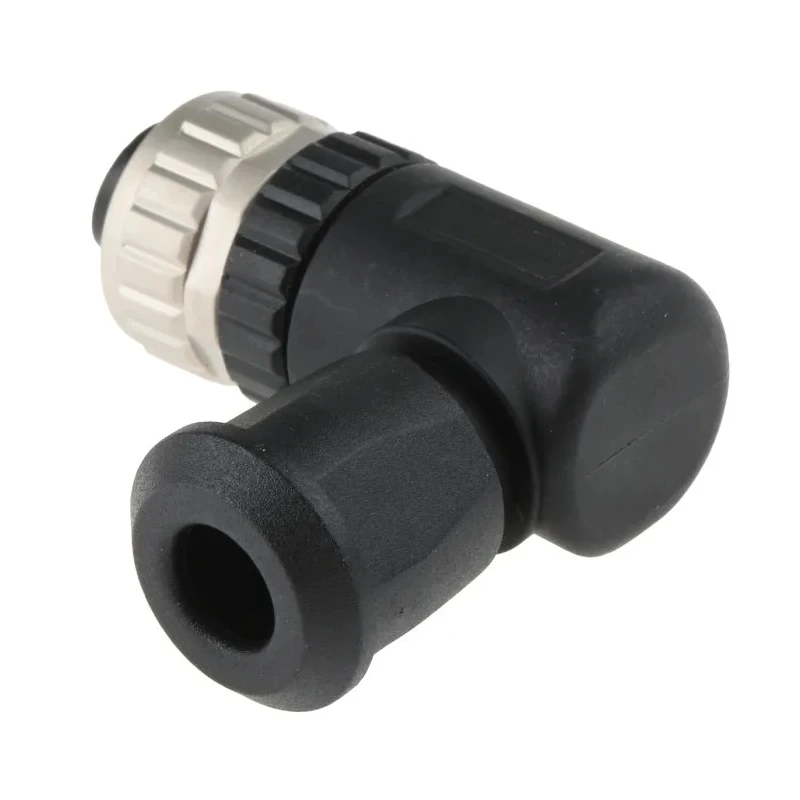

HARTING Circular Connector Cable Mount Socket, Female, 4 Contacts, M12 Series, IP67 Rated, 250V, 7.5A, Screw-On 21033194401

Name: HARTING Circular Connector Cable Mount Socket, Female, 4 Contacts, M12 Series, IP67 Rated, 250V, 7.5A, Screw-On 21033194401
Brand: HARTING
SKU: 191415
Price: 17.38 USD
Availability: InStock



Category Industrial Circular Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	HARTING
Orientation	Right Angle
Current	7.5A
IP Rating	IP67
Mount Type	Cable
Housing Material	Die Cast Zinc, Polyamide
Contact Material	Brass
Series	M12
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Pole Format	4
Contact Plating	Gold over Nickel
Number of Contacts	4
Contact Gender	Female
Shell Size	20 mm
Mating Type	Screw-On
Connector Size	M12
Plug/Socket	Socket
Coding	A

Key Features

The connector supports a voltage of 250V and a current rating of 7.5A per contact.
It has a right-angled body orientation for ease of installation in tight spaces.
Construction includes gold over nickel plated brass contacts and a die cast zinc and polyamide housing.
The screw-on mating type ensures a reliable and secure connection.
Operation temperature ranges from -30°C to 85°C, suitable for harsh environments.
Cable diameter compatibility ranges between 4mm and 8mm with 16AWG conductor cross-section.
Mating cycles exceed 100, providing long-service durability.
The compact design is ideal for electrical equipment, HVAC, industrial automation, and general industrial use.

Product Description

HARTING 21033194401 Circular Connector cable mount socket is engineered for demanding industrial environments, offering a robust and reliable electrical connection for cables in the M12 series. Its 4-pole female contacts handle a voltage rating of 250V and support currents up to 7.5A per contact, making it suitable for diverse electrical applications.

The right-angled body orientation allows installation flexibility in constrained spaces. The connector's housing is composed of durable die cast zinc backed with polyamide for enhanced mechanical and environmental protection. Contacts are made from brass with gold over nickel plating to ensure optimal conductivity and corrosion resistance.

The screw-on mating type secures the connection firmly, with positive lock feature and supports quick connect/disconnect functionality. It accepts cable diameters ranging from 4mm to 8mm and conducts appropriate AWG16 conductors. Mating cycles exceeding 100 ensure extended operational life.

Designed to operate reliably in temperatures from -30°C up to 85°C, this connector is rated IP67 to withstand harsh conditions involving dust and water exposure. Its unshielded design suits various industrial, electrical equipment, HVAC applications, and industrial automation tasks.

The connector supports high current and voltage levels ensuring efficiency. Materials and plating provide mechanical strength and corrosion protection. Compact size and right-angle orientation facilitate installation in tight environments.

Its IP67 rating ensures performance in wet and dusty conditions. Suitable for a wide range of industrial and electrical applications. For high-quality Industrial Circular Connectors, browse EnvMart's extensive selection of electrical components.
