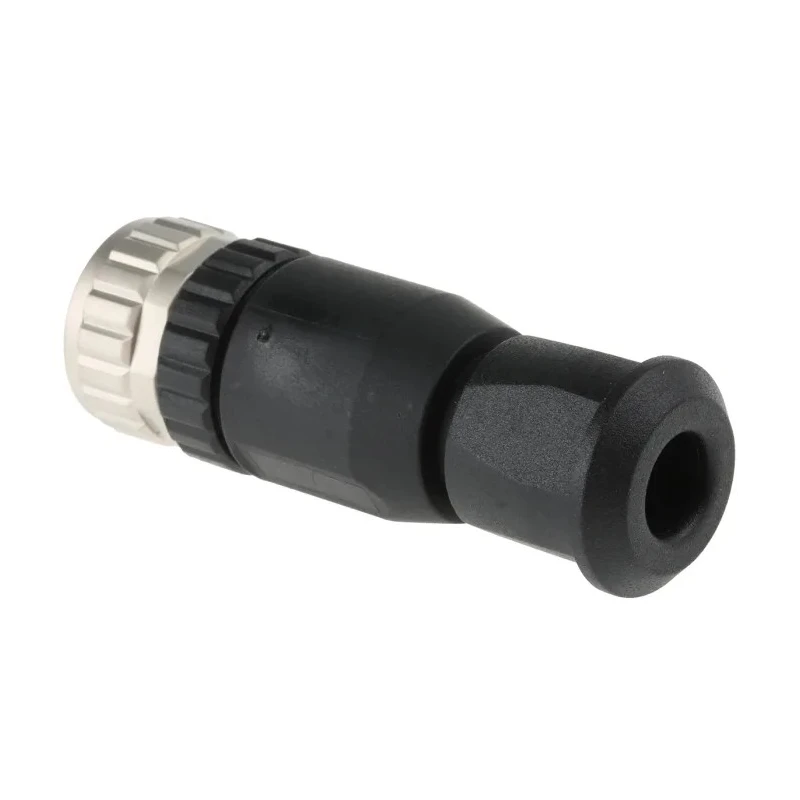

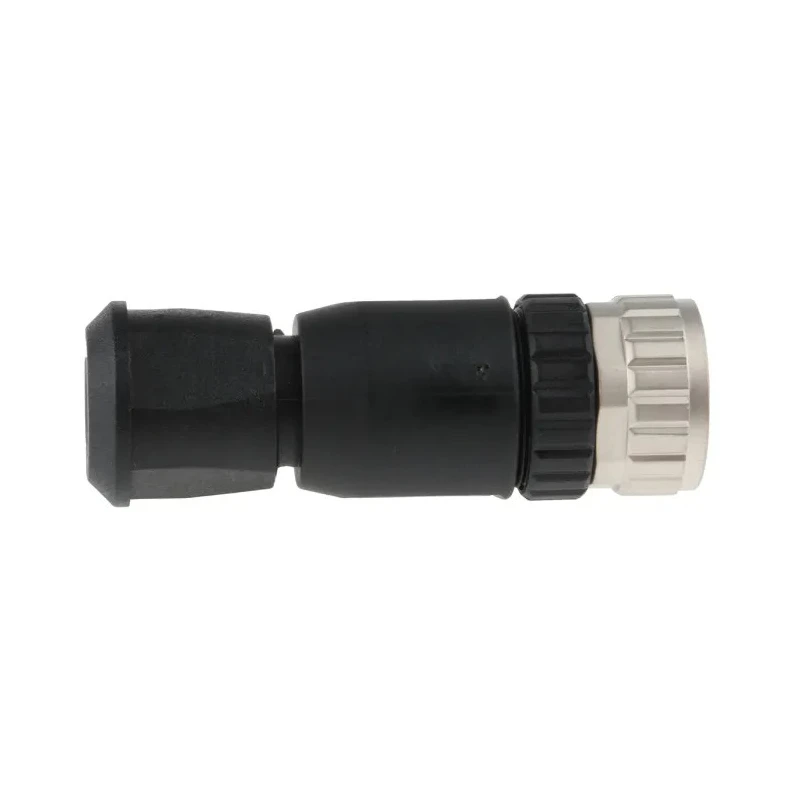

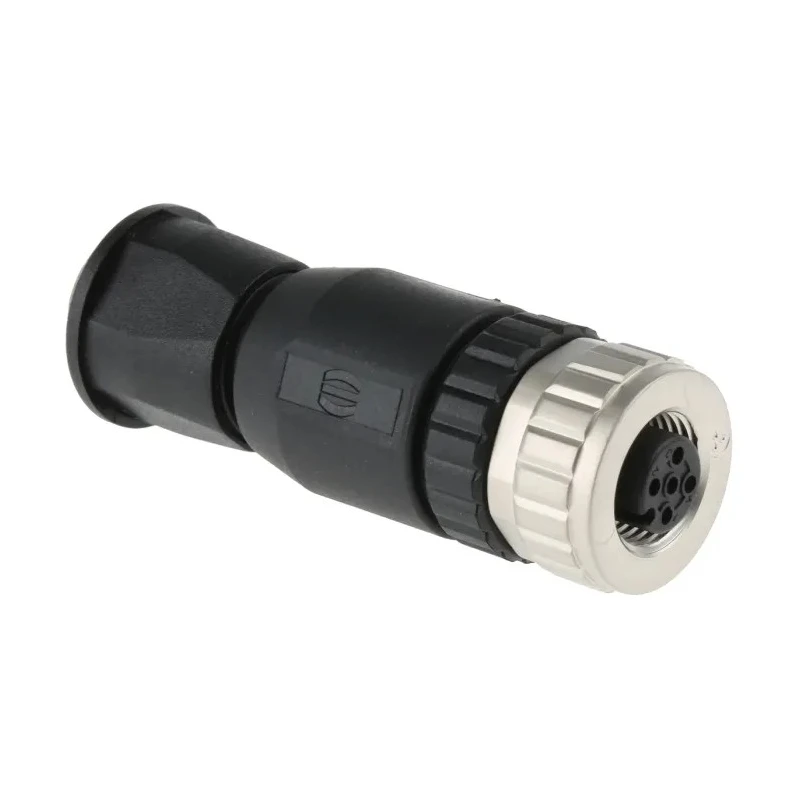

HARTING Circular Connector M12, 5 Contacts, Cable Mount, Socket, Female, IP67, 60V, 7.5A, Screw-On Mating, Model 21033192501

HARTING 21033192501 Circular Connector M12 Socket Female is a rugged and reliable industrial circular connector designed for cable mounting applications. It features five gold-plated brass contacts housed in a die cast zinc and polyamide shell providing corrosion resistance and mechanical robustness. Rated at 60 volts and 7.5 amperes per contact, this connector assures excellent electrical performance for demanding equipment.

The connector utilizes a screw-on mating type with a secure screw locking system to guarantee a positive and stable connection in industrial, automation, HVAC, and electrical equipment environments. Its IP67 ingress protection rating ensures resistance against dust and water, rendering it suitable for harsh operational conditions. The housing has a compact 20 mm shell size with a straight body orientation and female socket contact gender.

The termination type is screw, supporting conductor cross sections of 16 AWG, and the connector supports cable diameters between 4 mm and 8 mm. Operational temperature ranges from -30°C to 85°C enable wide application scenarios. The connector is designed for more than 100 mating cycles, providing durability in repeated use.

Constructed with die cast zinc and polyamide housing for durability. Features gold-plated brass contacts ensuring corrosion resistance. Rated for 60 volts and 7.5 amperes current capacity per contact. Supports operating temperature range from -30°C to 85°C.

Designed with screw termination for secure and stable connections. IP67 rated for water and dust proof performance in challenging environments. Compatible with M12 series cable mount plugs and receptacles. Includes straight orientation with female socket contact type.

Provides over 100 mating cycles ensuring long service life. A-coded connector with screw locking mechanism for secure engagement.

This connector is ideal for industrial automation, electrical equipment, HVAC, and general industrial applications where durable and reliable power and signal connections are required. The compact size and IP67 rating make it suitable for use in challenging conditions involving dust, water, and mechanical stresses.

For professionals seeking robust M12 cable mount circular connectors, this HARTING model 21033192501 offers proven quality, long life, and industrial-grade performance.
