TE Connectivity VAL-U-LOK Female Connector Housing 4.2 mm Pitch 24 Way 2 Row Straight 2-794954-4

Free Delivery in India | Lowest Global Shipping Charges

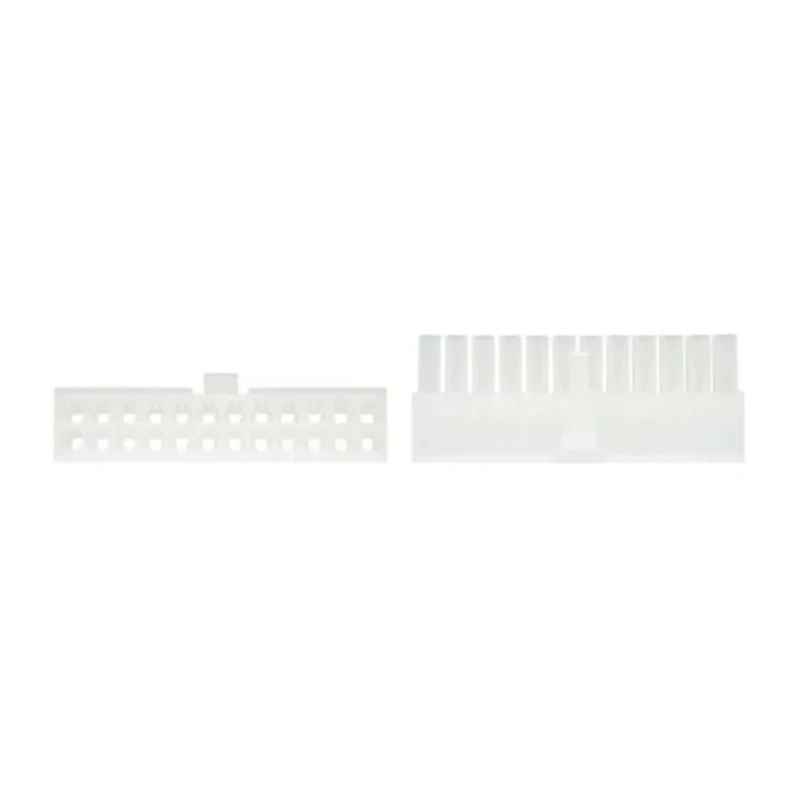

TE Connectivity VAL-U-LOK Female Connector Housing 4.2 mm Pitch 24 Way 2 Row Straight 2-794954-4

Name: TE Connectivity VAL-U-LOK Female Connector Housing 4.2 mm Pitch 24 Way 2 Row Straight 2-794954-4
Brand: TE Connectivity
SKU: 191274
Price: 0.82 USD
Availability: InStock



Category Connector Housing Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Orientation	Straight
Length	52mm
Width	11.8mm
Mount Type	Cable
Housing Material	Nylon
Series	VAL-U-LOK
Number of Rows	2
Pitch	4.2mm
For Use With	Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector
Number of Contacts	24
Connector Gender	Female

Key Features

Constructed from strong, fire-retardant nylon material for durability and safety.
Designed with a simple positive latch mechanism for easy mating and un-mating.
Compatible and interchangeable with Molex Mini-Fit, Jr. and AMP-DUAC connectors.
Ensures accurate alignment with keying features on the housing.
Applications include computer motherboards, harness assemblies, car alarm systems, and heating systems.
Complies with UL 94V-2 flammability standard for industrial safety.
Compact dimensions with 11.8 mm width and 52 mm length facilitate integration.
Supports wire-to-board, wire-to-panel, and wire-to-wire connector use cases.

Product Description

TE Connectivity 2-794954-4 VAL-U-LOK Female Connector Housing is a reliable, low-cost solution for industrial and electronic applications requiring a 24 contact, 2 row straight female connector. This housing features a 4.2 mm pitch and is made of fire-retardant nylon which ensures durability and safety compliance under UL 94V-2 standards.

The positive latch design facilitates secure locking while enabling easy mating and un-mating operations, thus enhancing serviceability. Its keying features guarantee precise alignment, reducing connection errors in complex assemblies.

Suitable for various industrial sectors, including computer motherboard power connections, vending machine harness assemblies, automotive alarm systems, heating system installations, and general power supplies. The housing supports multiple connector types including wire-to-board, wire-to-panel, and wire-to-wire configurations, thereby offering versatile deployment.

Dimensionally compact with a width of 11.8 mm and length of 52 mm, it seamlessly fits into compact electronic assemblies. The nylon construction provides mechanical robustness and flame retardance necessary for demanding industrial environments.

Constructed from strong, fire-retardant nylon material for durability and safety. Designed with a simple positive latch mechanism for easy mating and un-mating. Compatible and interchangeable with Molex Mini-Fit, Jr. and AMP-DUAC connectors.

Ensures accurate alignment with keying features on the housing. Complies with UL 94V-2 flammability standard for industrial safety. Supports wire-to-board, wire-to-panel, and wire-to-wire connector use cases.

Manufactured in China, this TE Connectivity housing ensures quality as expected by global industrial standards. It is ideal for electronics manufacturers and service providers requiring dependable Connector Housing solutions.
