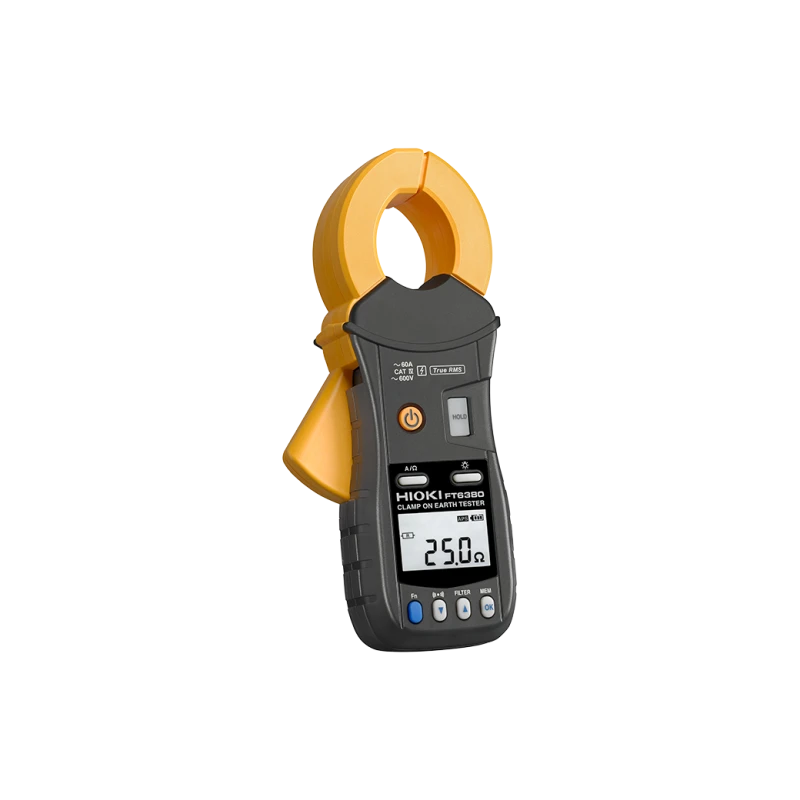

Hioki FT-6380 Clamp Earth Tester With Leakage Current 1600 ohms 60A
Specifications
| Display | Digital |
|---|---|
| Brand | HIOKI |
| Dimension | 73 mm (2.87 in) W x 218 mm (8.58 in) H x 43 mm (1.69 in) |
| Applications | Earth Testing |
| Model | Hioki FT6380 |
| Features | Instrument has two cores for voltage injection and current measurement. From the defined voltage |
| Weight | 1.5 KG |
| Safety | CAT IV 600 Volts |
| Range Selection | 0.20 ohms to 1600 ohms 10 ranges |
Key Features
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
Product Description
Hioki FT-6380 Clamp Earth Tester With Leakage Current (1600 ohms, 60A), The FT6380 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, also provide AC current measurement functionality, and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A. CAT IV 600V
- Measure load current up to 60.0 A range
- Clamp at the narrowest point
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is from 0.20 ohms to 1600 ohms, with 10 selectable ranges.
It can measure load currents up to 60 A.
The dimensions are 73 mm (2.87 in) in width, 218 mm (8.58 in) in height, and 43 mm (1.69 in) in depth.
The device is rated CAT IV 600 Volts, ensuring it is suitable for high voltage environments.
It features a digital display for easy reading of measurements.
Yes, it can measure leakage current with a resolution of 0.01 mA at the 20.00 mA range.
This model is specifically designed for earth testing applications.
It weighs 1.5 KG.
No, it does not require an auxiliary grounding rod and can clamp directly to multiple-grounded ground wires.
It has two cores for voltage injection and current measurement, allowing for accurate readings.
The minimum measurement capability is 0.20 ohms.
Yes, it can measure AC currents as well as leakage currents and load currents.
