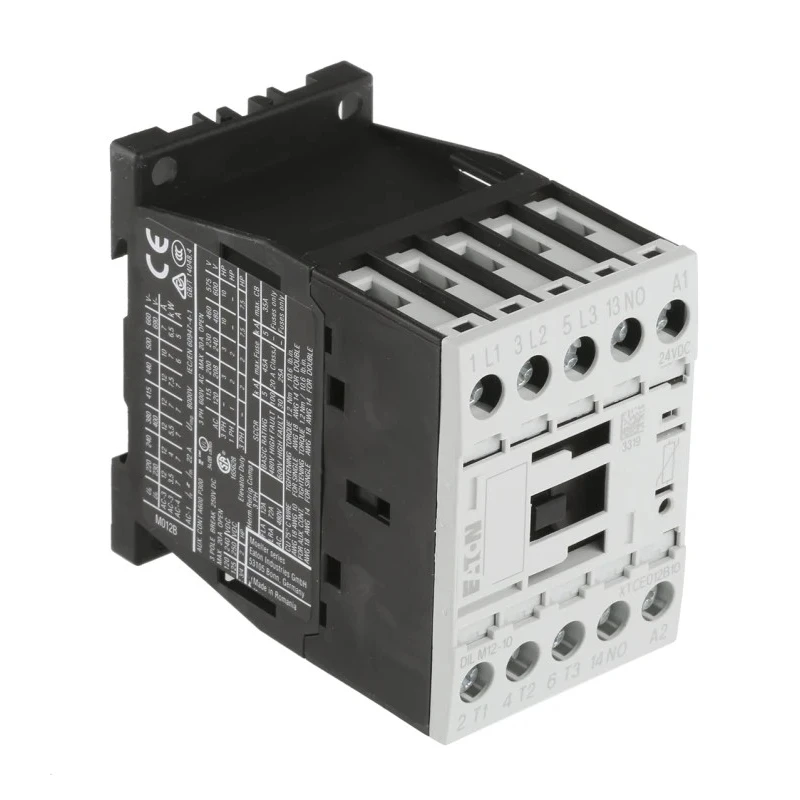

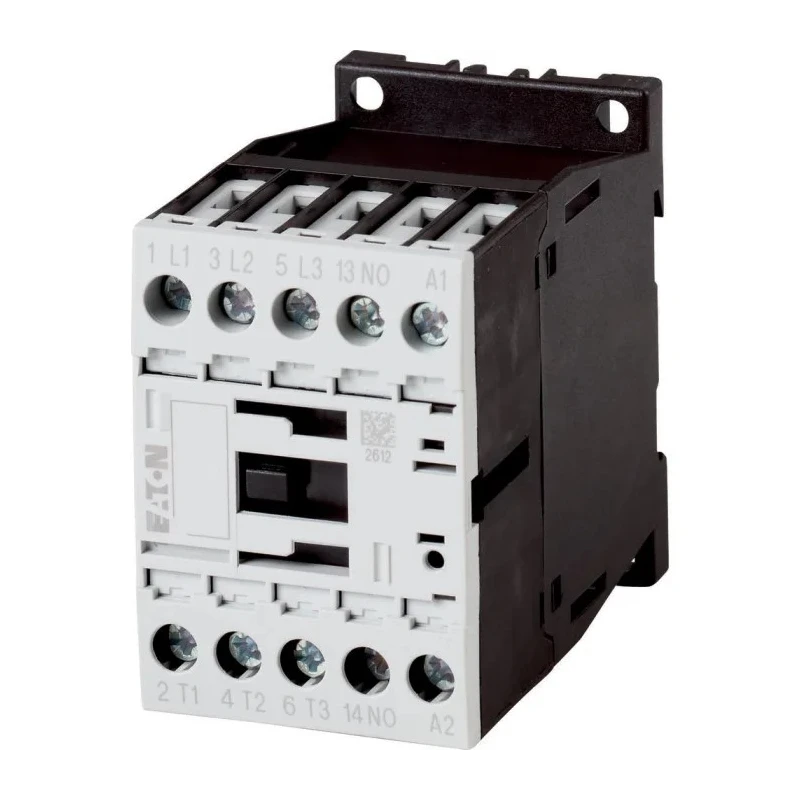

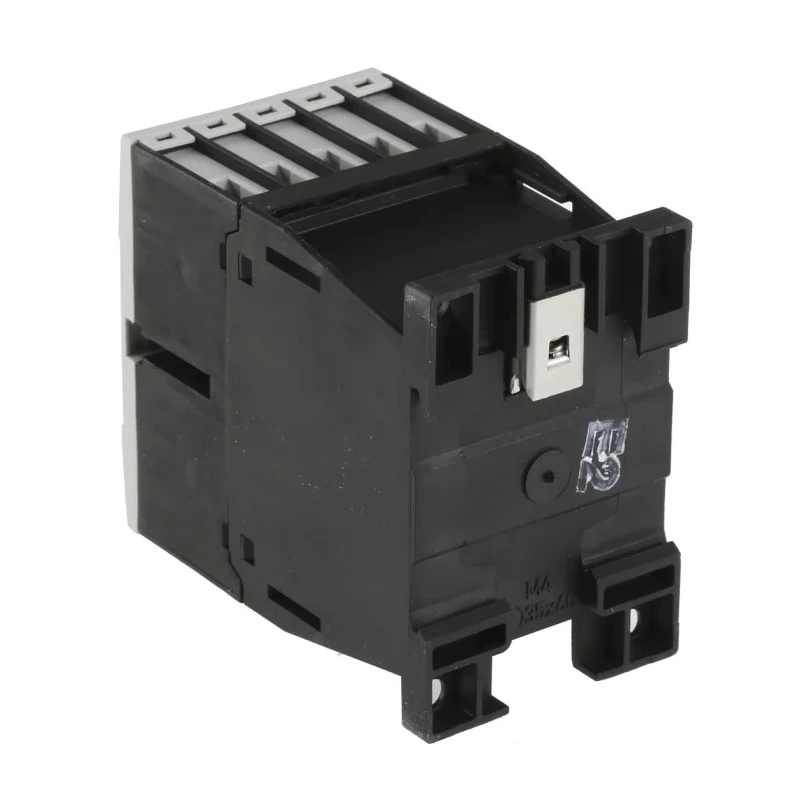

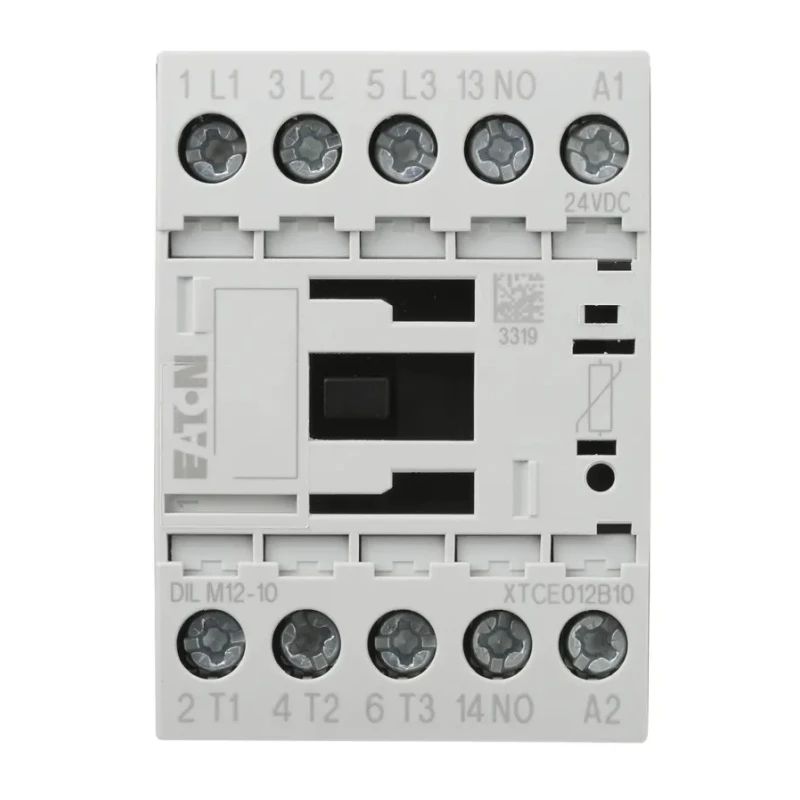

Eaton DILM Contactor 24V DC Coil, 3-Pole, 12 A Contact Current, 5.5 kW Power Rating, 400V AC Contact 276845 DILM12-10(24VDC)

Eaton 276845 DILM12-10(24VDC) Contactor is a high-performance electric contactor ideally suited for industrial automation, motor control, and resistive load switching applications. This 3-pole contactor has a coil voltage of 24V DC and supports a contact current of 12 A with a power rating of 5.5 kW. It operates with a contact voltage of 400V AC, making it suitable for high-power tasks.

The contactor features compact dimensions of 68mm length, 117mm depth, and 45mm width which allows it to be installed even in tight spaces. It utilizes screw terminal mounting for straightforward installation without the need for specialized tools. Its design includes one auxiliary contact configured as 1 NO, providing additional switching capabilities.

Built to endure demanding industrial environments, the Eaton DILM12-10(24VDC) functions reliably within a temperature range of -25°C to +40°C. It has a mechanical lifespan rated for up to 10 million operations, offering exceptional durability and longevity. The unit’s IP20 rating ensures protection against touch and intrusion by solid foreign objects greater than 12 mm, enhancing safety and reliability.

Approvals such as UL, IEC/EN 60947, VDE 0660, and CSA certify compliance with international standards, making this contactor a trustworthy component in industrial control panels, manufacturing equipment, and automation systems. Weighing approximately 0.296 kg, it adds minimal load to the installation.

Its capability for frequent on-off switching (up to 9,000 operations per hour) supports applications with high switching demands including motor jogging and other industrial automation functions. This product is made in Romania, reflecting Eaton’s global manufacturing standards.

The contactor supports a power rating of 5.5 kW and a contact voltage of 400V AC. Compact dimensions of 68mm length, 117mm depth, and 45mm width allow installation in space-constrained environments. Designed for motor control and resistive load applications with a normal state configuration of 3 NO contacts.

Equipped with 1 auxiliary contact configured as 1 NO for additional control functions. Operational in temperatures ranging from -25°C to +40°C, suitable for harsh industrial environments. Mount type uses screw terminals for easy and secure installation without specialized tools.

Mechanical lifespan of up to 10 million operations ensures long-term reliability. Lightweight design at approximately 0.296 kg reduces system load. Standards and approvals include UL, IEC/EN 60947, VDE 0660, and CSA, ensuring compliance with industrial norms.

Ideal for industrial automation systems requiring robust contactors for frequent switching operations. Explore the Eaton product catalog on EnvMart for reliable Contactors and automation components tailored to industrial, manufacturing, HVAC, and electrical control applications.
