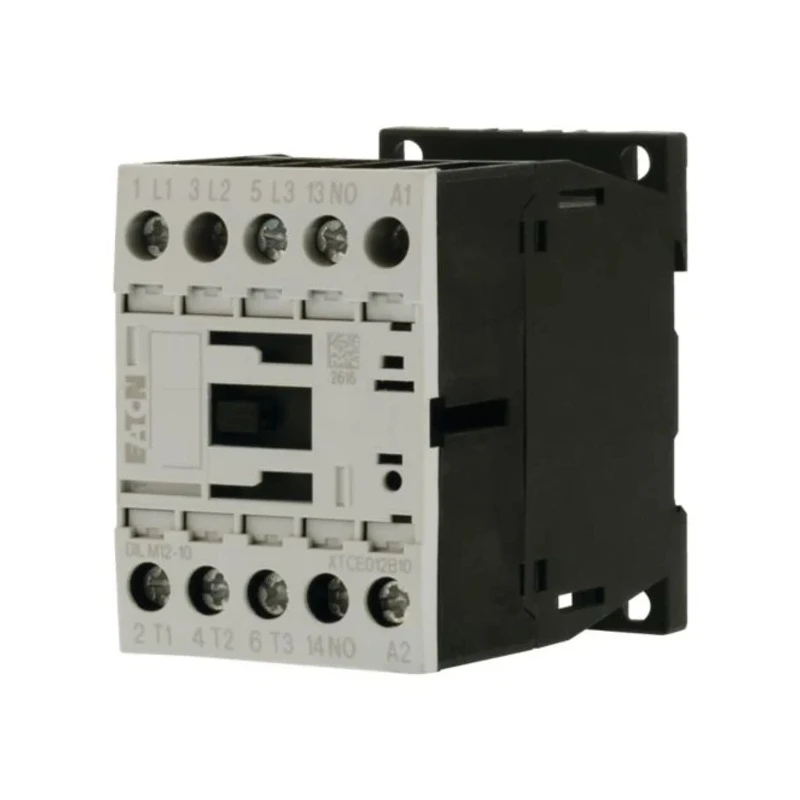

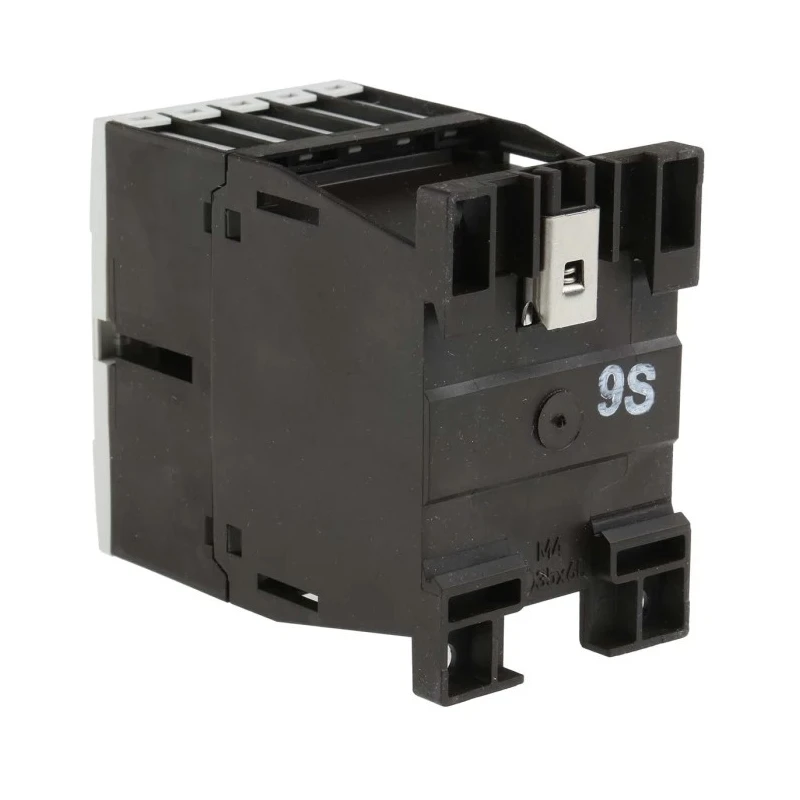

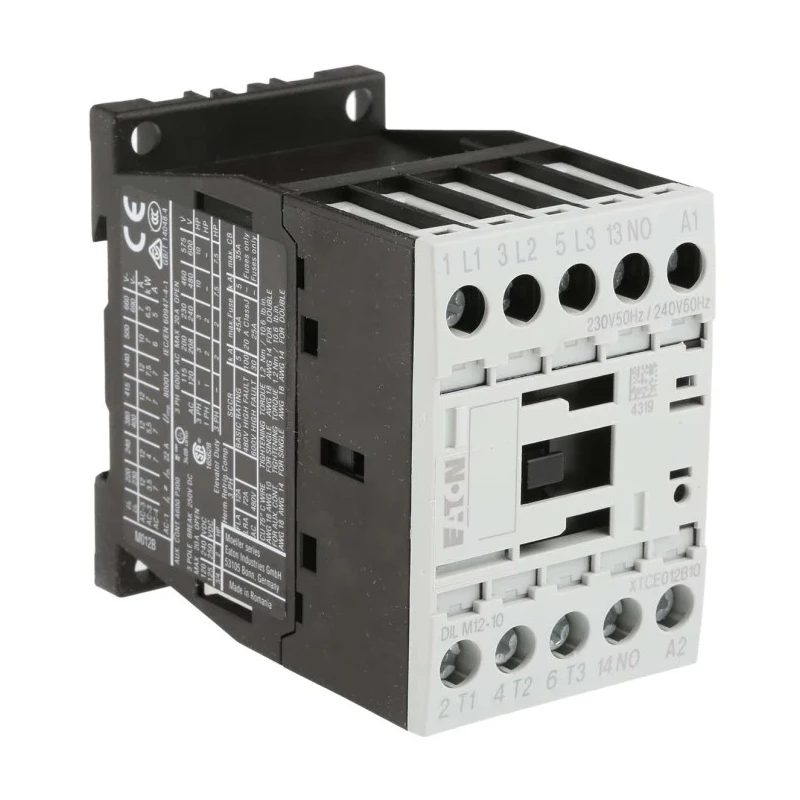

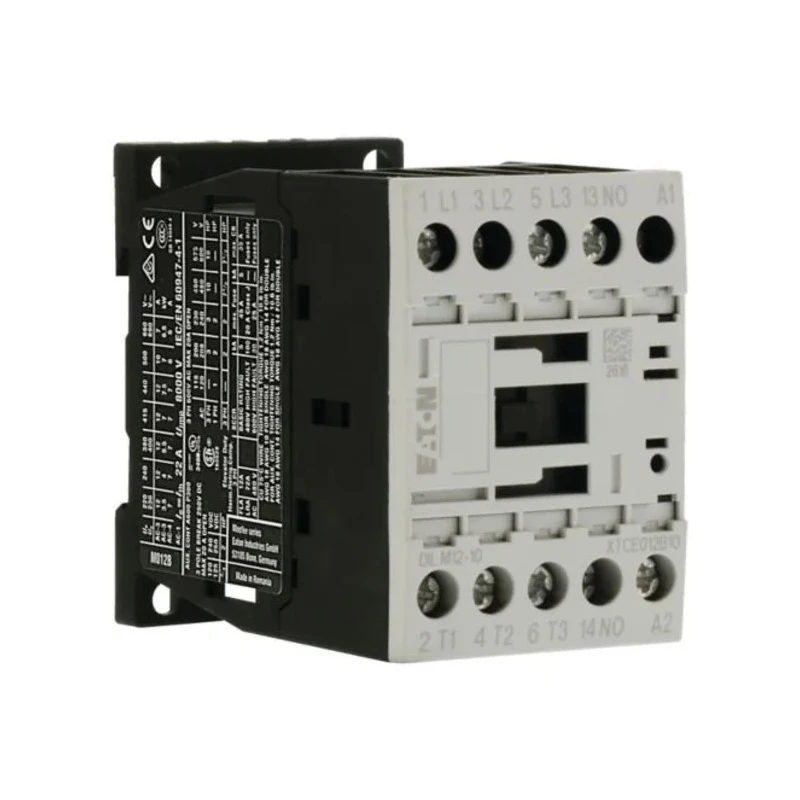

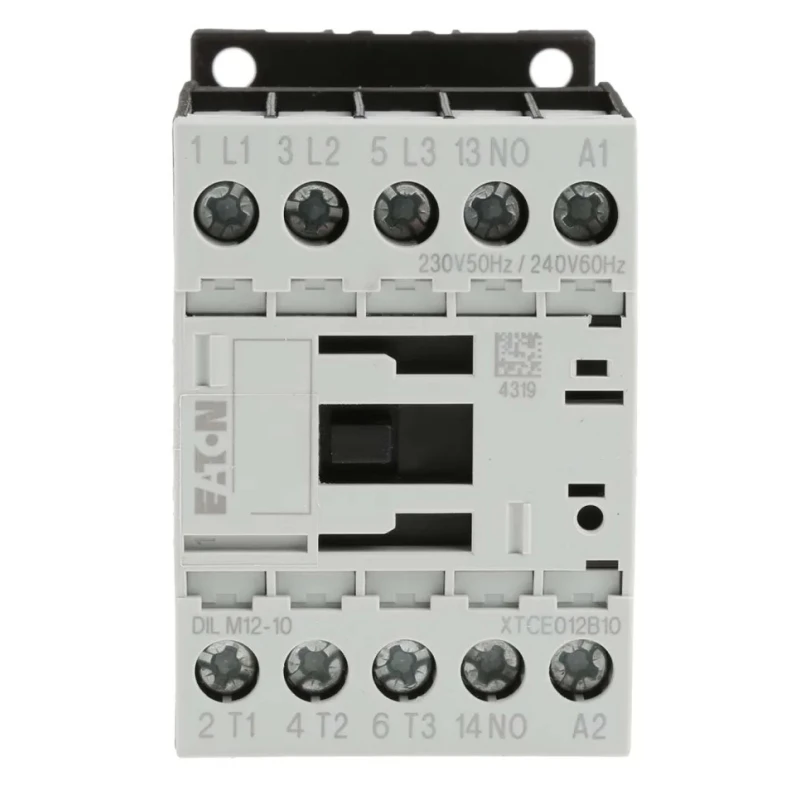

Eaton DILM Contactor 3-Pole 12 A 5.5 kW Coil Voltage 230V AC Model 276830 DILM12-10(230V50HZ,240V60HZ)

Eaton 276830 DILM12-10(230V50HZ,240V60HZ) Contactor is a high-quality electrical component designed for industrial and commercial motor control applications. It operates on a 230V AC coil voltage and is rated for a contact current of 12A, making it suitable for controlling motors and resistive loads up to 5.5 kW power rating. This device is constructed with robust engineering to ensure reliability and safety in demanding electrical environments.

Equipped with three poles and one auxiliary contact (1 NC configuration), the contactor provides efficient switching capability. The screw clamp terminal design results in a secure and stable wire connection, essential for long-term operational stability. Its compact physical dimensions (68 mm length, 45 mm width, 125.2 mm depth) facilitate easy integration into crowded control panels.

The contactor is designed to operate effectively across a broad ambient temperature range from -25°C to +60°C, enabling its use in various harsh industrial environments. Integral back-of-hand and finger-proof protection ensures user safety by preventing accidental electric shocks during installation and maintenance. Additionally, the contactor can handle a mechanical lifespan of up to 10 million cycles, ensuring durability and reduced downtime.

Certified to internationally recognized standards including CSA, IEC/EN 60947, UL, and VDE 0660, this Eaton contactor guarantees compliance with global quality and safety norms. Its operational current of 12A at 400V AC contact voltage supports a wide range of motor control and automation tasks.

Ideal for use in industrial automation, manufacturing processes, HVAC systems, and other electrical control applications, this contactor facilitates efficient and reliable switching. The device aids in motor reversing and resistive load control, providing versatile functionality within electrical control panels.

This contactor supports a power rating of 5.5 kW at 230V AC coil voltage. It features a 3 NO normal state configuration and 1 NC auxiliary contact configuration. Designed with screw clamp terminals for secure wire connection.

Operates reliably within a temperature range of -25°C to 60°C. Compact dimensions of 68 mm length, 45 mm width, and 125.2 mm depth save valuable panel space. Integral finger-proof protection provides safety against electric shocks during operation.

Mechanical lifespan supports up to 10,000,000 operation cycles for long-term durability. Meets international standards including CSA, IEC/EN 60947, UL, and VDE 0660 certifications.
