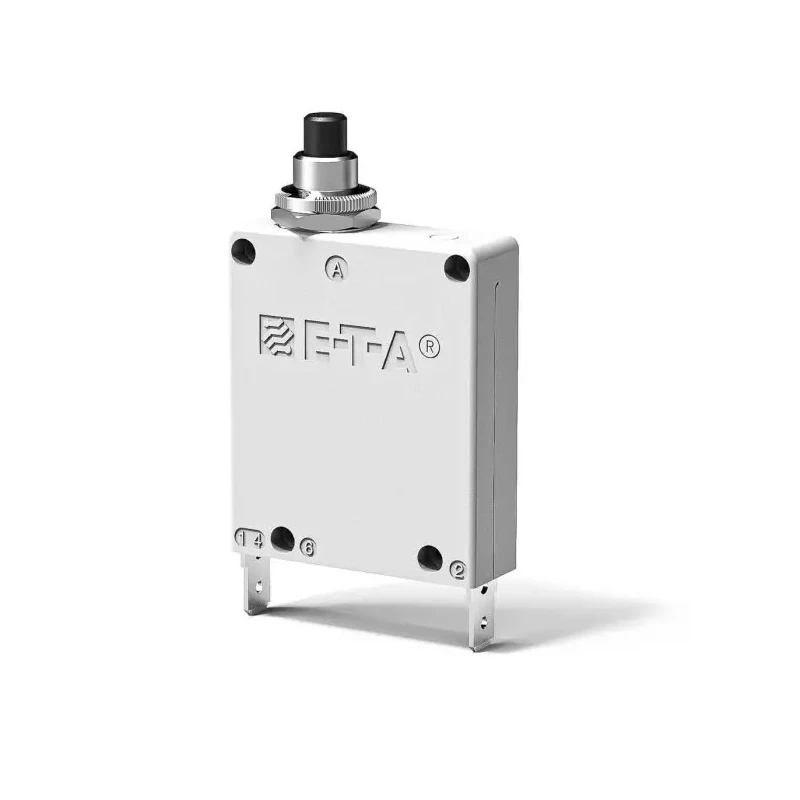

ETA Thermal Magnetic Circuit Breaker 5A Current Rating 1-Pole, Panel Mount 3400-P10-H-SI-5A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Brand	ETA
Height	50.8mm
Model	3400-P10-H-SI-5A
Width	14.5mm
Mount Type	Panel
Current Rating	5A
Series	3400
Terminal type	Screw
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	RoHS, CE
Rated AC Voltage	240V ac
Rated DC Voltage	80V dc
Tripping Characteristics	Type R
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Button
Break Time	Medium
ETA 8340 Thermal Circuit Breaker -, 5A Current Rating 1-Pole, FlangeBrand	ETA

Key Features

Features thermal magnetic tripping mechanism ensuring precise protection.
Compact design with 14.5mm width and 50.8mm height for easy panel installation.
Manual reset with button actuator for convenient operation.
Rated for 240V AC and 80V DC applications.
Breaking capacity of 25A and medium break time characteristics.
Includes 1 N/O plus 1 N/C auxiliary contacts for signaling purposes.
Supports single hole mounting with screw terminal type.
Delayed overload tripping with 20-30 second trip time at 2x nominal current.

Product Description

ETA 3400-P10-H-SI-5A Thermal Magnetic Circuit Breaker is a high-quality protective device designed for electrical panels and industrial applications where reliable current interruption is required. With a 5 ampere current rating and 1-pole configuration, it supports safe operation of panel-mounted electrical circuits.

The device features a thermal magnetic tripping mechanism, providing dependable overload and short-circuit protection in medium break time. Its compact dimensions of 14.5mm width and 50.8mm height allow installation in confined panel spaces. The breaker includes a manual reset button actuator enabling easy resetting after tripping, and screw terminal connections ensure stable wiring.

This circuit breaker is rated for 240 volts AC and 80 volts DC, making it versatile for mixed voltage circuit environments. It offers a breaking capacity of 25 amps and includes 1 Normally Open plus 1 Normally Closed auxiliary contact useful for signaling or status indication.

Additional features include a pull manual release function and a delayed overload trip characteristic with a 20 to 30 second trip time when current exceeds twice the nominal rating, ensuring protection against transient current surges.

Compliant with RoHS and CE standards, this thermal magnetic breaker supports environmental safety and electrical regulatory requirements. It is suitable for industrial, commercial, and electrical panel applications requiring medium capacity thermal protection.

Thermal magnetic tripping mechanism ensures accurate protection. Compact size suitable for panel mounting with screw terminals. Manual reset button allows easy breaker recovery. Rated for 240V AC and 80V DC voltage systems.

Breaking capacity of 25A suits moderate load demands. Includes auxiliary contacts for signaling functions. Delayed overload tripping prevents nuisance trips. Compliance with RoHS and CE ensures safety and environmental standards.

Single-pole design for focused circuit protection. Reliable, long operational life with typical 5000 operations. Explore the Electronics & Electricals Circuit Breakers category at EnvMart for compatible and complementary products from trusted brands like ETA.
