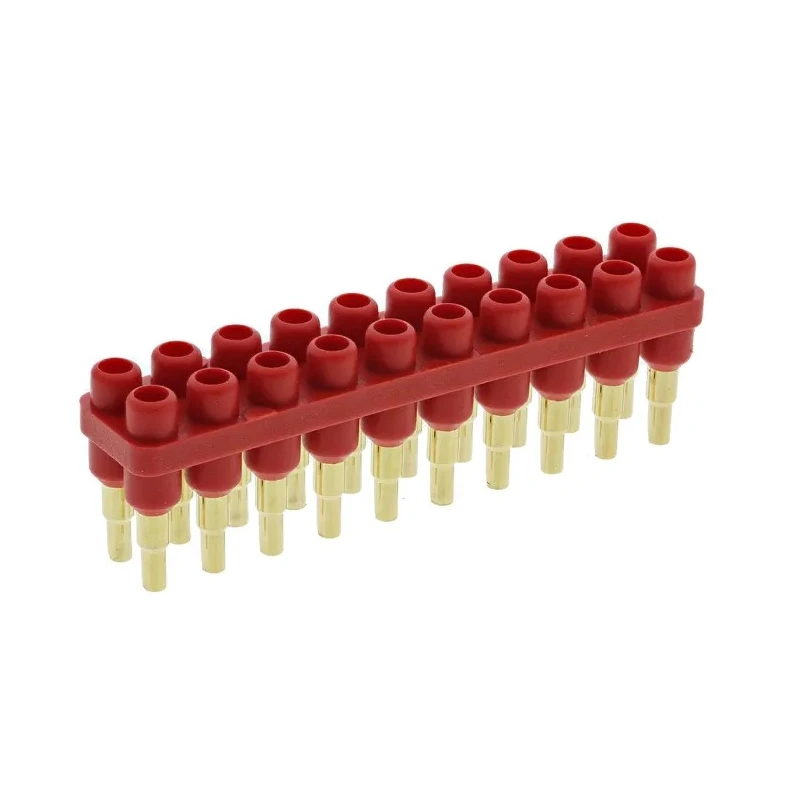

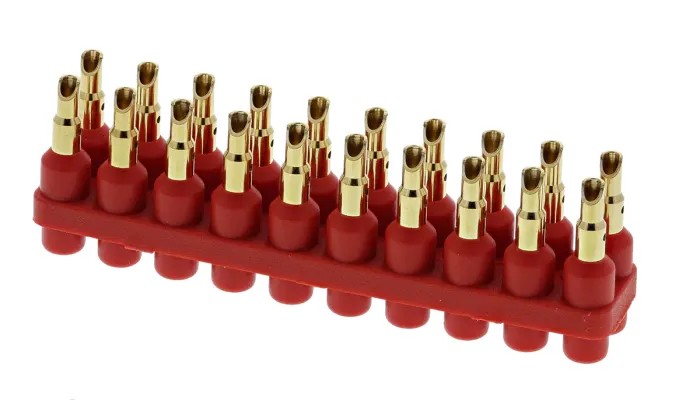

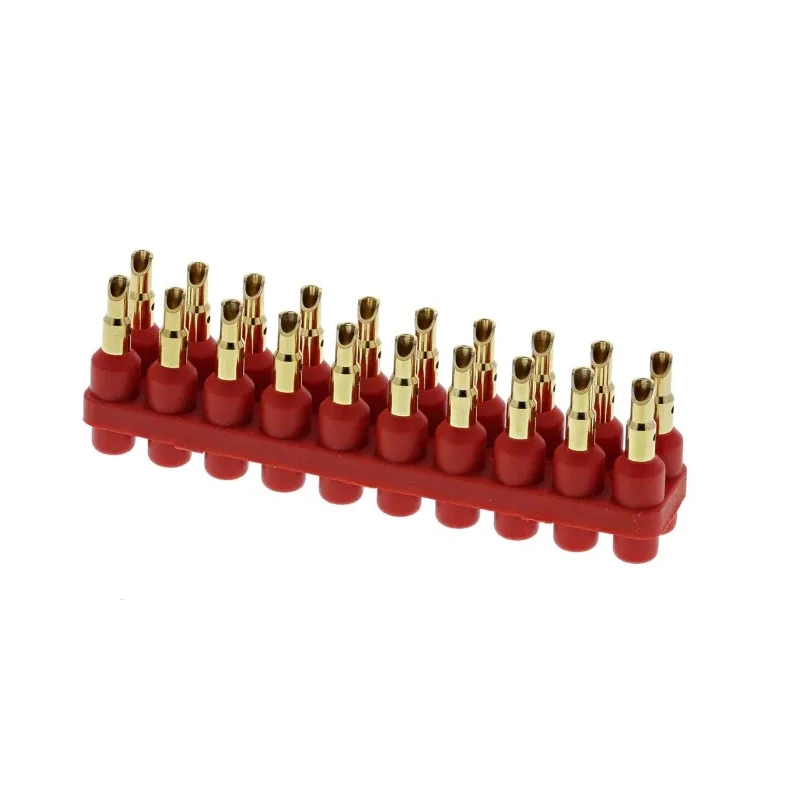

Staubli Straight Panel PCB Socket, 20-Contact, 2 Row, 6 mm Pitch, Gold Plating, 10A, 70V 63.9356-22
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 70V |
| Brand | Staubli |
| Orientation | Straight |
| Current | 10A |
| Mount Type | Panel |
| Termination Type | Solder |
| Number of Rows | 2 |
| Pitch | 6mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Staubli Straight Panel PCB Socket, 20-Contact, 2 Row, 12 mm Pitch SolderBrand | Staubli |
Key Features
- Rated for 10A current and 70V voltage capacity.
- Gold-plated contacts ensure low resistance and reliable conductivity.
- Straight orientation tailored for easy panel installation.
- Durable design suitable for automotive and aviation testing applications.
- Equipped with MC-Multilams for vibration-proof contact performance.
- Offers compatibility with insulated Ø2mm jumper plugs spaced at 6mm and 12mm.
- Manufactured in Germany assuring high quality and precision standards.
- Ideal for professional PCB connector and socket applications.
Product Description
Staubli 63.9356-22 Straight Panel PCB Socket is a precision-engineered PCB connector featuring 20 female contacts set in 2 rows with a 6 mm pitch. This panel-mount socket is designed for solder termination and supports a current rating of 10A at 70V, suitable for demanding electronic applications.
The contact plating is gold, providing excellent conductivity and resistance to corrosion. Its straight orientation ensures straightforward and secure mounting onto panels, making it highly reliable for industrial use.
This connector integrates MC-Multilams on the plugs, delivering very low contact resistance and vibration-proof engagement. It is ideal for testing and servicing in fields such as automotive and aviation industries. The socket is compatible with insulated Ø2mm jumper plugs available in 6 mm and 12 mm spacings, enhancing versatility in wiring setups.
Manufactured in Germany, this product maintains high quality and workmanship standards. The robust design assures durability and precise electrical performance, making it a trusted choice for PCB socket applications requiring reliability and endurance.
Rated for 10A current and 70V voltage capacity. Gold-plated contacts ensure reliable conductivity. Straight orientation for easy panel mounting. Equipped with MC-Multilams for low contact resistance. Vibration-proof contacts suitable for automotive and aviation testing.
Compatible with insulated Ø2mm jumper plugs at 6mm and 12mm spacing. Made in Germany ensuring product quality. Suitable for professional PCB connector and socket use. Explore more high-quality PCB Sockets and connectors in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a current of 10A and a voltage of 70V.
It features a solder termination type, designed for secure connections on printed circuit boards.
This model has 20 female contacts arranged in 2 rows.
The contact pitch size is 6 mm, allowing for compatible spacing in wiring setups.
It has a straight orientation, which facilitates easy panel installation.
It is compatible with insulated Ø2mm jumper plugs spaced at 6mm and 12mm.
This PCB socket is manufactured in Germany, ensuring high quality and precision standards.
The contacts are gold-plated, which provides low resistance and reliable conductivity.
It is suitable for automotive and aviation testing applications, among other professional uses.
This model is designed for panel mounting, making it easy to install in various setups.
Yes, it is equipped with MC-Multilams for vibration-proof contact performance, ensuring reliable connections.
The contacts in this socket are female, designed for use with compatible male connectors.
