Otto P9 Series Push Button Switch Momentary Panel Mount SPDT White LED IP68 28 V dc 115 V ac P9213129W

Otto P9213129W P9 Series Push Button Switch is a momentary action panel mount switch offering SPDT contact configuration with robust IP68 watertight sealing, rated for 28 V dc and 115 V ac applications. This switch features a white actuator with white LED color option and is designed for heavy industrial, control panel, instrumentation, and automation uses requiring durable and reliable push button switches.

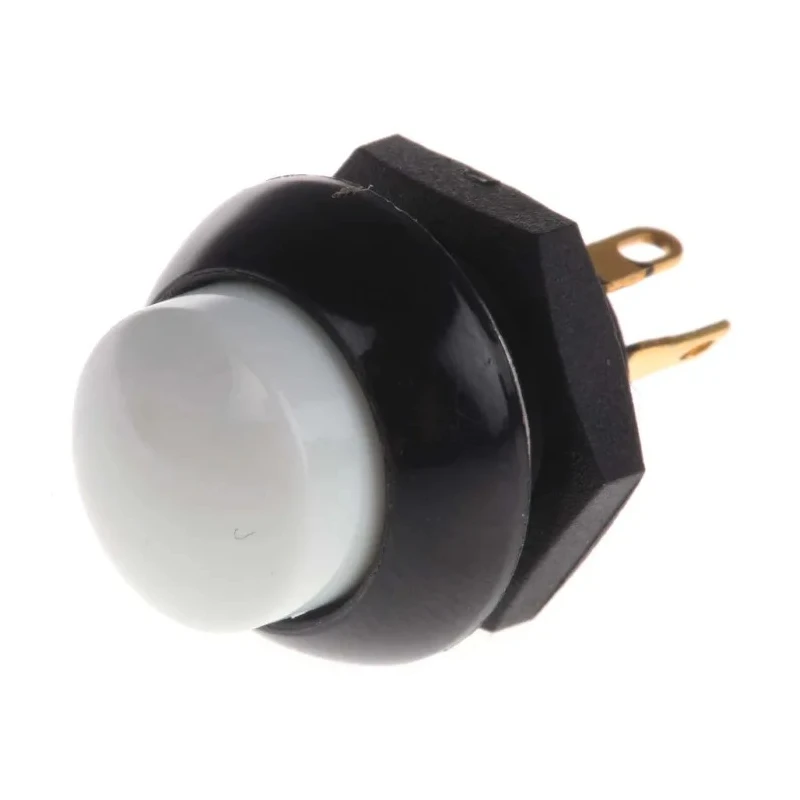

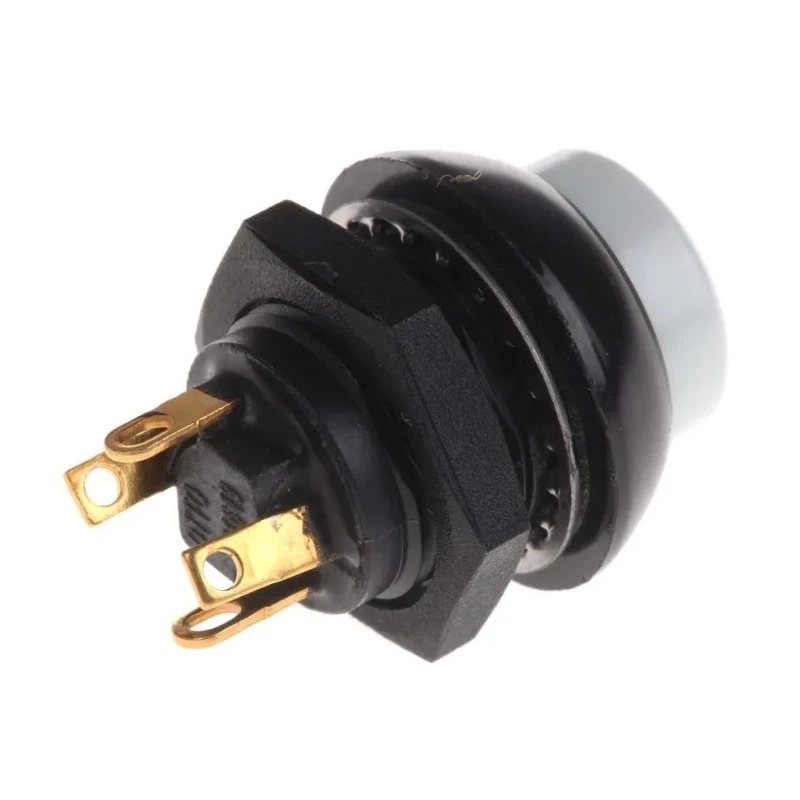

The P9 series offers a contoured dome style button available in low and high profiles with a threaded body for hex nut mounting. The small size, black bezel, and body provide an attractive and rugged finish. The device operates in temperatures from -55 to +85 degrees Celsius and carries RoHS compliance. The switch is rated for 5 amps resistive DC or AC currents and can withstand 1 million mechanical operations and 25,000 electrical switching cycles at full rated load.

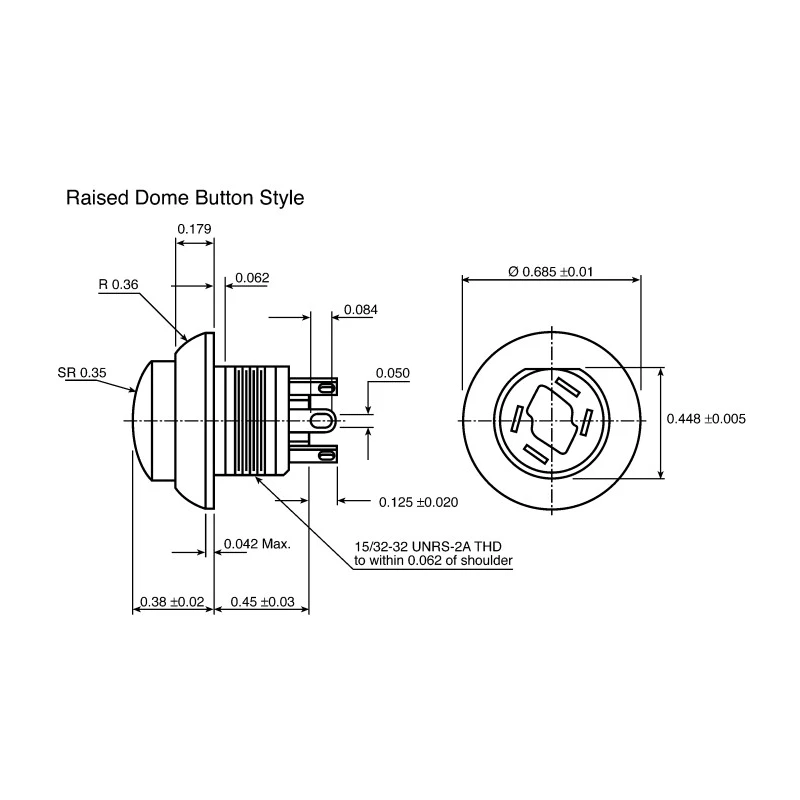

This momentary push button switch features an On-On snap-action contact with 1 normally open and 1 normally closed contact (form Z). The panel cutout size required is 0.5 inch (12.827 mm), and it comes supplied with a nut and panel seal gasket for proper installation and environmental sealing.

Applications include industrial control panels, automation systems, machinery controls, instrumentation panels, computer peripherals, and heavy equipment requiring rugged, precision push button switches that ensure reliable operation under demanding environmental conditions.

Momentary switch operation providing precise control activation. IP68 rated for water immersion up to 1 meter for outstanding environmental protection. Contact rating of 5A at 28V DC or 115V AC ensures suitability for industrial control circuits.

Black bezel and body with white actuator for clear visibility and aesthetic fit. Wide operating temperature range from -55°C to +85°C for harsh environments. Threaded body facilitates secure panel mounting with included hardware.

Low contact resistance supports low-level switching capability. RoHS compliant ensuring environmental and safety standards. Long mechanical and electrical life for dependable usage. Supplied with nut and panel seal gasket to maintain IP68 panel sealing.
