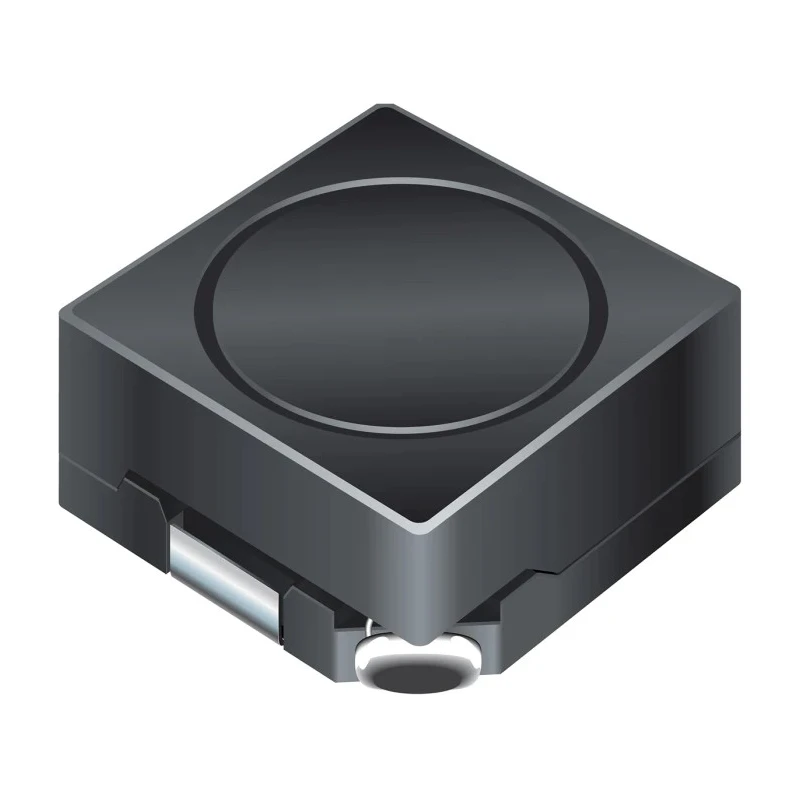

Bourns 0603 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 1.1 A Idc Q16 SRR0603
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.3mm |
| Length | 6.5mm |
| Model | SRR0603 |
| Depth | 6.5mm |
| Packaging | Reel |
| Series | SRR0603 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 1.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 120mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 25MHz |
| Minimum Quality Factor | 16 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a compact 0603 package suitable for surface mounting.
- It offers high quality factor (Q) of 16 for efficient inductive performance.
- Constructed with a ferrite core and wirewound design for reliable magnetic shielding.
- Operates in temperature range from -40°C to 125°C for versatile application environments.
- Complies with RoHS standards ensuring environmental safety.
- Offers low DC resistance of 120 mΩ to minimize power loss.
- Designed for use in DC/DC converters and power supplies in portable communications and consumer electronics.
- Termination style is solder for secure PCB attachment.
Product Description
Bourns SRR0603 shielded wirewound Surface Mount Inductor is designed to deliver 10 μH inductance with ±20% tolerance and a maximum DC current rating of 1.1 A. Featuring a compact 0603 package with a length and depth of 6.5 mm and height of 3.3 mm, this inductor integrates a ferrite core and wirewound construction providing high magnetic shielding and efficient performance. The device maintains stable operation across a temperature range of -40°C to 125°C and has a low DC resistance of 120 mΩ to reduce power loss.
This inductor achieves a quality factor (Q) of 16, making it suitable for high-frequency applications with a maximum self-resonant frequency of 25 MHz. The termination style uses solder connections designed for surface mounting on PCBs using automated reel packaging, optimizing manufacturing efficiency.
Applications include input/output filtering for DC/DC converters, power supplies, and use in portable communications equipment, camcorders, LCD TVs, and automotive car radios, offering robust performance in demanding electronic circuits.
Manufactured with compliance to RoHS environmental standards and featuring molded packaging, the SRR0603 series ensures durability and reliable operation in electronic component assemblies.
This inductor is magnetically shielded to minimize electromagnetic interference. Wirewound construction improves inductance stability under current load. Compact 0603 size supports high density PCB design. Wide operating temperature range suits varied industrial and commercial environments.
RoHS certified ensuring environmental compliance. Reel packaging format supports automated assembly lines. Ferrite core provides efficient magnetic flux containment. Molded design enhances mechanical strength and durability.
Low DC resistance reduces power wastage and heat generation. Suitable for various electronics including portable devices and automotive applications. Explore a broad range of inductors and related components within EnvMart’s Electronics Components category for enhanced solutions in your industrial and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 1.1 A.
It operates within a temperature range of -40°C to 125°C.
This inductor comes in a compact 0603 package, measuring 6.5 mm in length and depth, and 3.3 mm in height.
The DC resistance is 120 mΩ, which helps minimize power loss.
It has a minimum quality factor (Q) of 16, suitable for high-frequency applications.
The core material is ferrite, which provides efficient magnetic shielding.
The termination style is solder, designed for secure attachment to PCBs.
The maximum self-resonant frequency is 25 MHz.
It is designed for use in DC/DC converters, power supplies, and portable communications equipment.
Yes, it complies with RoHS standards, ensuring environmental safety.
The country of origin for this inductor is China.
