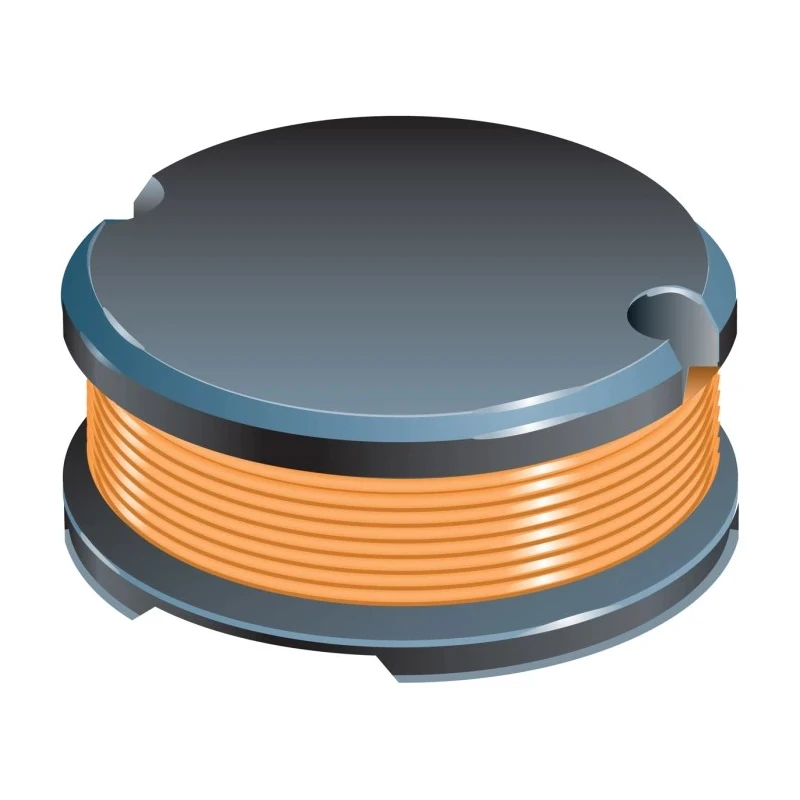

Bourns Wirewound Surface Mount Inductor 100 μH ±10% 1.1A Idc 7.8mm 0805 Package SDR0805

Bourns SDR0805 is a wirewound Surface Mount Inductor designed for electronic applications requiring a compact and reliable component. With an inductance of 100 μH ±10%, it operates efficiently in circuits with a maximum DC current of 1.1 A. The use of a ferrite core material enhances its magnetic performance, while the wirewound construction ensures stability and precision.

The component dimensions are compact at 7.8 mm diameter, 5.3 mm height, and 7.8 mm depth, fitting well within standard 0805 package footprints on PCBs. It is moulded and complies with RoHS standards, affirming its environmental safety and quality. The inductor exhibits a low DC resistance of 0.45 Ω, minimizing power loss and heat generation.

Operating temperature range is from -40°C to 125°C, making it suitable for a variety of industrial, commercial, and consumer electronics environments. The maximum self-resonant frequency of 7 MHz supports its use in high-frequency filtering and power supply applications.

This inductor is primarily used in the input and output stages of DC/DC converters and power supplies, providing reliable energy storage and noise suppression. The tape and reel packaging ensures compatibility with automated placement machinery, improving production efficiency.

Constructed with ferrite core for enhanced magnetic properties. Maximum DC current rating of 1.1 A. Wirewound construction ensures stability and reliability. RoHS compliant for environmental safety. Compact dimensions in 0805 package suitable for surface mount technology.

Low maximum DC resistance of 0.45 Ω reduces power loss. Wide operating temperature range from -40°C to 125°C. Designed for high-frequency applications with 7 MHz self-resonant frequency. Moulded design for mechanical durability.

Ideal for applications in industrial electronics, power supplies, telecommunications, and other electronic circuitry where compactness and performance are critical. Discover more components like this within EnvMart's broad electronics and electricals catalog.
