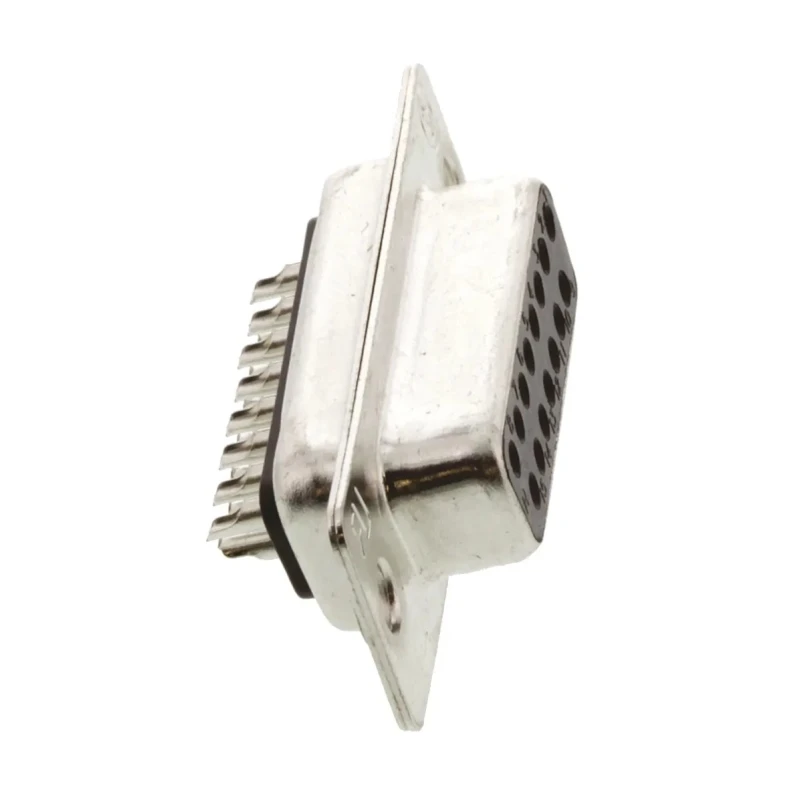

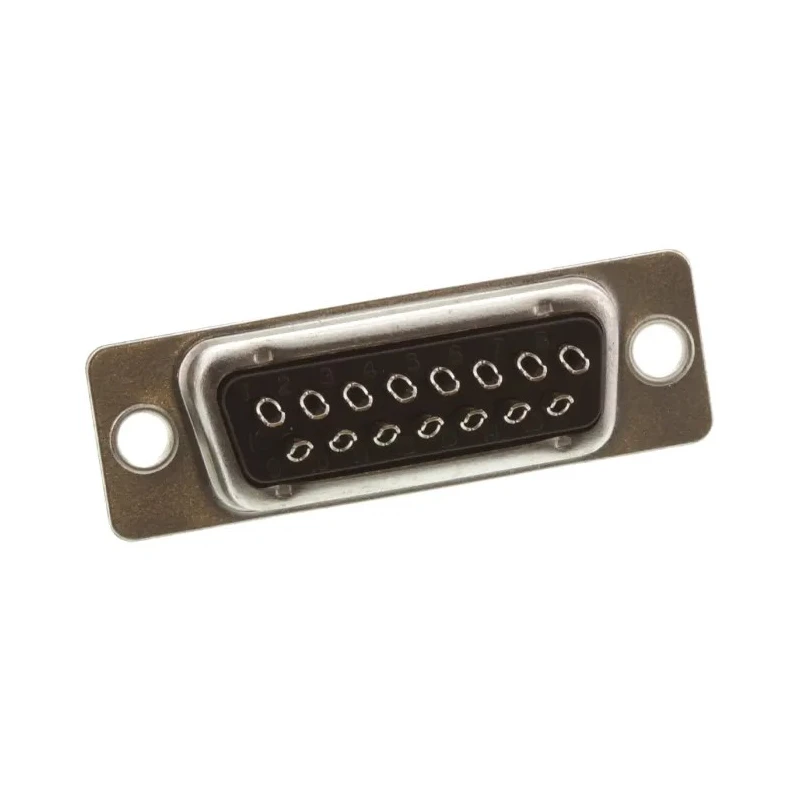

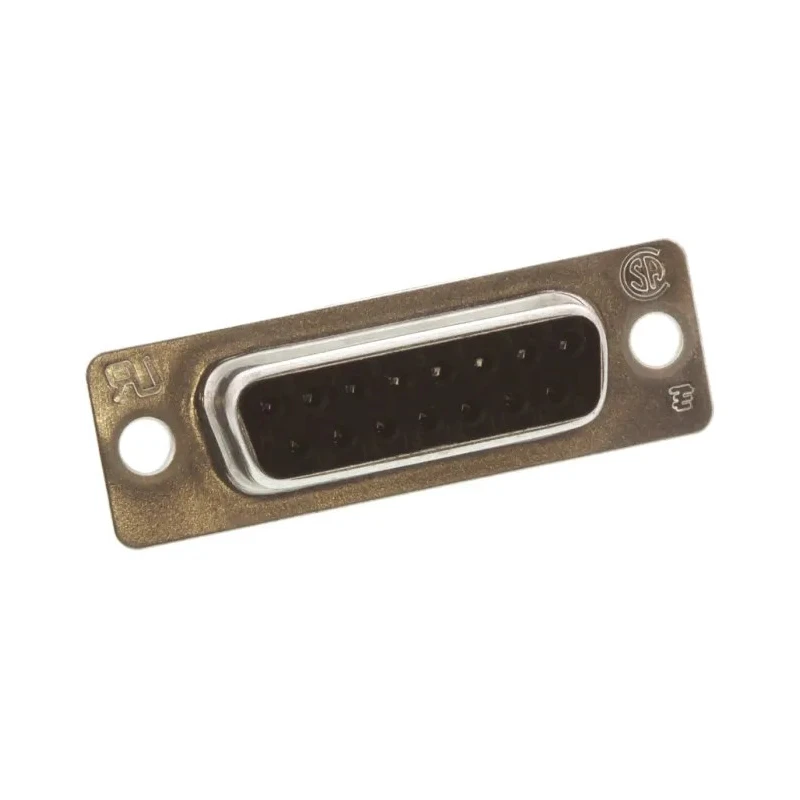

TE Connectivity AMPLIMITE HD-20 15 Way Straight Panel Mount D-Sub Connector Female 250V 3A 5-747909-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Provides 15 contacts with 2.77 mm pitch for precise connectivity.
- Rated for 250 volts and 3 amps to handle moderate current loads.
- Features a robust steel housing with gold over nickel plated phosphor bronze contacts for durability.
- Designed for panel mount installation with a straight orientation.
- Supports operating temperatures from -55°C to 105°C for wide temperature resilience.
- Termination type is solder, suitable for secure connections.
- Offers EMI shielding and ESD insulation with tin plated shells and thermoplastic inserts.
- Compatible with AMPLIMITE HD-20 series connectors for versatile system integration.
Product Description
TE Connectivity 5-747909-2 AMPLIMITE HD-20 15 Way Straight Panel Mount D-Sub Connector Female is engineered for high-density communication and data interface applications. It offers 15 female contacts arranged with a 2.77 mm pitch in a robust steel shell, ensuring reliable electrical connections at up to 250 volts and 3 amps. The connector features gold over nickel plating on phosphor bronze contacts to guarantee corrosion resistance and superior conductivity.
The connector is designed for panel mounting with a straight orientation, facilitating straightforward installation in electronic enclosures. It supports a broad operating temperature range from -55°C to 105°C, making it suitable for demanding industrial and electronic environments.
The housing incorporates tin plated steel for enhanced EMI shielding and ESD protection, while the 94V-0 rated thermoplastic inserts provide electrical insulation and durability. The solder termination type ensures a secure connection to cables or circuits.
This AMPLIMITE HD-20 series connector is compatible with HDE, HDF, HDP, and other HD-20 board mount connectors, offering flexible system expansion capabilities. Accessories such as cable clamps and backshells are available to complete the installation.
Widely used in industrial, communication, data processing, and electronics manufacturing sectors, this connector supports critical signal integrity and mechanical robustness requirements.
15 contacts with 2.77 mm pitch ensure precise signal distribution. Steel housing with tin plating provides EMI shielding and robust enclosure protection. Gold over nickel plated phosphor bronze contacts for corrosion resistance.
Panel mount, straight orientation design facilitates mounting in control panels. Solder termination supports secure and durable cable connections. Operates reliably between -55°C and 105°C for diverse applications. Compatible with related AMPLIMITE HD-20 series connectors.
Perfect for industrial electronics, communication, and data interface requirements. Explore EnvMart's extensive range of TE Connectivity connectors for your industrial and electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250 volts and 3 amps, making it suitable for moderate current loads.
It features 15 contacts arranged with a pitch of 2.77 mm for precise connectivity.
The housing is made of steel, and the contacts are phosphor bronze with gold over nickel plating for corrosion resistance and conductivity.
It operates reliably within a temperature range of -55°C to 105°C, suitable for diverse applications.
The termination type is solder, ensuring a secure connection to cables or circuits.
This model is designed for panel mount installation with a straight orientation.
Yes, it is compatible with HDE, HDF, HDP, and other HD-20 board mount connectors, allowing for versatile system integration.
This connector has a female contact gender, suitable for connecting to male counterparts.
The housing incorporates tin plating for enhanced EMI shielding and ESD protection, while the thermoplastic inserts provide electrical insulation.
This model features a D-Sub shell size A, which is standard for many applications.
The connector is manufactured in India, ensuring compliance with local manufacturing standards.
It is widely used in industrial, communication, data processing, and electronics manufacturing sectors, supporting critical signal integrity requirements.
