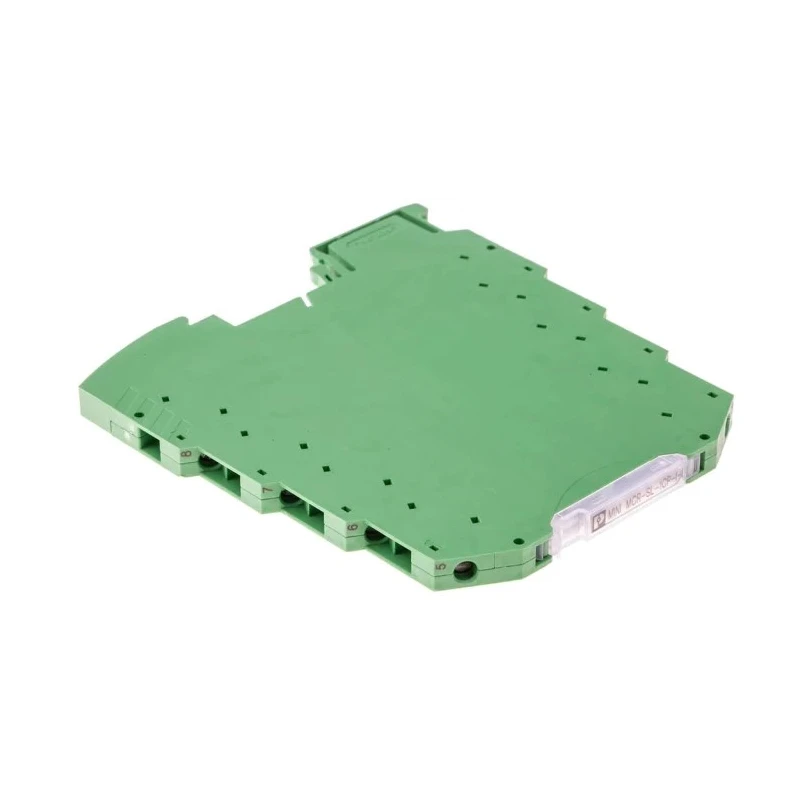

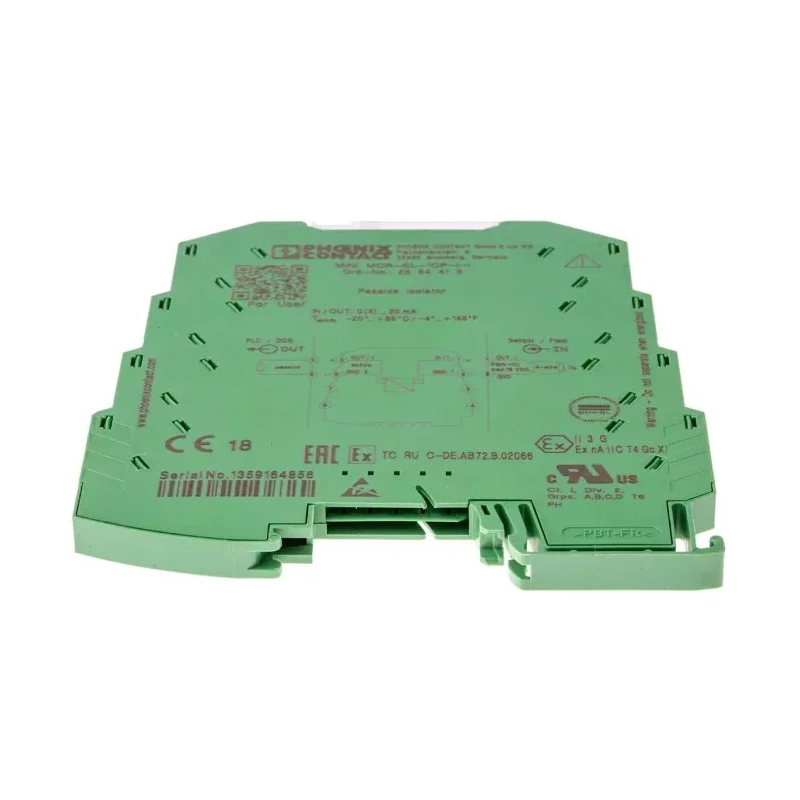

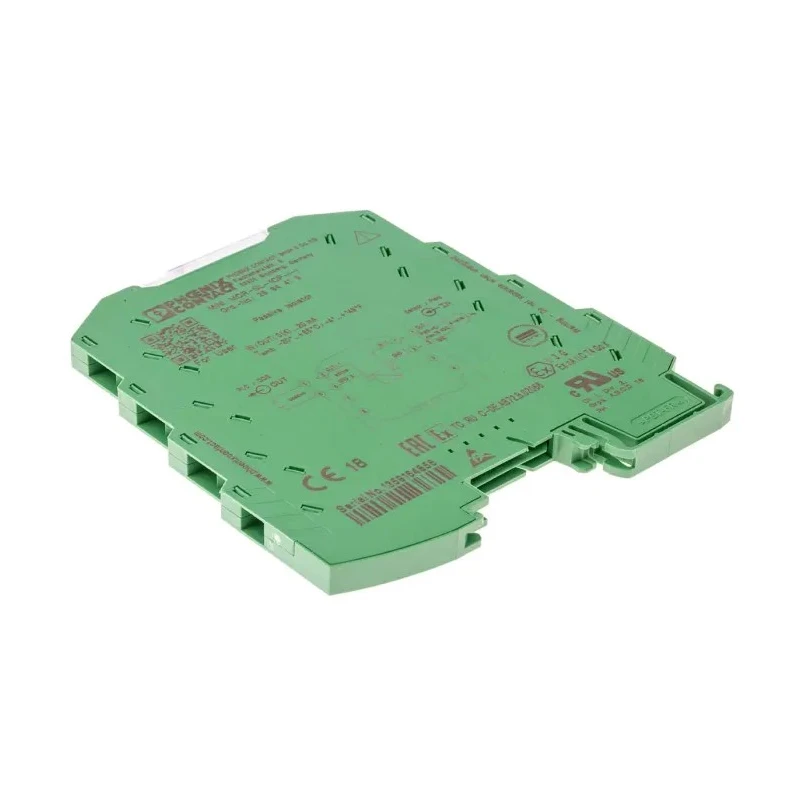

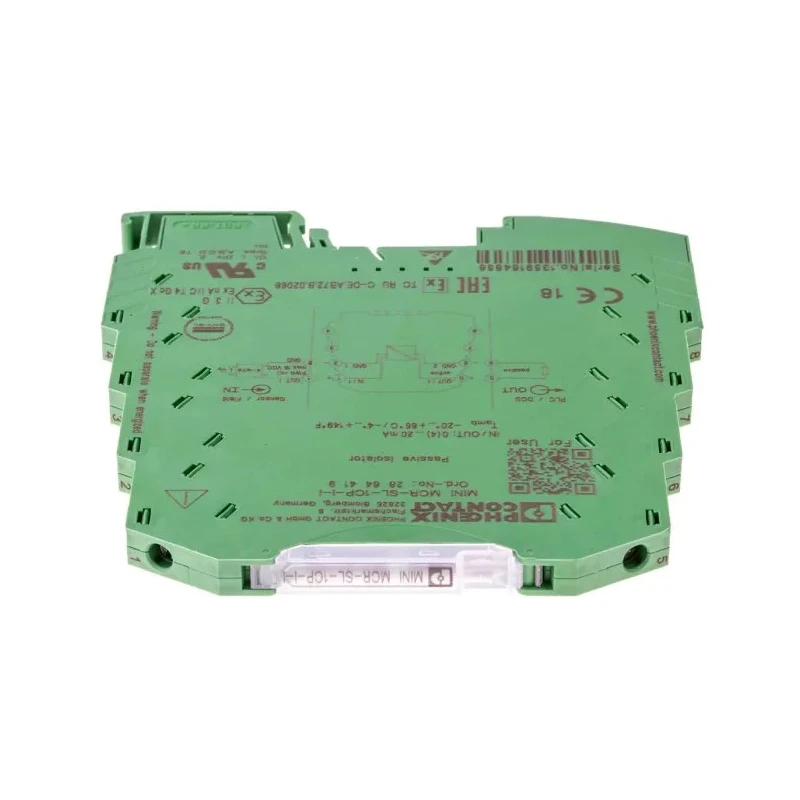

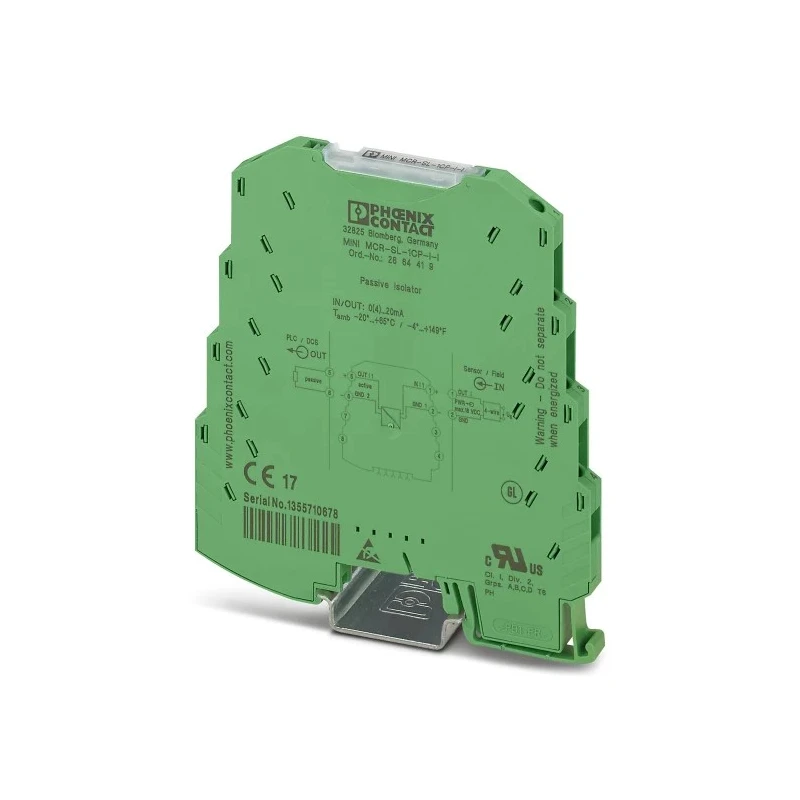

Phoenix Contact Signal Conditioner Current Input Current Output 18V Supply ATEX 2864419

Phoenix Contact 2864419 Signal Conditioner is a high-quality passive loop-powered isolator designed specifically for current input and output signals in industrial automation and control systems. Operating on a supply voltage of 18V, this signal conditioner ensures accurate and noise-free transmission of 0 to 20 mA signals while providing ground-loop isolation for complex electrical setups.

Its compact build measures just 6.2 mm (width) by 93.1 mm (height) and 102.5 mm (depth), allowing efficient mounting on standard 35mm DIN rails in control panels with limited space. The screw terminals support wiring with conductors sized between 0.2 and 2.5 mm², facilitating easy installation and secure connections.

Designed to operate in environments with temperature extremes from -20°C up to 65°C, the unit is suitable for challenging industrial conditions. Its IP20 rating provides touch protection and shields internal components from intrusion by tools greater than 12 mm, ensuring operator safety during maintenance.

This single-channel signal conditioner incorporates a 1.5 kV AC test voltage capability, offering robust protection against electrical surges and disturbances. Conformance to numerous standards, including EN 61000-4-2, -3, -4, -5, -6, -6-2, UKCA, CE, DNV GL, and UL 508, underscores its reliability and compliance for varied industrial applications.

Designed for current input and output signals between 0 to 20 mA. Compact DIN rail mounting with space-saving dimensions. Operates within a wide temperature range (-20°C to 65°C) for durability. Screw-type terminals accommodate 0.2 - 2.5 mm² conductors.

IP20 protection rating for safe handling and operation. Loop-powered isolator eliminates external power requirements. 1.5 kV AC test voltage ensures surge protection. Certified under EN standards, UKCA, CE, DNV GL, and UL 508.

Ideal for industrial automation, circuit monitoring, and hazardous areas certified with ATEX. Manufactured in Germany with proven quality standards.

This Phoenix Contact signal conditioner is engineered for industrial, automation, manufacturing, and hazardous location applications where reliable signal conditioning is crucial. Its compact profile and versatile standards compliance make it an excellent choice for enhancing measurement accuracy and system safety in varied installations.
