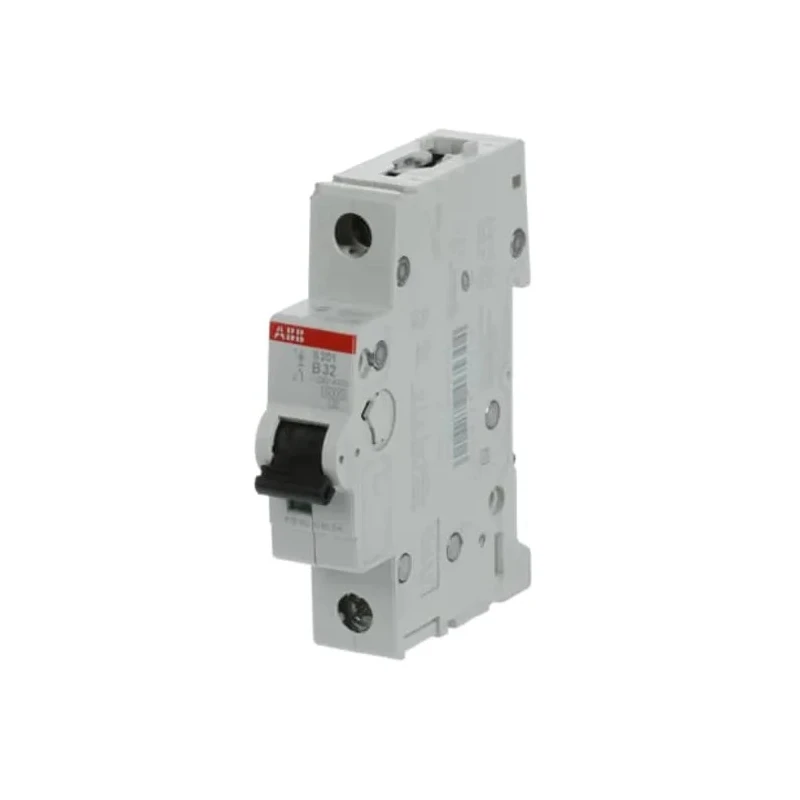

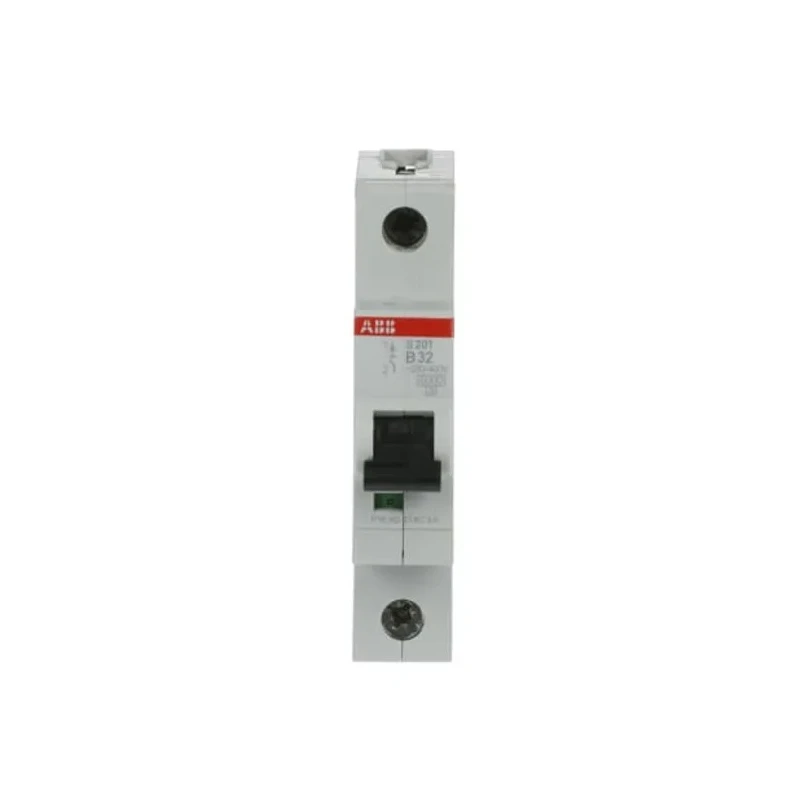

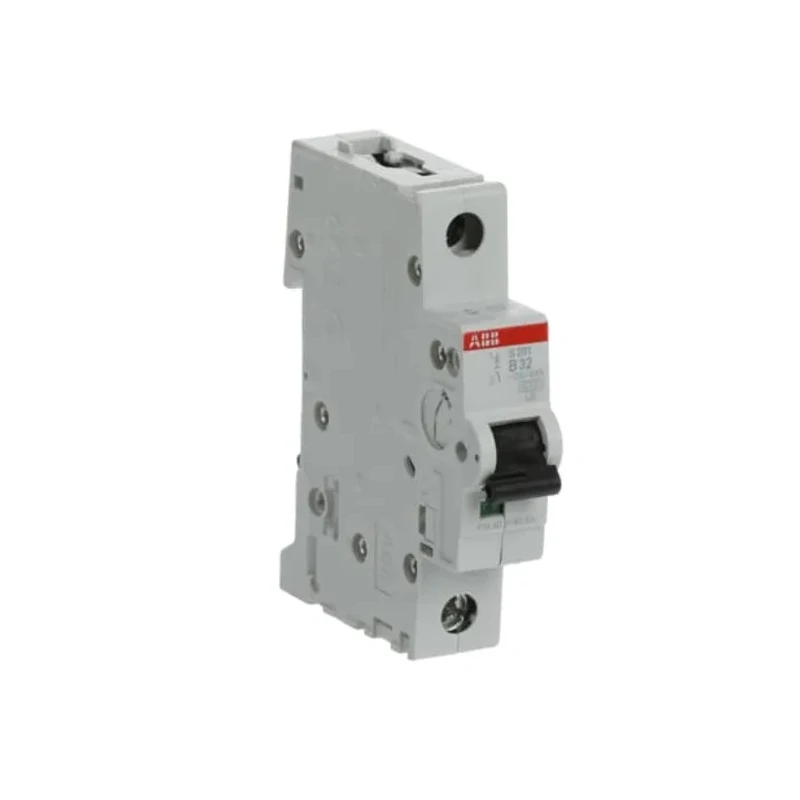

ABB Miniature Circuit Breaker 1-Pole 32A Type B 253V AC 72V DC Electromechanic Thermal Tripping 2CDS251001R0325 - S201B32

ABB 2CDS251001R0325 - S201B32 Miniature Circuit Breaker 1-Pole 32A Type B is engineered for high performance in compact electrical applications. It includes electromechanic thermal tripping features to protect circuits against overload and short circuit events efficiently. Its rated AC voltage of 253V and DC voltage of 72V allow it to be used in both AC and DC circuits.

The compact design with 88mm height, 17.5mm width, and 88mm depth dimensions fits seamlessly on DIN rails, facilitating quick installation without require tools. The screw terminal type connection ensures secure electrical contacts. This MCB complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring reliable operation and safety.

Featuring type B tripping characteristics, the breaker trips when the current reaches three to five times the rated 32A load, suitable for protecting lighting circuits and small inductive loads commonly found in residential and commercial installations. The insulated thermoplastic housing protects users from electric shocks and offers impact resistance. Its IP20 and IP40 ratings enhance safety by providing protection against solid foreign objects and splashing water.

The breaker operates reliably over a wide temperature range from -25°C to +55°C, making it suitable for demanding industrial environments. This product is commonly used in engineering workshops, factory floors, and storage facilities to ensure circuit integrity and personnel safety.

Designed for single-pole circuit protection with 32A current rating. DIN rail mounting enables fast and simple tool-free installation. Wide operating temperature range ensures performance in various environments. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards.

Breaking capacity of 6kA provides protection against high short circuit currents. Type B tripping characteristic guards against small surges. Equipped with screw terminals for secure electrical connections. Insulated thermoplastic housing offers safety and durability.

IP20 and IP40 ratings for protection against dust and moisture. Ideal for use in industrial, commercial, and residential electrical installations.
