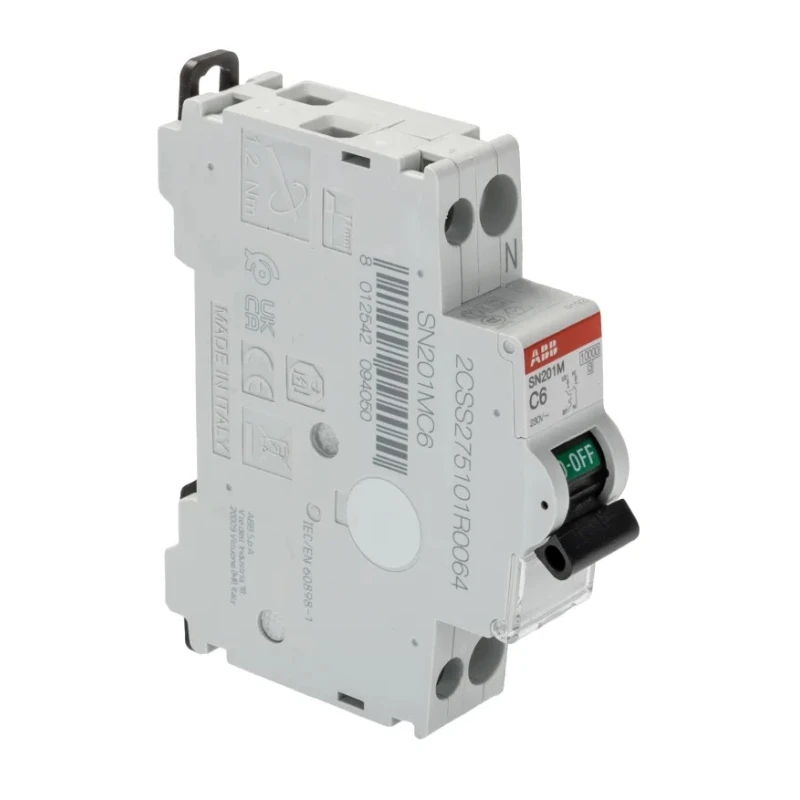

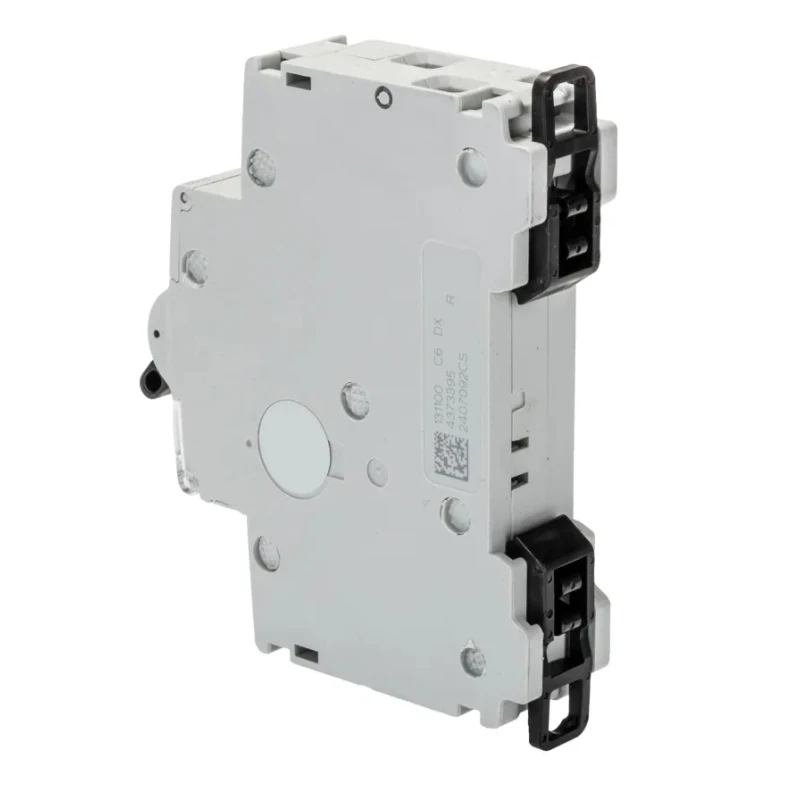

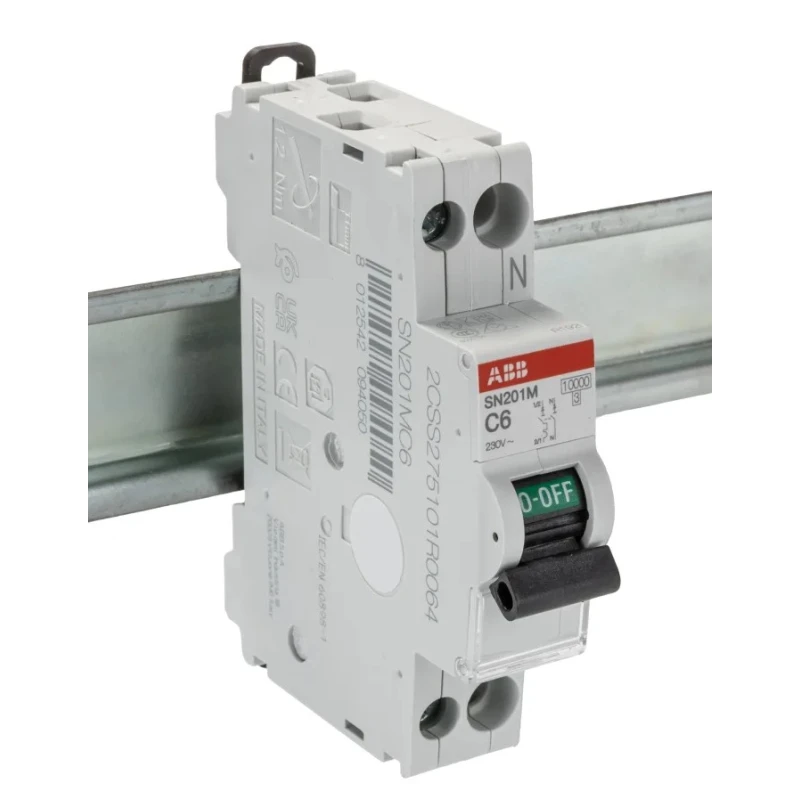

ABB Miniature Circuit Breaker 1-Pole 6A Type C 230V AC 10kA Breaking Capacity SN201
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 69mm |
| Model | SN201 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | SN201 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Reset Actuator Type | Lever |
Key Features
- Rated current of 6 A for effective circuit protection.
- Type C tripping characteristic suitable for resistive and inductive loads.
- Breaking capacity of 10kA ensures strong fault interruption.
- Easy DIN rail mounting enables quick installation.
- Screw terminals provide secure wiring connections.
- Lever reset actuator allows simple manual resetting after tripping.
- Compact design with dimensions 69mm height, 18mm width, and 69mm depth.
- Compliance with IEC/EN 60898-1 standards ensures safety and reliability.
Product Description
ABB SN201 Miniature Circuit Breaker 1-Pole 6A Type C, rated at 230V AC and featuring a 10kA breaking capacity, is designed for electrical safety in commercial and industrial environments. It safeguards circuits against overloads and short circuits with a combination of thermal and electromagnetic tripping mechanisms.
This circuit breaker is part of the ABB SN201 series and offers robust performance with a current rating of 6 A and type C tripping characteristics suitable for a broad range of resistive and inductive loads. It easily mounts on DIN rails and includes screw terminal connections for secure wiring. The lever reset actuator facilitates quick reset after fault clearance.
The compact dimensions of 69mm height, 18mm width, and 69mm depth make it suitable for dense panel installations. It is certified to IEC/EN 60898-1 standards, ensuring compliance with international safety requirements. The device has IP20 and IP40 protection ratings, providing safety against accidental contact and ingress of solid objects.
This Miniature Circuit Breaker is ideal for commercial electrical protection in office buildings and industrial settings requiring reliable circuit management and quick short circuit response. It can also be integrated within automation systems for dependable protection.
Rated current of 6 A for effective circuit protection. Type C tripping characteristic suitable for resistive and inductive loads. Breaking capacity of 10kA ensures robust fault interruption. Easy DIN rail mounting for convenient installation.
Screw terminal connections for secure wiring. Lever reset actuator for simple fault reset. Compact size with 69mm height, 18mm width, and 69mm depth. Certified to IEC/EN 60898-1 safety standards. IP20 and IP40 rated for protection against ingress and contact.
Explore the broad range of circuit breakers and electrical protection solutions in the ABB series and ensure efficient, safe electrical system operation with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of the ABB Miniature Circuit Breaker SN201 is 10kA, ensuring strong fault interruption.
This model has a rated current of 6 A, providing effective circuit protection.
It features Type C tripping characteristics, suitable for both resistive and inductive loads.
The dimensions of this circuit breaker are 69mm in height, 18mm in width, and 69mm in depth.
It is designed for easy mounting on DIN rails, facilitating quick installation.
This circuit breaker uses screw terminals for secure wiring connections.
The rated AC voltage for the ABB Miniature Circuit Breaker SN201 is 230V.
It has IP20 and IP40 protection ratings, providing safety against accidental contact and ingress of solid objects.
This model is certified to IEC/EN 60898-1 standards, ensuring compliance with international safety requirements.
It features a lever reset actuator, allowing for simple manual resetting after tripping.
It is ideal for commercial electrical protection in office buildings and industrial settings requiring reliable circuit management.
This circuit breaker is part of the ABB SN201 series, designed for robust performance in electrical safety.
