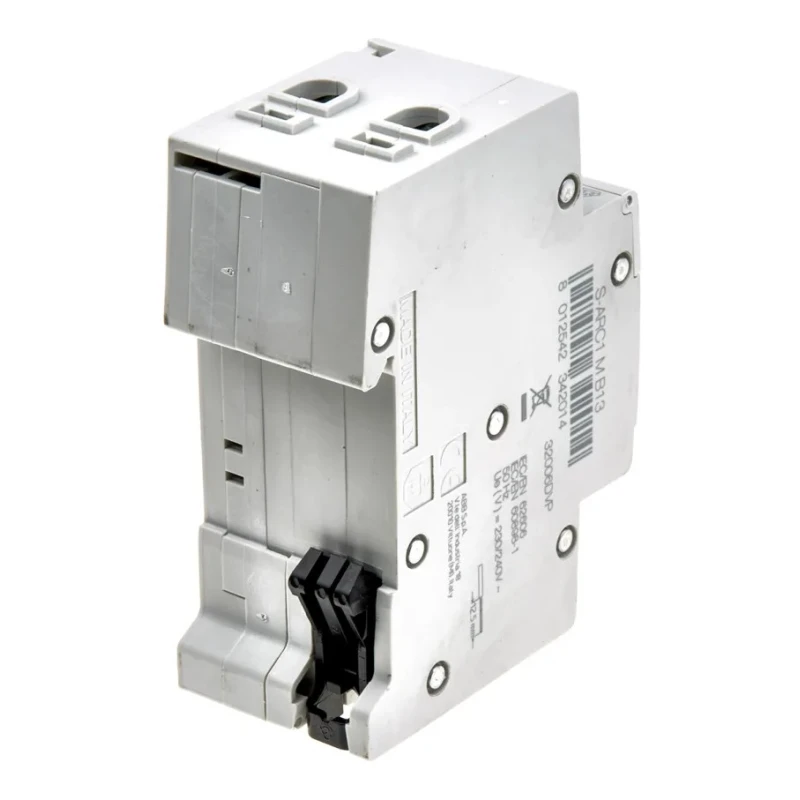

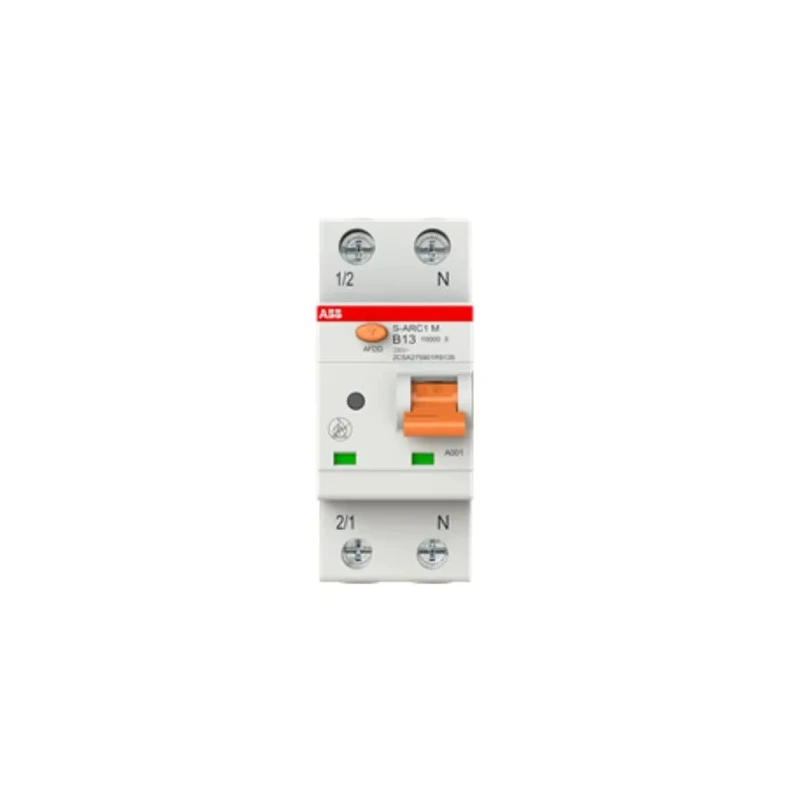

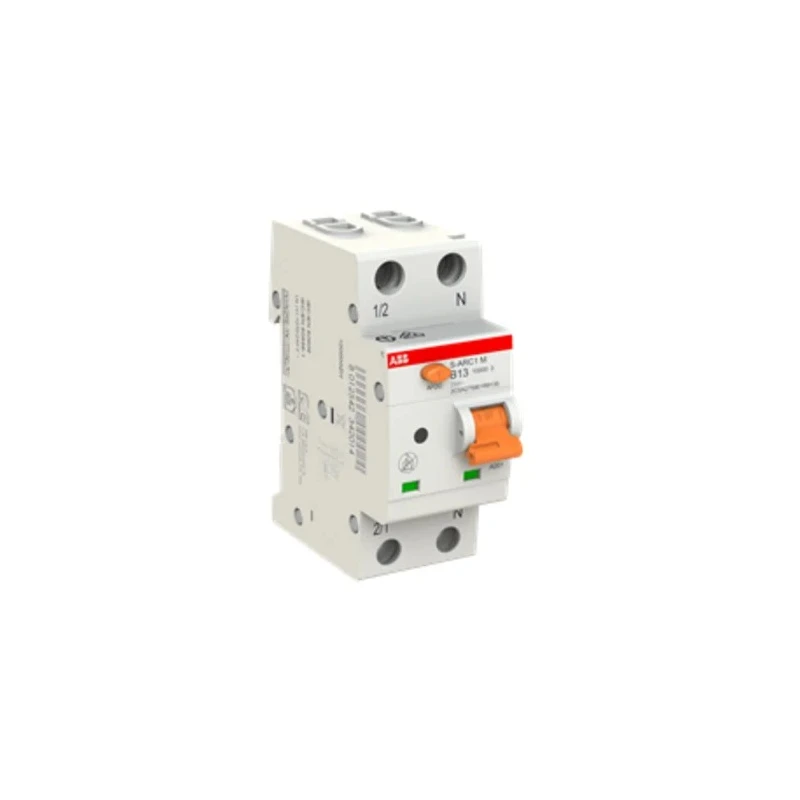

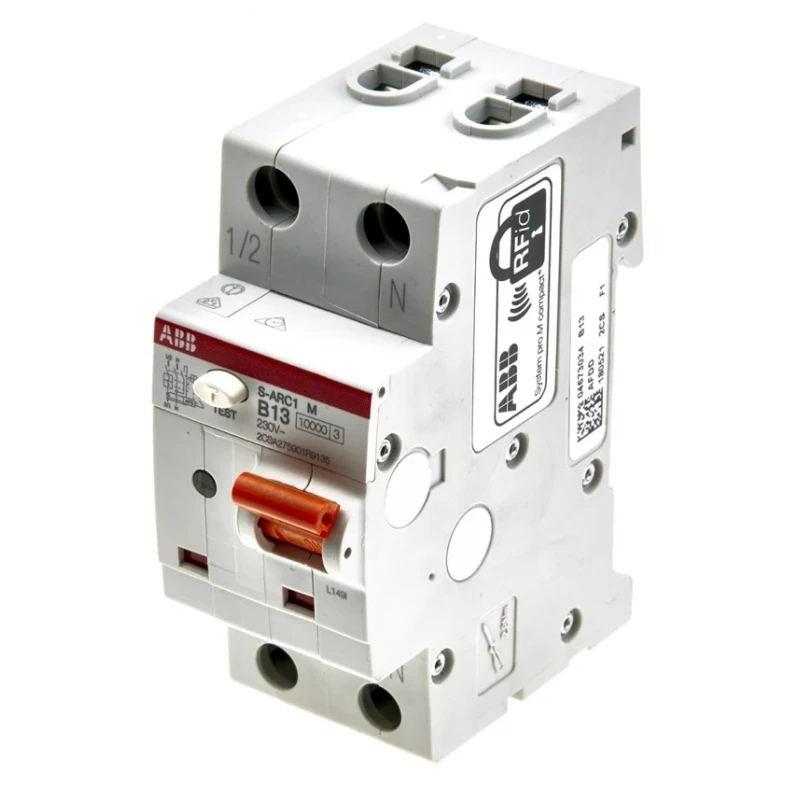

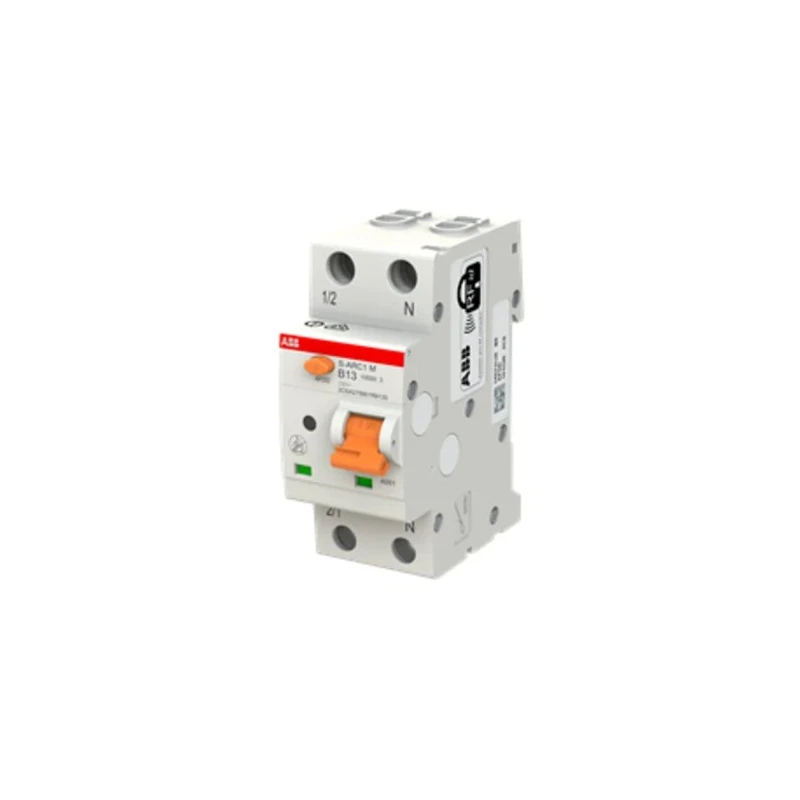

ABB Miniature Circuit Breaker 1-Pole 13A Type B 240V AC 10kA Breaking Capacity ARC1

ABB ARC1 Miniature Circuit Breaker (MCB) 1-Pole, 13A, Type B is designed for reliable protection of electrical circuits up to 240 volts AC. This device efficiently safeguards residential and commercial installations by providing effective overload and short circuit protection.

The MCB features a thermal magnetic tripping mechanism with Type B tripping characteristics, offering prompt response to overloads and ensuring sensitive equipment safety. It has a breaking capacity of 10 kA which protects circuits from high short-circuit currents. The compact 1-pole design with 35mm width allows space-efficient DIN rail mounting in distribution boards.

Equipped with screw terminals, the S-ARC1 M ensures secure electrical connections, reducing risks from loose wiring that can cause overheating. The toggle switch actuator enables simple manual reset after tripping events, enhancing usability. IP40 and IP20 ratings provide protection against dust and accidental contact, suitable for typical indoor electrical environments.

This circuit breaker complies with key international standards IEC/EN 62606 and IEC/EN 60898-1, affirming quality and safety standards. Its compact form factor with 85mm height and 69mm depth optimizes installation space on DIN rails.

Applications include protecting electrical distribution boards in residential and commercial buildings, controlling automation system circuits, and managing general electrical installations requiring 1-pole, 13A, Type B protection. The 1+N configuration design supports simultaneous protection of live and neutral lines, improving electrical safety and regulatory compliance.

Offers 13 amp current rating for efficient circuit protection. Type B tripping characteristics ensure sensitive overload response. Compact 1-pole design suitable for DIN rail mounting. Screw terminals provide secure and reliable connections.

High breaking capacity of 10 kiloamperes for short circuit protection. Toggle switch actuator allows easy manual reset. IP40 and IP20 ratings ensure suitable protection against dust and touch. Conforms to IEC/EN 62606 and IEC/EN 60898-1 standards.

Compact dimensions optimized for installations. Manufactured in Italy ensuring quality and compliance.

This MCB is essential for industrial, commercial, and residential electrical circuit management, offering dependable protection against overloads and short circuits. EnvMart customers can explore more Miniature Circuit Breakers and related components for comprehensive circuit protection solutions.
