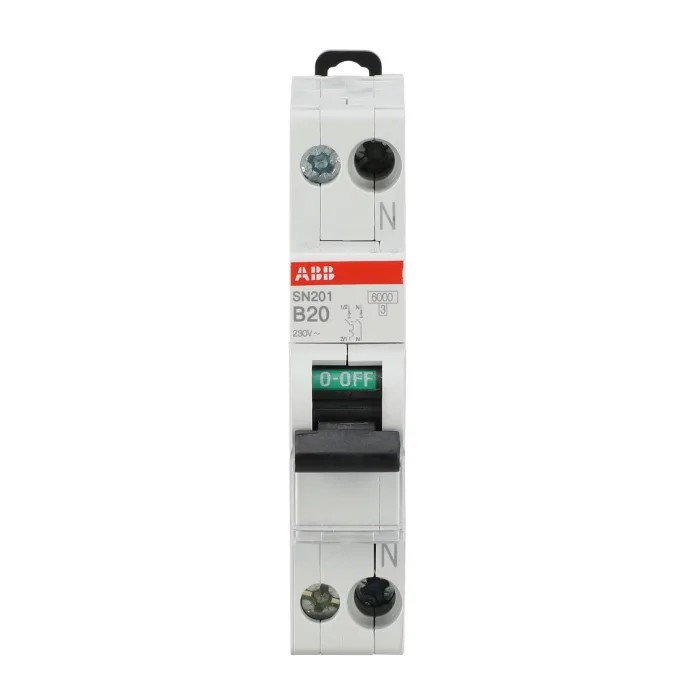

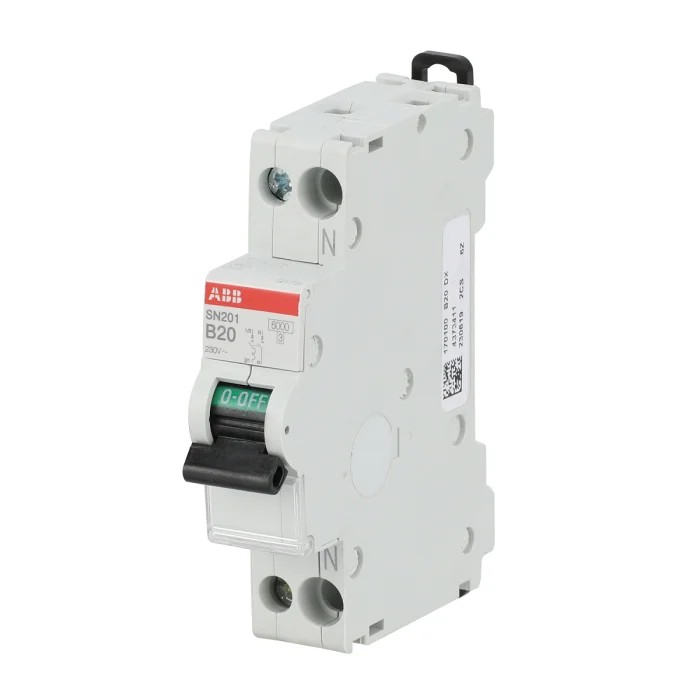

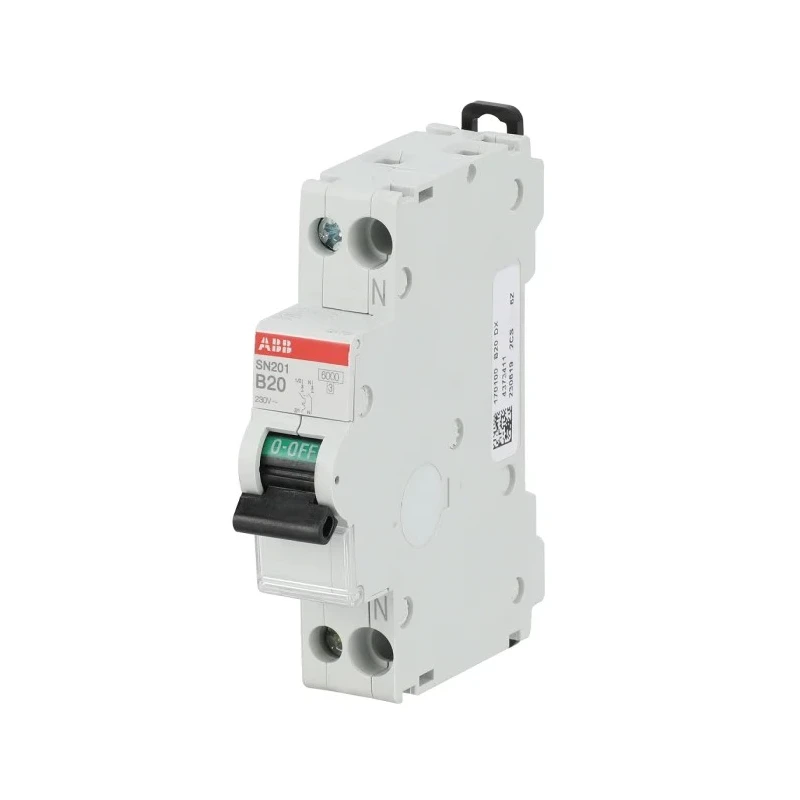

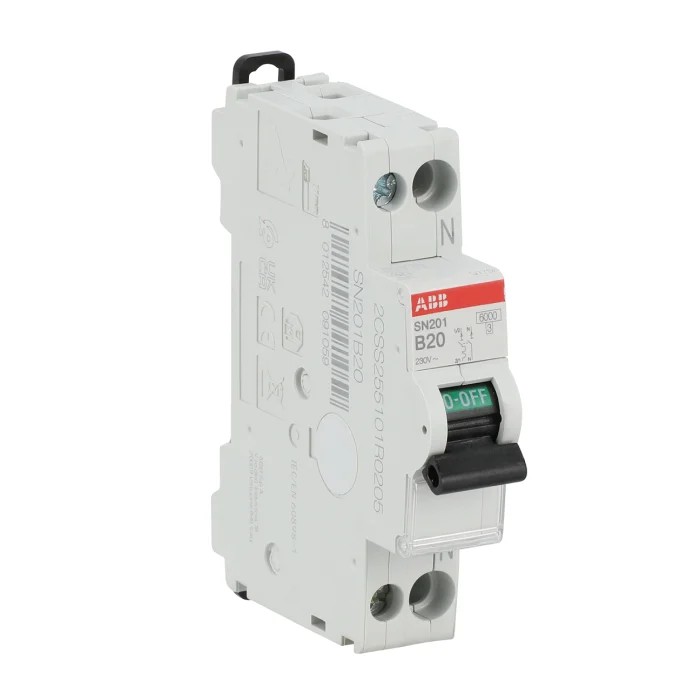

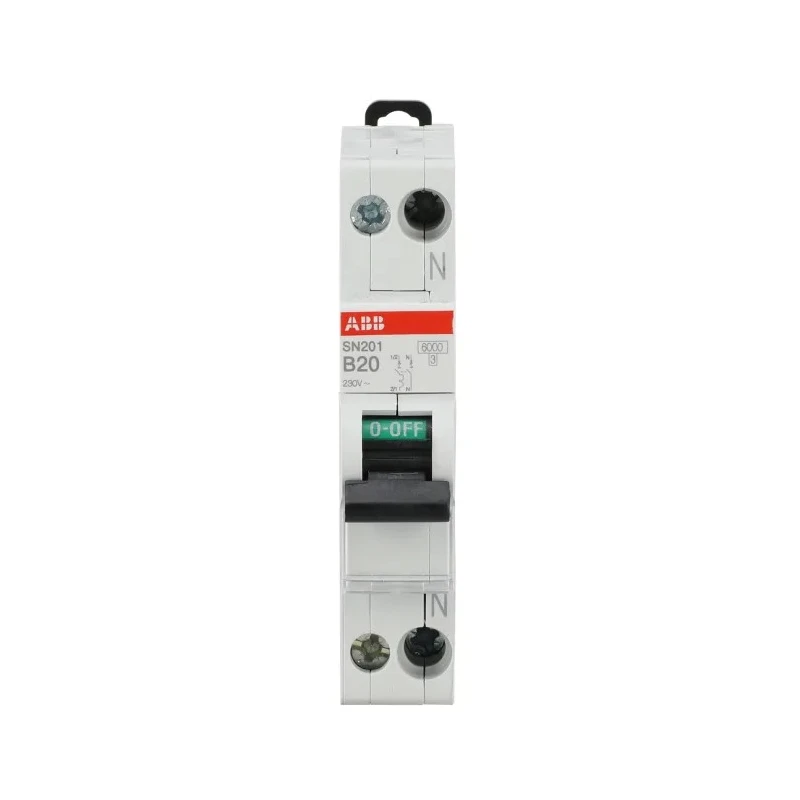

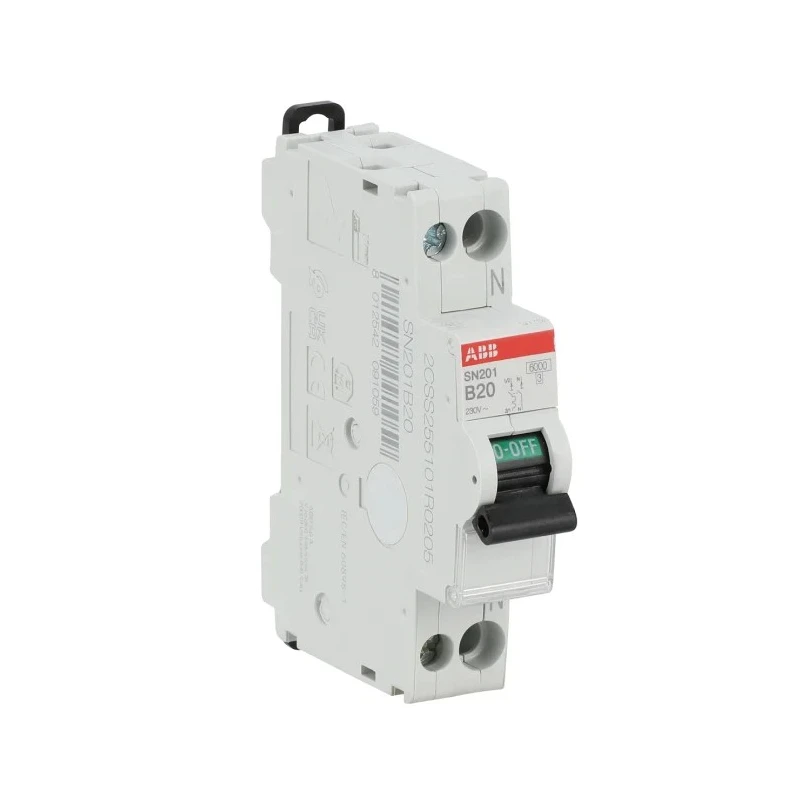

ABB Miniature Circuit Breaker 1-Pole 20A Type B 400V AC 6 kA Breaking Capacity SN201

ABB SN201 Miniature Circuit Breaker model SN201 is a new, high-quality electrical protection device designed for industrial, commercial, and residential use. With a single pole configuration, this MCB provides reliable circuit protection for a 20 amp current rating at a 400V AC supply voltage. It delivers a breaking capacity of 6 kiloamperes, ensuring safety during fault conditions and short circuits.

The device features Type B tripping characteristics, allowing rapid disconnection in case of overloads or short circuits commonly found in residential settings and inductive load circuits such as motors and transformers. The toggle switch actuator provides a clear visual indication of the breaker's status and enables quick manual reset after a trip event.

The SN201 series MCB is mounted on a standard DIN rail, facilitating integration into electrical panels with compact dimensions of 18mm width, 85mm height, and 69mm depth. Its screw terminal contact type ensures firm and secure electrical connections even in demanding operating conditions.

ABB has engineered this MCB to comply with IEC/EN 60898-1 standards, guaranteeing international safety and performance benchmarks. The product's IP20 rating offers protection against solid foreign objects and restricts finger access, adding a layer of security in varied installation environments.

In addition to technical excellence, this miniature circuit breaker aligns with ABB's Better World sustainability initiatives, being designed for disassembly and reuse to reduce environmental impact.

Typical applications include electrical panel protection in domestic, industrial machinery, and commercial power distribution systems. Its precise and rapid tripping supports the safe operation of electrical installations by preventing overload damage and electrical faults.

This circuit breaker features a single pole design for protecting one circuit. It has a Type B tripping characteristic suitable for residential and inductive load protection. The breaker operates at 20 amps and fits DIN rail mounting for easy installation.

Screw terminals ensure stable and reliable electrical connections. The toggle reset actuator enables quick and visible circuit reset after trips. Compact dimensions include 18mm width, 85mm height, and 69mm depth. It complies with IEC/EN 60898-1 standards for safety and reliability.

IP20 rating protects against solid objects and limited finger access. Designed for disassembly, supporting sustainability and component reuse. Manufactured in Italy with high quality and performance assurance. Explore a broad selection of ABB Miniature Circuit Breakers and other electrical components at EnvMart for robust protection and efficient power management.
