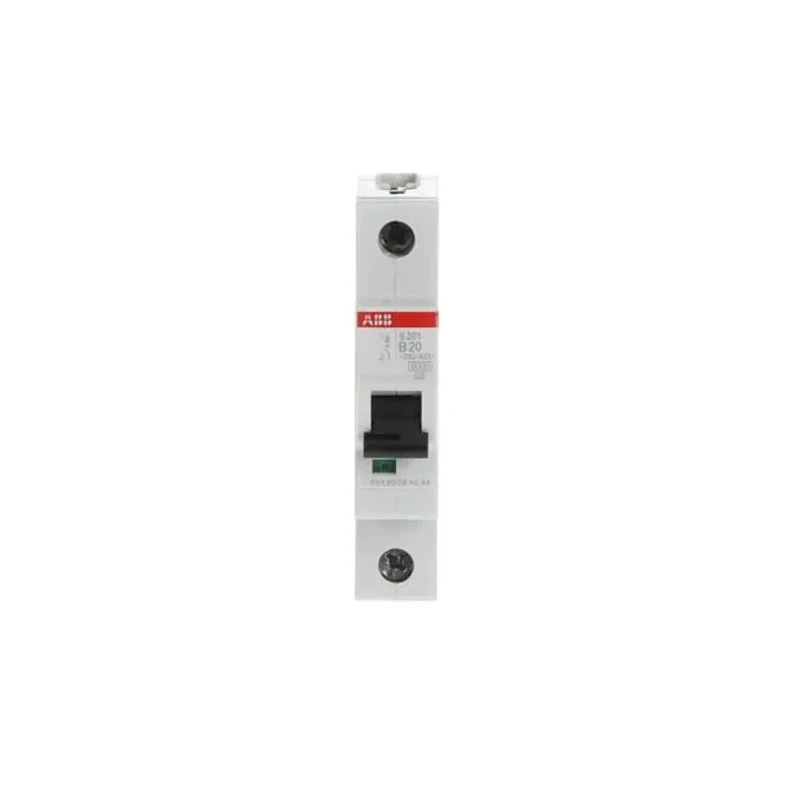

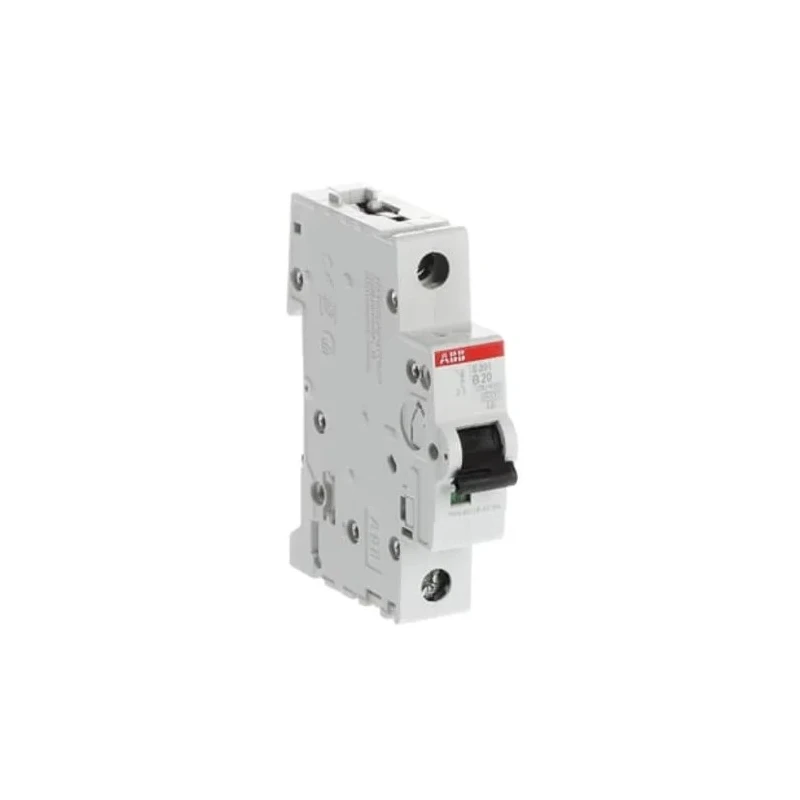

ABB Miniature Circuit Breaker 1-Pole 20A Type B 253V AC 72V DC System Pro M Compact 2CDS251001R0205 - S201B20
Specifications
| Country of Origin | India |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251001R0205 - S201B20 |
| Depth | 76mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Button |
| MK Electric Sentry 20A1P Curve BBrand | MK Electric |
| Crabtree Starbreaker B Series, EMBH, S800 MCB1P, 20A Curve BBrand | Crabtree |
| Eaton Memera ALB MCB, 1P, 20A Curve B, 6 kA Breaking CapacityBrand | Eaton |
Key Features
- Designed with a 1-pole configuration to protect individual circuits effectively.
- Type B tripping characteristic ensures protection against overloads and short circuits.
- Supports both AC and DC inputs for versatile application use.
- Breaking capacity of 6 kA enhances safety by interrupting fault currents quickly.
- Compact DIN rail mount allows easy snap-on installation without tools.
- Features screw terminals with low tightening torque for straightforward wiring.
- IP20 and IP40 ratings provide touch safety and protection against solid objects.
- Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring quality and reliability.
Product Description
ABB 2CDS251001R0205 - S201B20 Miniature Circuit Breaker is a premium product from the System Pro M Compact series designed for effective circuit protection in electrical installations. It operates at rated voltages of 253V AC and 72V DC and features a 1-pole configuration suitable for domestic and light commercial use.
The breaker offers a thermal magnetic tripping mechanism of Type B, which protects wiring and electrical equipment from damage by tripping on overloads or short circuits. It supports both alternating current (AC) and direct current (DC) inputs, enhancing its versatility across applications.
This MCB has a short-circuit breaking capacity of 6 kA and an impulse withstand voltage of 4 kV, providing robust safety margins against electrical faults and surges. Its compact design allows effortless mounting on a standard 35 mm DIN rail, simplifying installation and maintenance. The screw terminals require a low tightening torque of 2.8 Nm, facilitating secure and reliable wire connections.
Compact 1-pole miniature circuit breaker designed for low-voltage protection. Rated for 20A current and type B trip characteristics ideal for household electrical safety. Supports AC up to 253V and DC up to 72V for flexible use cases.
Thermal magnetic trip mechanism ensures rapid disconnection during faults. IP20 and IP40 rated for safe operation and protection against solid particles. Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards guaranteeing international quality.
Easy DIN rail installation and maintenance with efficient screw terminal wiring.
This Miniature Circuit Breaker is recommended for protection of control circuits, lighting installations, and household appliances. It is suitable for industrial, commercial, and residential electrical systems, helping prevent electrical fires and equipment damage.
Explore additional protection devices and automation products in the ABB System Pro M Compact range at EnvMart for trusted quality and uninterrupted electrical safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 6 kA, allowing it to interrupt fault currents effectively.
It is rated for 253V AC and 72V DC, making it suitable for various applications involving both alternating and direct current.
This model features a thermal magnetic tripping mechanism of Type B, which provides protection against overloads and short circuits.
It is designed for DIN rail mounting, allowing for easy snap-on installation without the need for tools.
The dimensions are 88 mm in height, 76 mm in depth, and 17.5 mm in width.
This circuit breaker has an IP rating of IP20 and IP40, providing protection against solid objects and touch safety.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and reliability in electrical installations.
It features screw terminals that require a low tightening torque of 2.8 Nm for secure wiring connections.
This model is suitable for protecting control circuits, lighting installations, and household appliances in industrial, commercial, and residential systems.
The current rating of this miniature circuit breaker is 20A, making it suitable for low-voltage protection.
It features a button type reset actuator, allowing for easy resetting after a trip event.
This model is part of the System Pro M Compact series, designed for effective circuit protection in electrical installations.
