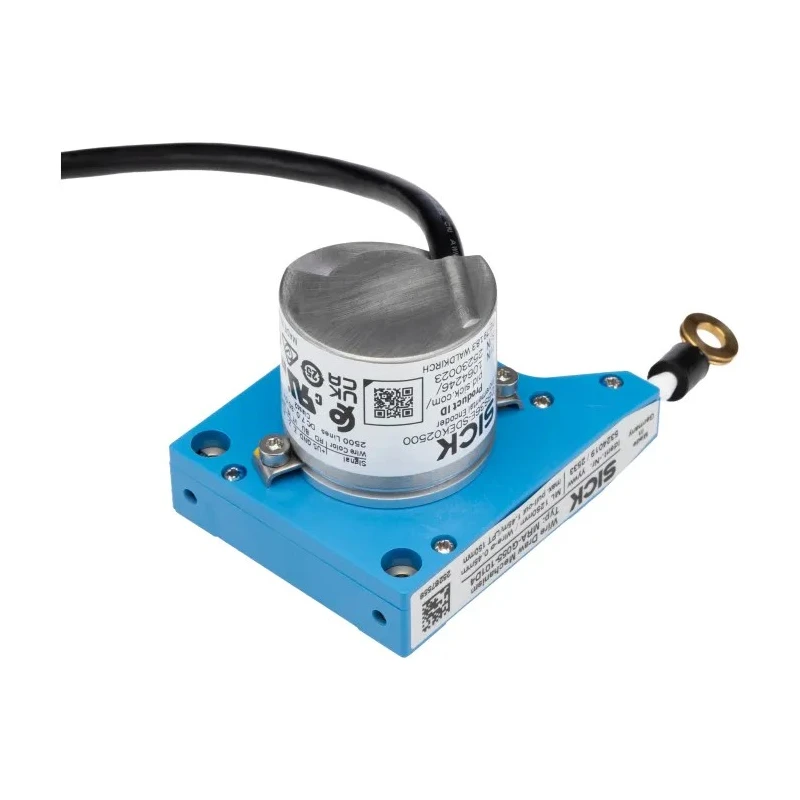

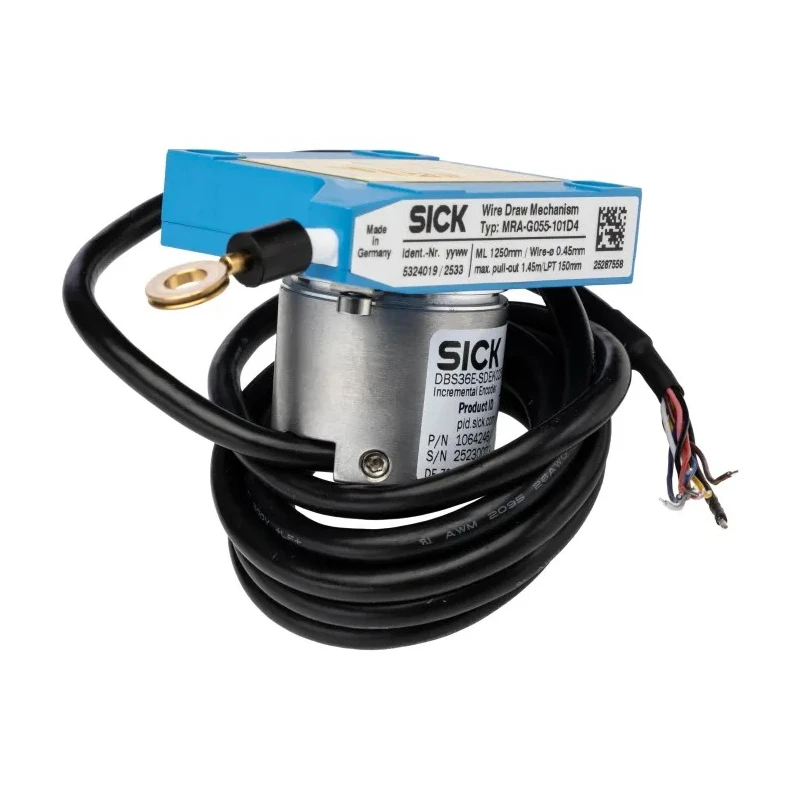

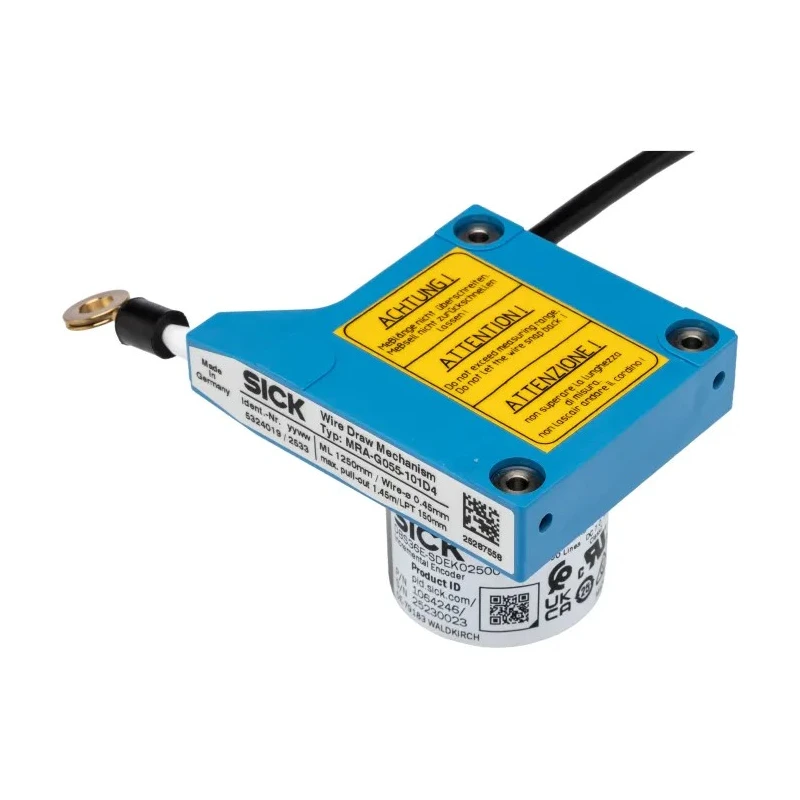

SICK ECOline Series Wire Draw Linear Measuring Encoder 30V, 2500 ppr, HTL Signal, Servo Flange PFG05-E1KM0160 / 1060971
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Model | PFG05-E1KM0160 / 1060971 |
| IP Rating | IP50, IP65 |
| Series | ECOline |
| Overall Width | 55mm |
| Maximum Operating Temperature | 70°C |
| Stroke | 1.25 m |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 6mm |
| Overall height | 55mm |
| Switching Frequency | 300kHz |
| Shaft Type | Servo Flange |
| Terminal type | Cable |
| Interface Type | HTL |
| Pulses per Revolution | 2500ppr |
| Standards/Approvals | cULus, CE |
| Maximum Supply Voltage | 30V |
| Overall Depth | 50mm |
| Encoder Technology | Wire Draw |
| Output Signal Type | HTL |
Key Features
- Provides accurate length measurement with 2500 pulses per revolution.
- Operates within 7 to 30 V supply voltage ensuring versatility.
- Compact dimensions suitable for space-constrained setups.
- Robust IP50 and IP65 rated enclosure protects against dust and moisture.
- Suitable for harsh environments with operating temperatures ranging from -20°C to 70°C.
- Equipped with a 6 mm servo flange shaft for secure mounting.
- Incremental HTL output signal provides precise position feedback.
- High switching frequency of 300 kHz enables rapid response.
Product Description
SICK PFG05-E1KM0160 / 1060971 ECOline Series Wire Draw Linear Measuring Encoder is designed for precise and reliable measurement in industrial automation and mechanical applications. Its high resolution of 2500 pulses per revolution ensures exact position feedback, essential for accurate length and motion measurement.
This encoder features a compact design with an overall height and width of 55 mm and a depth of 50 mm, making it suitable for installation in tight spaces. It operates on a wide supply voltage range from 7 to 30 V and maintains functionality in temperatures from -20°C to +70°C, offering durability in varied operating environments.
The encoder's 6 mm servo flange shaft allows for stable mounting. It outputs incremental HTL signals with a high switching frequency of 300 kHz, supporting fast and accurate motion detection in advanced automation systems.
The enclosure is rated IP50 and IP65, providing robust protection against dust ingress and moisture, which extends its usability to outdoor or demanding industrial environments.
Typical applications include length measurement in automated production lines, robotics for precise position tracking, textile machinery for fabric handling accuracy, packaging equipment for material feed control, and other linear motion control systems needing reliable feedback.
Provides accurate length measurement with 2500 pulses per revolution. Operates within 7 to 30 V supply voltage ensuring versatility. Compact design for installation in confined spaces. IP50 and IP65 rated housing for environmental protection.
Supports high switching frequency of 300 kHz for precise motion control. Wide operating temperature range from -20°C to 70°C. Serves applications in automation, robotics, textile, and packaging industries. Features 6 mm servo flange shaft mounting.
Manufactured in Germany following high-quality standards.
This encoder represents a reliable solution for industrial tasks requiring precise linear position measurement and feedback. Explore EnvMart for a broader range of SICK sensors and linear measuring devices.
Explore more products in our Incremental Encoder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a resolution of 2500 pulses per revolution, ensuring precise position feedback for accurate length measurement.
The encoder operates within a temperature range of -20°C to +70°C, making it suitable for various industrial environments.
It outputs an incremental HTL signal, which is essential for precise motion detection in automation systems.
The overall dimensions are 55 mm in height, 55 mm in width, and 50 mm in depth, which allows for installation in confined spaces.
It operates on a maximum supply voltage of 30V, providing versatility in various applications.
The encoder has a high switching frequency of 300 kHz, enabling rapid response for motion control applications.
It features a 6 mm servo flange shaft for secure mounting, ensuring stability during operation.
It is rated IP50 and IP65, providing protection against dust and moisture, suitable for outdoor and demanding environments.
Typical applications include length measurement in automated production lines, robotics, textile machinery, and packaging equipment.
This encoder is manufactured in Germany, adhering to high-quality standards.
It complies with cULus and CE standards, ensuring it meets safety and performance requirements.

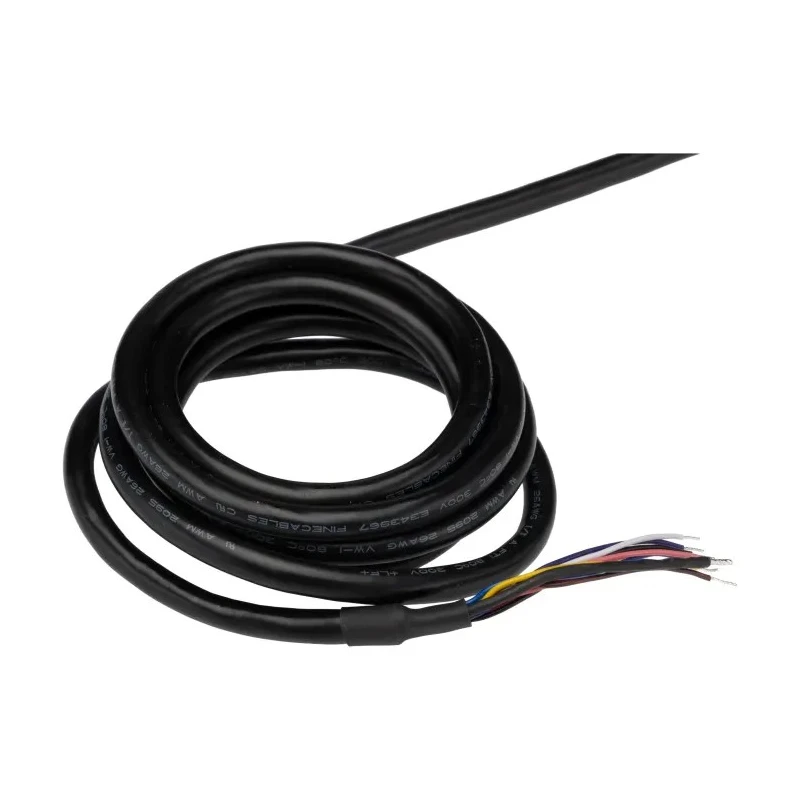

It uses a cable terminal type for connection, facilitating ease of installation.
