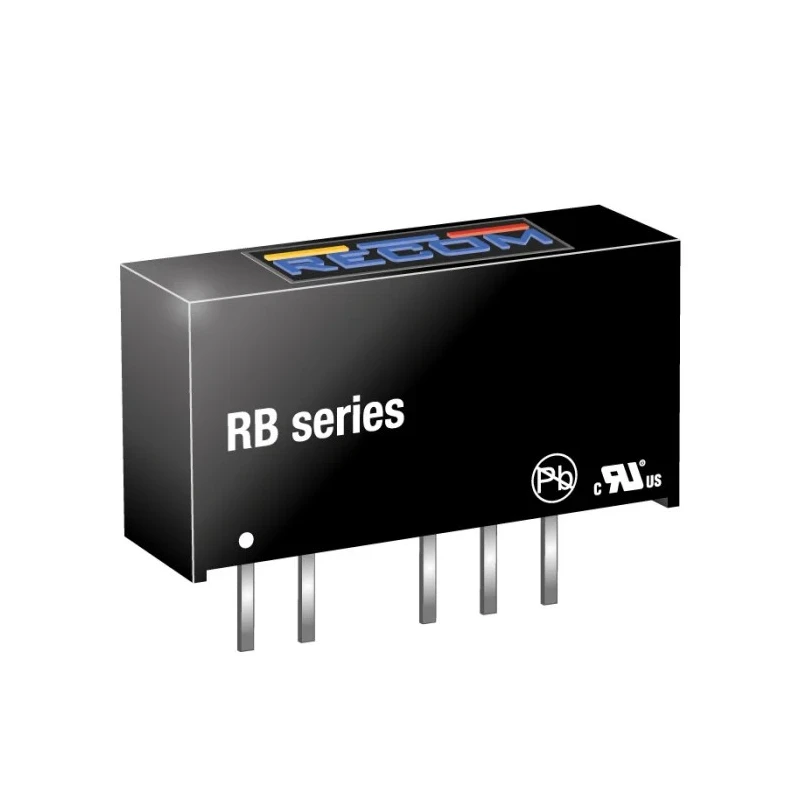

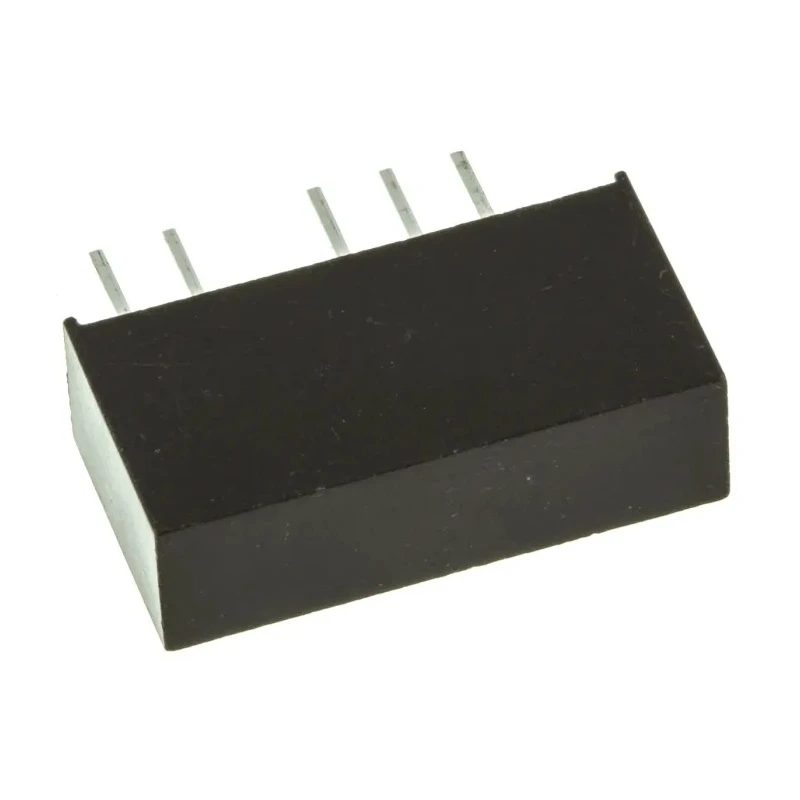

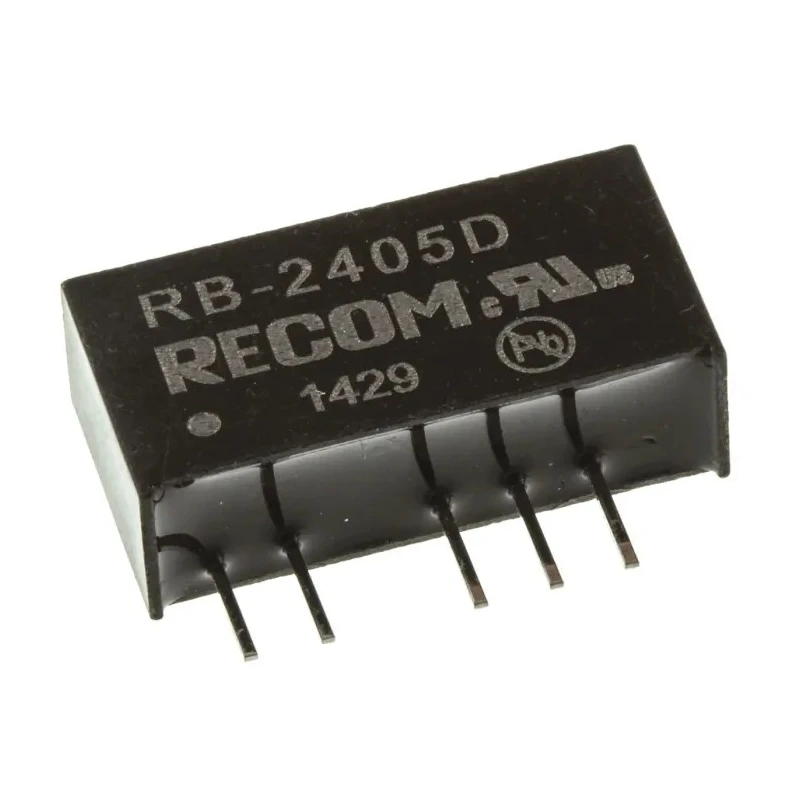

Recom DC/DC Converter, 5 V dc and -5 V dc Output, 100 mA, 24 V dc Input, 1 W Power, Through Hole Mounting, 85 °C RB-2405D

Recom RB-2405D DC/DC Converter is engineered to provide a stable 5 V dc and -5 V dc dual output at 100 mA with a power rating of 1 W, tailored for low-power industrial and electronic equipment applications. This converter is built with through-hole mounting capability, featuring a SIP package with 7 pins for straightforward installation on circuit boards.

Designed to handle an input voltage range from 21.6 V to a maximum of 24 V dc, it ensures consistent power delivery within an extended input tolerance. The converter maintains an efficiency of 85%, significantly reducing waste heat and improving overall power management.

Its operating temperature range of -40 °C to 85 °C allows use in harsh environments including industrial, telecommunications, factory energy management, and other demanding applications. The device also supports operation in relative humidity up to 95%, enhancing reliability in damp environments.

The output features low ripple and noise levels capped at 100 mV peak-to-peak, which is essential for sensitive electronic circuits. Isolation voltage of 500 V ac provides electrical separation to protect against voltage spikes and interference.

Compact and space-saving with dimensions 19.6 mm (L) x 10.2 mm (W) x 10.2 mm (D), and a light weight of 2.2 g, this RECOM converter fits efficiently in constrained spaces on PCBs. It meets RoHS and UL recognition (UR) standards, ensuring compliance with industry safety and environmental requirements.

This converter is ideal for electronic services, telecommunications equipment, factory energy solutions, and other industrial uses requiring reliable and precise low-power DC-DC conversion.

This converter supports an input voltage range of 21.6 V to 24 V dc for robust operation. It features a dual output to power two devices simultaneously. High efficiency of 85% reduces energy losses during operation. Operating temperature range from -40 °C to 85 °C suits industrial and harsh environment applications.

Its SIP package with 7 pins enables easy through-hole mounting on printed circuit boards. Low ripple and noise at 100 mV peak-to-peak ensures stable output voltage. Isolation voltage of 500 V ac provides safety against electrical interference.

Compact dimensions of 19.6 mm length, 10.2 mm width and depth make it space-efficient for embedded systems. Compliance with RoHS and UR standards guarantees quality and safety. Explore our extensive Recom DC/DC Converter range and other power supply products at EnvMart for your industrial and electronic component needs.
