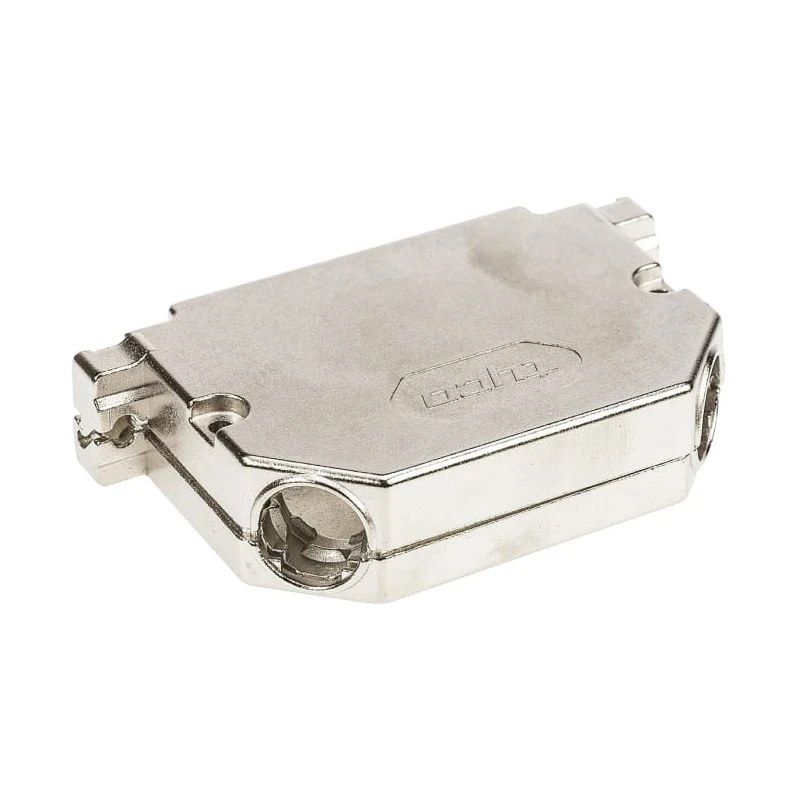

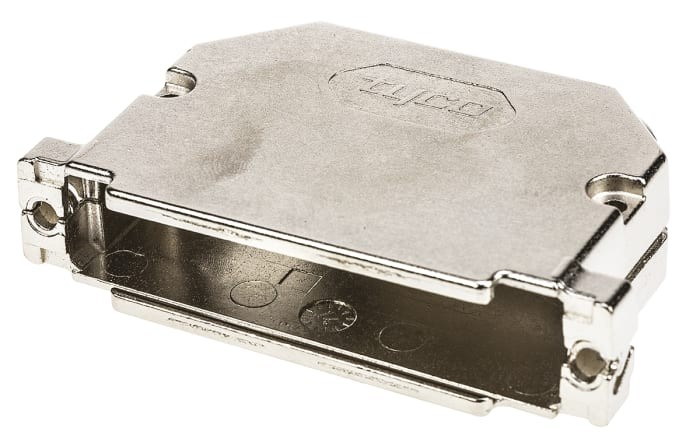

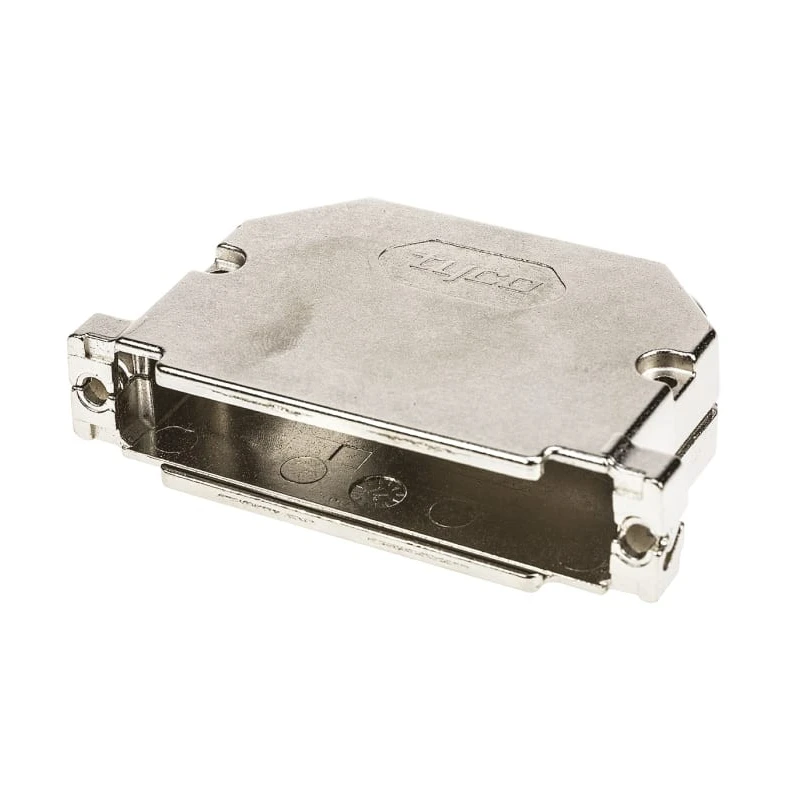

TE Connectivity AMPLIMITE HD-20 Series Gadolinium Zinc Alloy Angled D-Sub Backshell 37 Way 1534811-1

TE Connectivity 1534811-1 is an angled D-Sub backshell from the AMPLIMITE HD-20 series featuring a gadolinium zinc alloy housing with metallised plating, offering robust mechanical protection and excellent electrical screening. With 37 contacts and a C-size shell, this backshell suits connector assemblies requiring high integrity and durability in industrial and electronic applications.

The device's dual-entry diecast design enables flexible dual cable entry options, facilitating complex wiring configurations such as daisy-chaining within industrial bus systems. Its angled orientation ensures efficient cable routing in tight spaces. A supplied blanking plate maintains screening integrity at the termination of cable runs, reducing electromagnetic interference.

The backshell accommodates cable diameters of 4.8 to 11 mm, except for 9-way versions limited to 4.8 to 9 mm diameter cables. The fastening screws are thread-forming, with unthreaded screw holes designed to form secure threads upon installation, ensuring a tight and secure connection. Finished in silver with metallised housing plating, it provides corrosion resistance and aesthetic appeal.

This product finds application in electronic component assemblies, power connection systems, industrial automation, and manufacturing environments requiring reliable connector backshells with high shielding effectiveness. The robust gadolinium zinc alloy housing enhances mechanical protection against impacts and environmental factors.

TE Connectivity's commitment to quality ensures that the 1534811-1 backshell meets the demands of modern connectors used in harsh electrical and industrial conditions, supporting system reliability and performance.

The backshell features a C-size D-Sub shell with 37 contacts. Angled orientation supports flexible cable routing. Dual entry diecast design enables dual cable entry. Includes a blanking plate to maintain screening integrity at cable run ends.

Cable diameter compatibility ranges from 4.8 to 11 mm for most sizes. Ideal for industrial bus systems with daisy-chaining applications. Screw holes are initially unthreaded, designed for thread-forming screws. Silver colour with metallised housing plating provides corrosion resistance.
