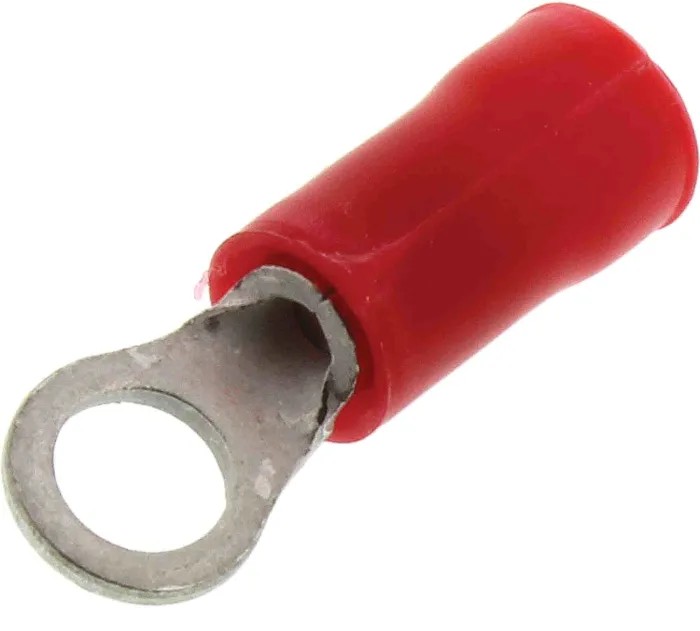

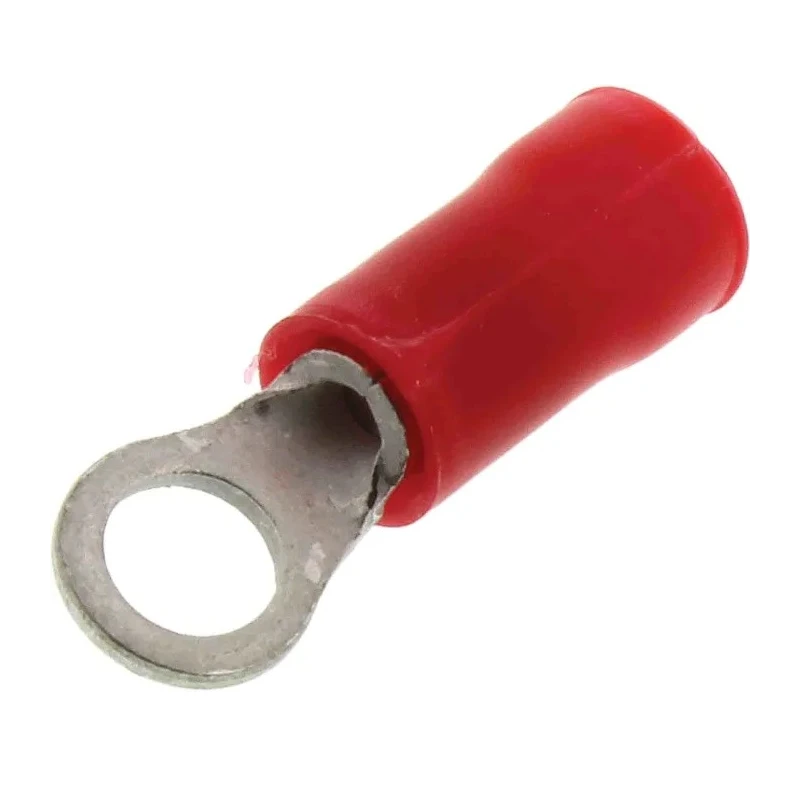

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Vinyl Insulation Red 342101-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 342101-1 |
| Insulation | Insulated |
| Overall Length | 17.5mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.6mm |
| Inner Ring Diameter | 2.5mm |
| Stud Size | M2.5 |
Key Features
- Manufactured with high conductivity copper with tin plating for robust electrical contact.
- Vinyl insulation rated 94V-0 ensures strong dielectric resistance and durability.
- Serrated inner barrel enhances contact and tensile strength after crimping.
- Funnel entry design simplifies wire insertion for efficient installation.
- Suitable for wire sizes from 0.3 mm² to 1.3 mm², accommodating different wiring requirements.
- Outer ring diameter is 5.6 mm and inner ring diameter supports 2.5 mm studs.
- Overall terminal length measures 17.5 mm with thickness of 0.79 mm.
- Designed to operate at maximum temperatures up to 105°C.
Product Description
TE Connectivity 342101-1 PLASTI-GRIP insulated ring terminal is a reliable electrical connector designed for professional wiring applications requiring secure and durable connections. Featuring a high conductivity copper core with tin plating, this terminal ensures excellent electrical performance and corrosion resistance.
The terminal is equipped with a high dielectric strength vinyl insulation sleeve rated at 94V-0, providing safety and durability in various industrial and commercial use cases, including electronics assembly, power connectors, and electrical maintenance.
The serrated inner barrel design improves the conductive contact area and tensile strength post-crimping, guaranteeing a long-lasting mechanical and electrical connection. The funnel-shaped wire barrel entry allows stripped wire ends to be inserted with ease, supporting wire sizes from 22 AWG to 16 AWG (0.3 mm² to 1.3 mm²).
The terminal is color-coded red for quick identification in electrical panels or wiring harnesses. Its physical dimensions include an outer ring diameter of 5.6 mm, inner ring diameter of 2.5 mm for compatible studs, overall length of 17.5 mm, and a thickness of 0.79 mm. This ring terminal is suitable for applications requiring operation at temperatures up to 105°C.
Manufactured using high conductivity copper with tin plating for superior electrical contact. Vinyl insulation with 94V-0 rating ensures durable dielectric protection. Serrated barrel design enhances electrical and mechanical strength after crimping.
Facilitates easy wire insertion with funnel entry wire barrel. Compatible with 22 AWG to 16 AWG wire sizes (0.3 mm² to 1.3 mm²). M2.5 stud size with 5.6 mm outer ring diameter and 2.5 mm inner diameter. Designed for industrial, electronics, power connection, and electrical wiring uses.
This PLASTI-GRIP ring terminal is ideal for applications in electronics assembly, power connectors, circuit board wiring, automotive wiring harnesses, and general electrical maintenance tasks requiring reliable wire-to-stud connections.
Explore more power connector options and ring terminal products in EnvMart’s Electronics & Electricals category to find compatible accessories and complementary components for your projects.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This terminal accommodates wire sizes from 22 AWG to 16 AWG, which corresponds to 0.3 mm² to 1.3 mm².
The overall length of the terminal is 17.5 mm, with an outer ring diameter of 5.6 mm and an inner ring diameter of 2.5 mm.
The contact material is copper, which is plated with tin for enhanced electrical performance and corrosion resistance.
It features vinyl insulation rated at 94V-0, providing strong dielectric resistance and durability.
The serrated inner barrel enhances contact and tensile strength after crimping, ensuring a reliable connection.
Yes, this ring terminal is suitable for automotive wiring harnesses and other electrical maintenance tasks.
This model complies with RoHS standards, ensuring it meets environmental safety requirements.
The terminal is color-coded red for quick identification in electrical panels or wiring harnesses.
The thickness of this ring terminal is 0.79 mm.
This terminal is compatible with M2.5 stud sizes, making it suitable for various applications.
The country of origin for this terminal is India.
