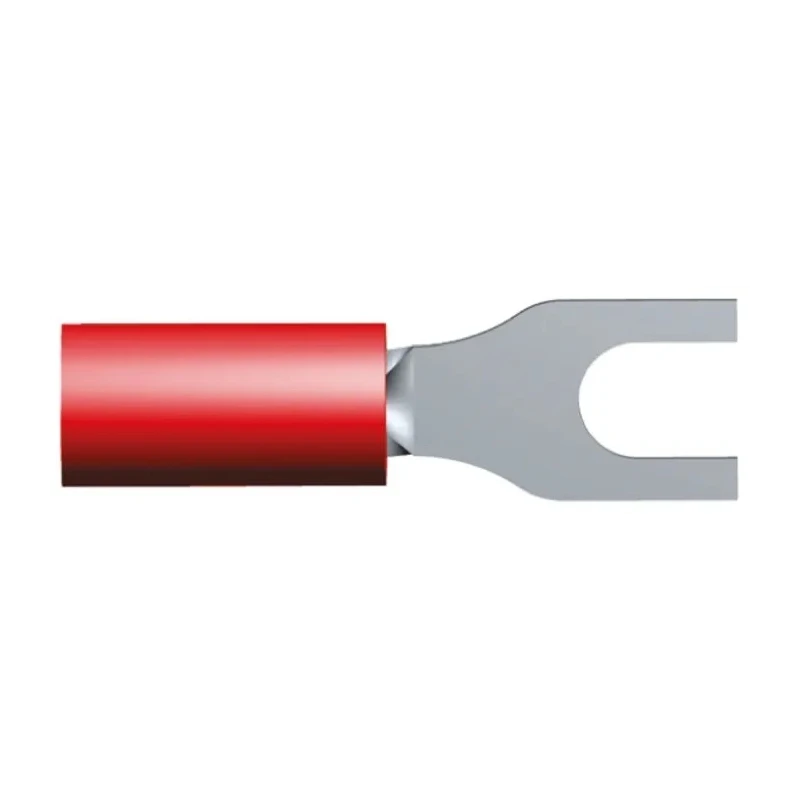

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 130522

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 130522

Name: TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 130522
Brand: TE Connectivity
SKU: 210082
Price: 0.54 USD
Availability: InStock



Category Electronics Components Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Model	130522
Insulation	Insulated
Overall Length	19.6mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Stud Size	M2.5

Key Features

Constructed with high conductivity copper body for superior electrical performance.
Features nylon insulation sleeve in red for easy wire size identification.
Copper sleeve enhances wire insulation support, preventing fraying after crimping.
Serrations in the wire barrel ensure maximum contact and tensile strength.
Funnelled wire entry allows fast and reliable wire insertion during assembly.
Suitable for demanding environments including instruments, control panels, and motors.
Meets or exceeds MIL-T-7928 standards, Types II Class 1 and 2 for reliability.
Operates reliably within a maximum temperature of 105°C.

Product Description

TE Connectivity 130522 PIDG Insulated Ring Terminal is engineered for dependable electrical connections in various industrial applications. The M2.5 stud size supports wire gauges from 22 AWG to 16 AWG, making it versatile for multiple wiring needs.

The terminal features a precision-formed copper body with a robust nylon insulation sleeve in red, enhancing identification and insulation durability. The copper sleeve surrounding the wire barrel provides added insulation support and helps prevent damage to the wire insulation after crimping.

Inside the barrel, serrations optimize contact and tensile strength, ensuring a uniform and reliable crimp. The funnelled wire entry facilitates rapid wire insertion, perfect for high-speed production lines and assembly processes.

PIDG terminals from TE Connectivity are designed to exceed demanding environmental and mechanical requirements, suitable for use in instrumentation, control systems, lighting, power supplies, panel boxes, motors, aerospace equipment, and transportation systems.

These terminals comply with MIL-T-7928, Type II, Class 1 and 2 standards, offering assurance of quality and consistency. Their maximum operating temperature is rated at 105°C to endure typical industrial thermal conditions.

High conductivity copper body for optimal electrical performance. Nylon insulation sleeve color-coded red for wire gauge identification. Copper sleeve improves insulation and wire support after crimping. Serrations in barrel ensure secure mechanical and electrical connection.

Funnelled wire entry for quick and reliable wire insertion. Wide applicability across instrumentation, control, aerospace, and motor applications. Complies with MIL-T-7928, Type II, Class 1 and 2 standards for reliability.

Maximum operating temperature of 105°C. Explore more TE Connectivity Power Connectors and Ring Terminals on EnvMart to find solutions optimized for your industrial electrical connection needs.
