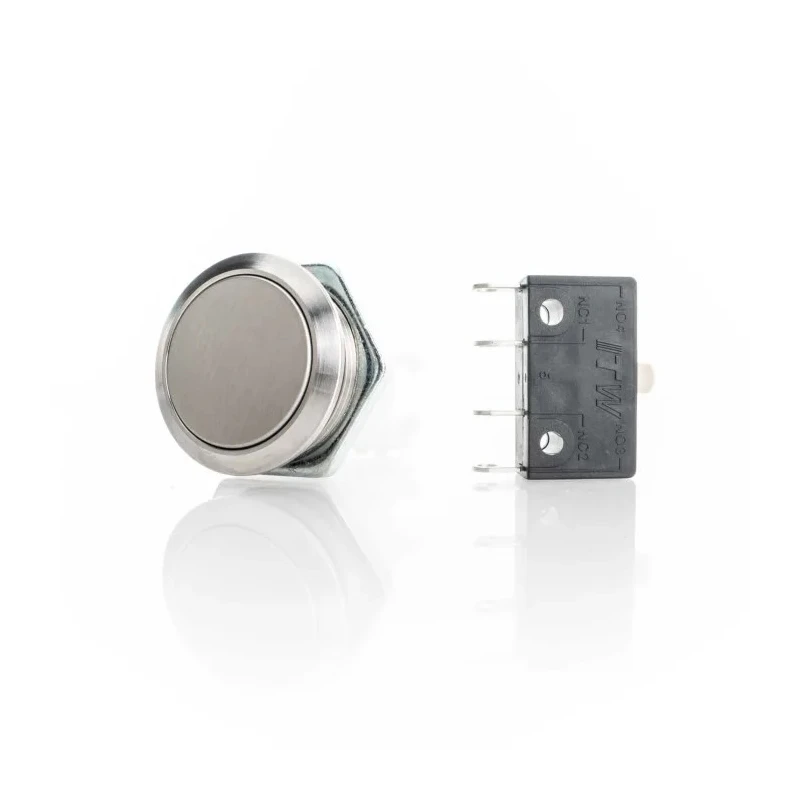

ITW Switches H48M Series Stainless Steel Momentary Push Button Switch Panel Mount 19.6 mm Cutout SPDT Clear LED H48M-110N

ITW Switches H48M-110N is a high-quality stainless steel momentary push button switch with a 19.6 mm panel cutout, designed to provide reliable and rugged operation in demanding industrial environments. It features a single-pole double-throw (SPDT) contact configuration and clear LED illumination for visible status indication. With a robust panel mount design and IP67 frontal sealing, it protects against dust ingress and water exposure, suitable for harsh conditions.

This push button switch operates at a maximum of 250 V AC/DC and handles a contact current of up to 10 A, assuring dependable performance for various electrical control applications. The momentary on-off operation with a round white actuator makes it easy to control machinery and equipment.

The switch supports panel mounting on thicknesses ranging from 0.5 mm to 4.5 mm, making it versatile for multiple panel setups. Its operational temperature range from -40°C to 85°C allows use in extreme environmental conditions, including outdoor and industrial installations.

Typical applications include external control equipment, industrial machinery, security systems, medical devices, food processing plants, mass transit vehicles, and lift trucks. The stainless steel housing enhances durability and longevity under continuous usage.

The product complies with UL and CSA safety standards, providing assurance of quality and reliability for industrial and commercial uses. The clear LED offers effective visual feedback without impeding the robust design.

Constructed with premium stainless steel for durability and industrial use. Features momentary switch operation with on-off switch configuration. Panel mount type suitable for panel thickness 0.5 mm to 4.5 mm. Rated for 250 V AC/DC operation with 10 A contact current capacity.

Operates reliably in temperatures from -40°C to 85°C. Designed with round white actuator and clear LED illumination. IP67 rating ensures dust-tight and water-resistant sealing. Suitable for industrial machinery, security, medical equipment, and food processing applications.

Complies with UL and CSA standards for quality and safety. Explore the ITW Switches range at EnvMart for more industrial grade Push Button Switches and electrical components tailored to your application needs.
