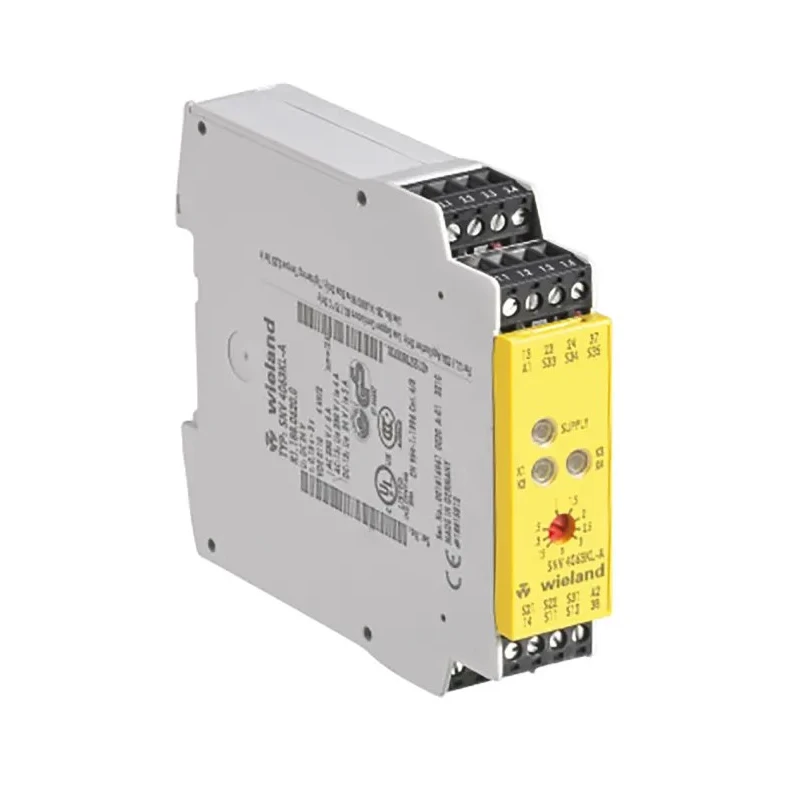

Wieland Safety Relay, 24V DC Coil, 3 Safety Contacts, DIN Rail Mount, IP40, Model R1.188.0620.0

Wieland R1.188.0620.0 Safety Relay is designed for industrial automation and safety applications, featuring a 24V DC coil voltage and three monitored safety contacts for dependable safety control. It supports DIN rail mounting and utilizes screw terminals for secure wiring connections, suitable for use in industrial, manufacturing, electrical control panels, and machinery safety systems.

The relay integrates LED indicators to provide visual status feedback for supply voltage and safety circuit operation. It has an adjustable time delay between 0.15 and 3 seconds to accommodate various safety needs, and it operates reliably from -25°C to 55°C. The IP40 rating ensures protection against solid particles in typical indoor environments.

This safety relay complies with important international safety standards including EN ISO 13849-1, EN 60664-1, EN 62061, and IEC 60204, making it suitable for safety category 4 applications. Its contact current rating of 6A and power consumption of 2.6W contribute to efficient and safe operation in demanding settings.

Dimensions are compact at 96.5mm height, 22.5mm length, and 114mm width, facilitating easy integration into existing electrical systems. Additional features such as automatic restart and soft reset functionalities enhance the resilience and maintenance of safety circuits.

Equipped with 3 monitored safety contacts for secure switching. Designed for DIN rail mounting with screw terminal connections. Features time delay adjustable between 0.15 to 3 seconds. Operates within temperature range -25°C to 55°C and has IP40 rating.

Compliant with EN ISO 13849-1, EN 60664-1, EN 62061, and IEC 60204 standards. Consumes 2.6W power and handles contact current up to 6A. Dimensions are 96.5mm height, 22.5mm length, and 114mm width. Includes LED indication for supply voltage and safety circuit status.

Provides automatic restart and soft reset functions for efficient operation.

Used widely in industrial safety applications such as emergency stop circuits and machine safety control, Wieland Safety Relays ensure compliance and reliable protection. Explore the full range of industrial relays and safety automation devices here on EnvMart for optimized electrical safety solutions.
