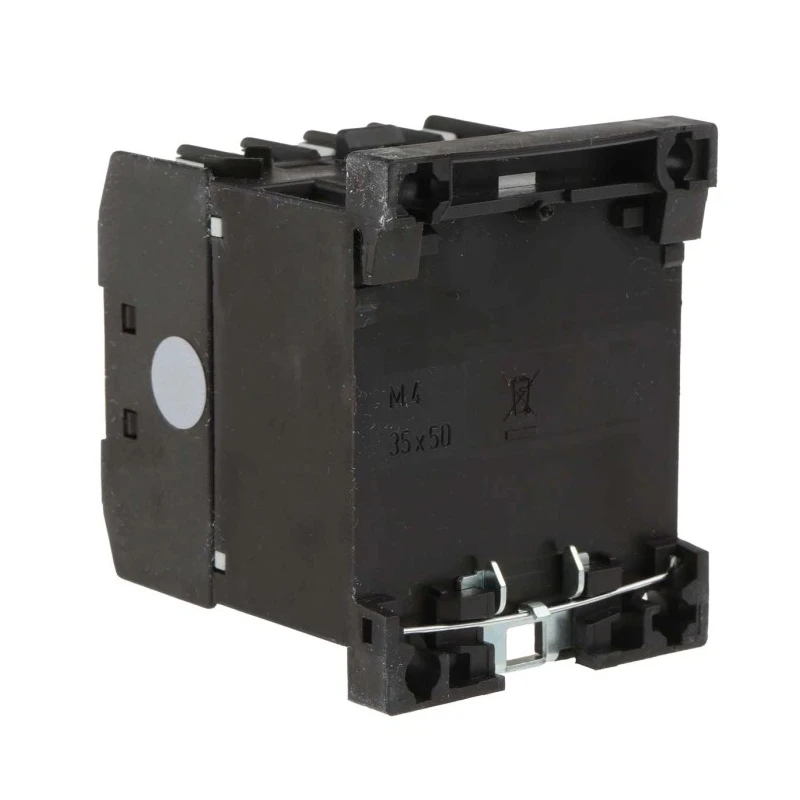

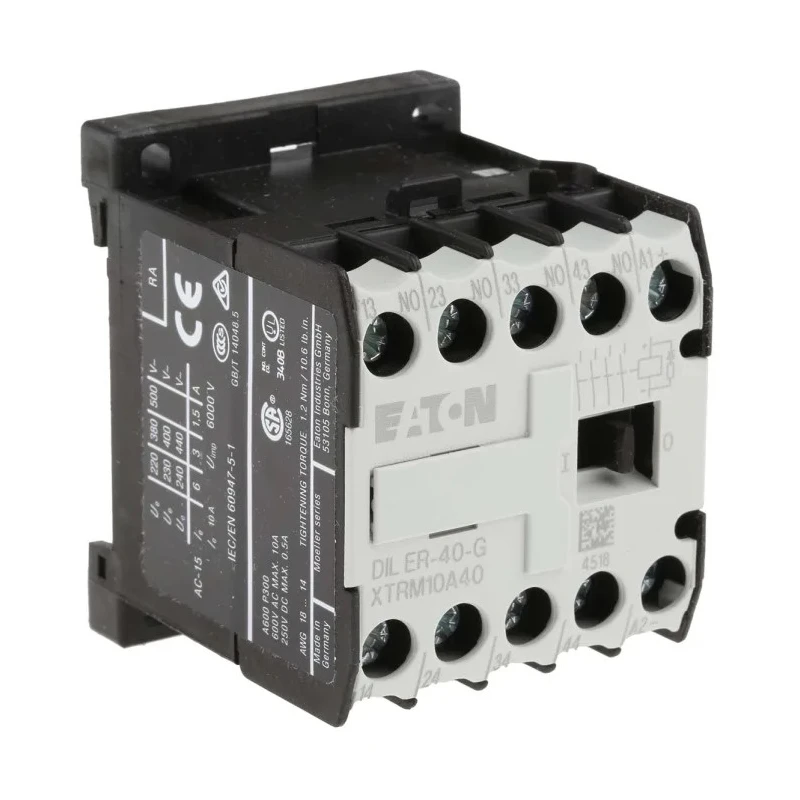

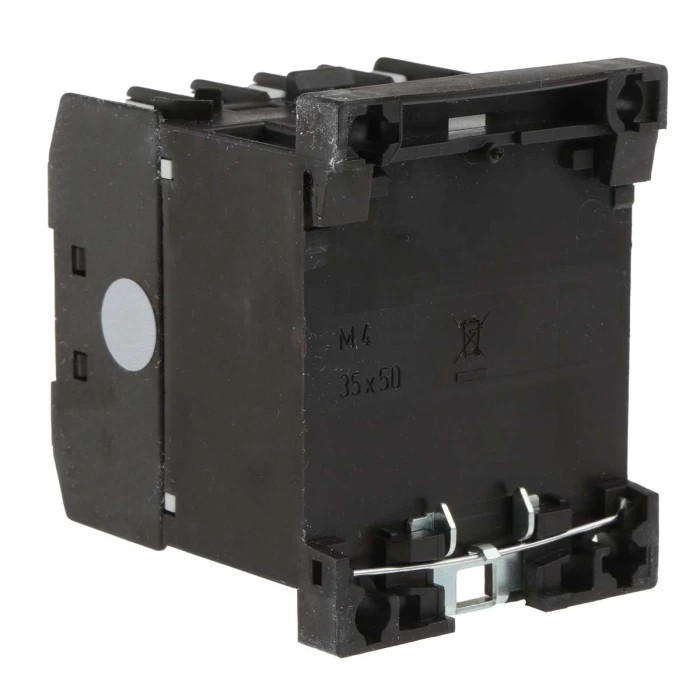

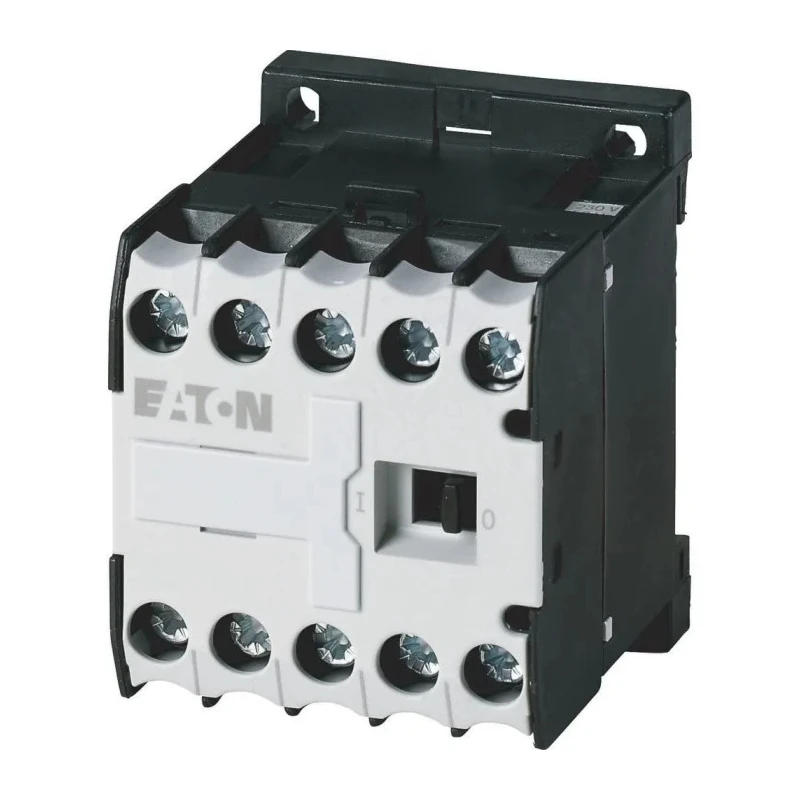

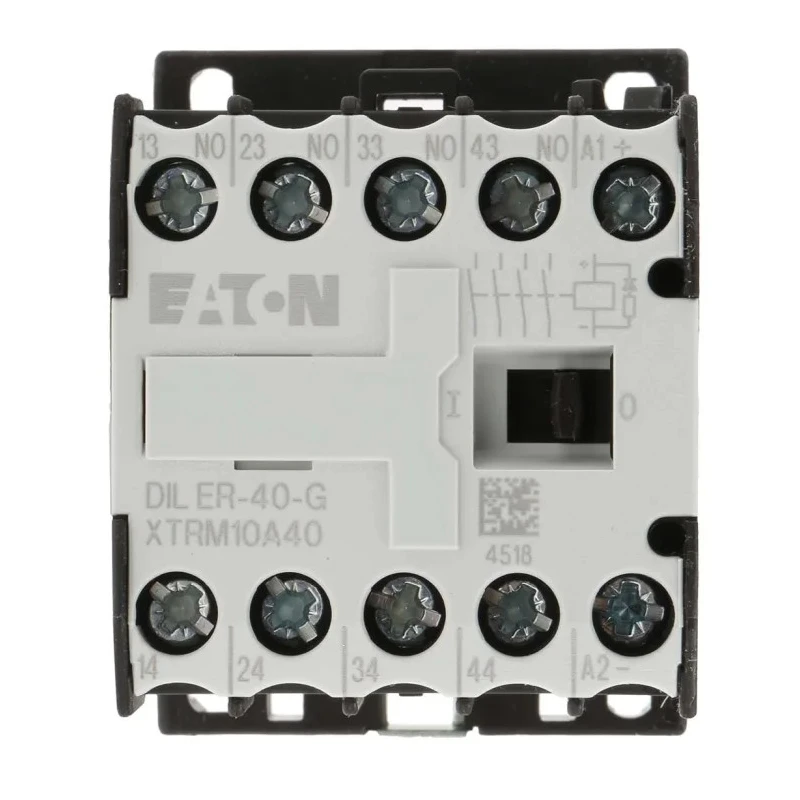

Eaton DILER Contactor, 24V DC Coil, 4-Pole, 3 A Contact Current, 4 NO Normal State Configuration 010223 DILER-40-G(24VDC)

The Eaton 010223 DILER-40-G(24VDC) Contactor is a high-performance industrial relay designed for motor control, reversing, and self-locking applications with a DC coil voltage of 24V. This contactor provides 4 poles with a contact current rating of 3 A and operates safely on a contact voltage of 400V AC. Its compact and robust design, measuring just 58mm in length, 45mm in width, and 54mm in depth, supports efficient installation on DIN rails or with screws, making it ideal for limited space environments.

Built to endure harsh industrial conditions, this Eaton contactor features a broad operating temperature range from -25°C up to 40°C and offers IP20 protection to prevent accidental contact with live parts. Its screw terminal connection ensures secure and reliable wiring. Certified to global safety standards including CSA, CE, and UL 508, it guarantees compliance and dependable operation.

With the capability to handle up to 9000 operations per hour, this contactor is suitable for demanding automation and control systems, including HVAC units, motor starters, capacitor banks, and lighting controls. The device weighs 206 grams, promoting ease of mounting without adding unnecessary load to the installation surface.

This Contactor series is widely used in industrial automation, manufacturing plants, commercial electrical control systems, and HVAC facilities, providing reliable switching performance across various sectors.

Features a robust 24V DC coil for reliable switching in control circuits. Designed with a 4-pole configuration and 4 normally open contacts for versatile application. Supports a contact voltage of up to 400V AC for high power applications.

Compact dimensions of 58mm length, 45mm width, and 54mm depth enable easy DIN rail mounting. Wide operating temperature range from -25°C to 40°C supports demanding environments. Equipped with screw terminal for secure electrical connectivity.

Meets international standards including CSA, CE, IEC/EN 60947-4-1, and UL 508 for safety and quality assurance. Lightweight at 206 grams to reduce mounting strain. IP20 rated housing ensures protection against finger contact and objects larger than 12mm.

Capable of up to 9000 operations per hour for high-frequency industrial use. Explore the Eaton product range on EnvMart for additional industrial and automation components optimized for professional applications.
