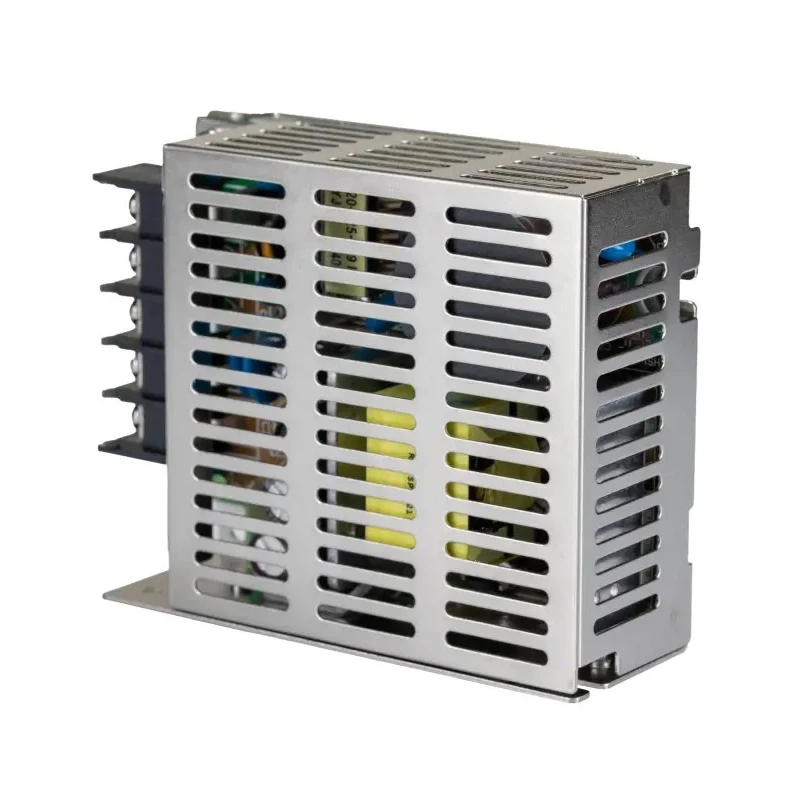

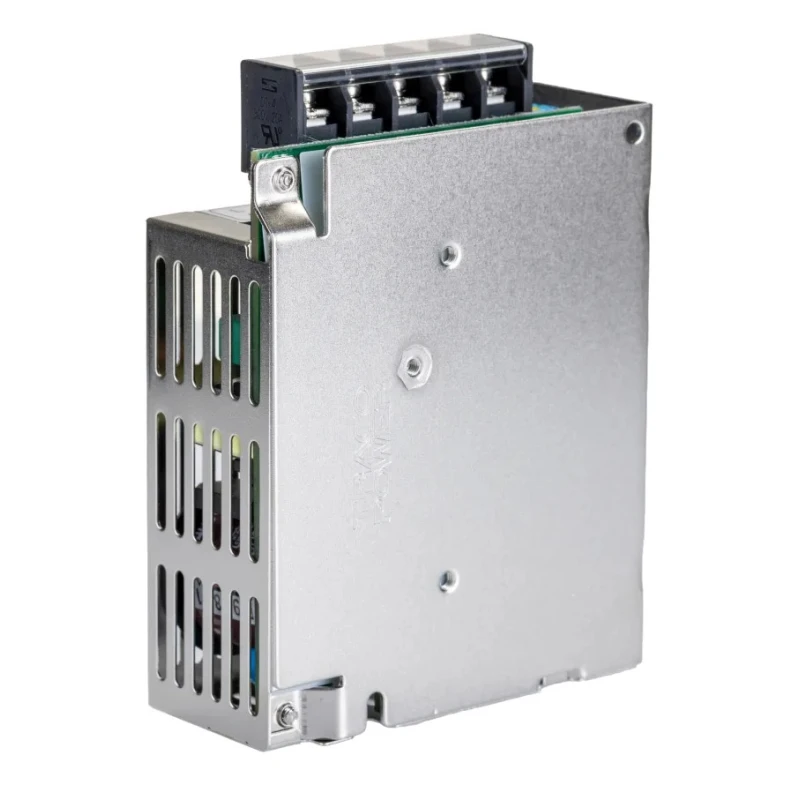

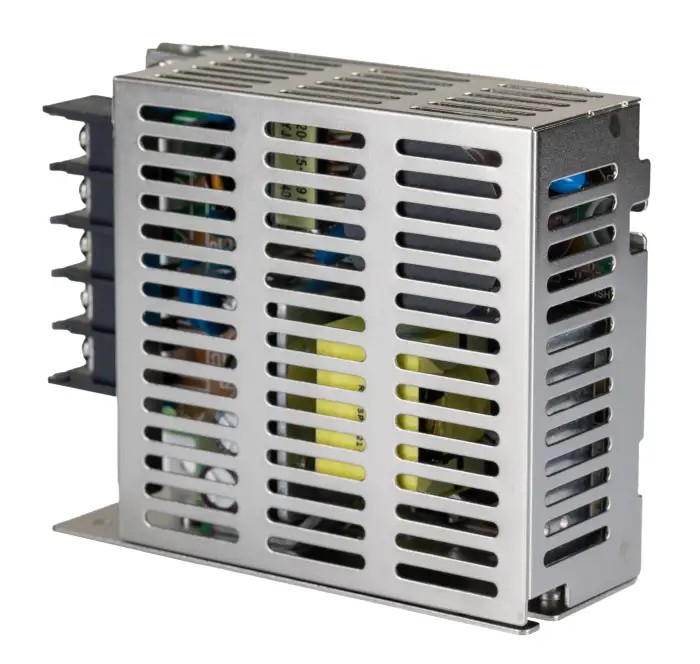

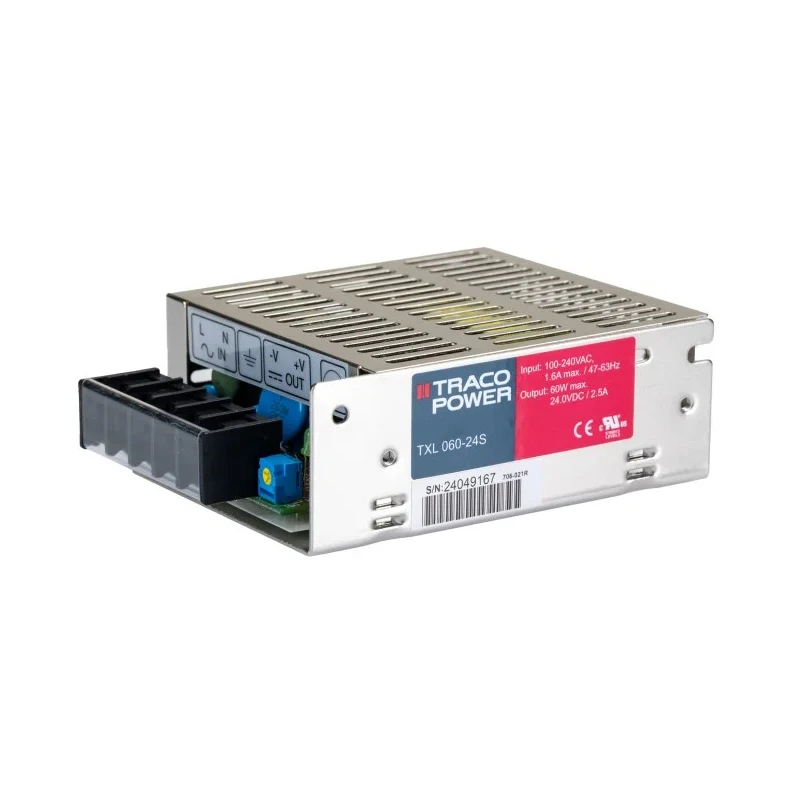

TRACOPOWER Switching Power Supply 24V dc 60W Chassis Mount TXL 060-24S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 60W |
| Efficiency | 84% |
| Length | 111mm |
| Model | TXL 060-24S |
| Depth | 35mm |
| Gross Weight | 340g |
| Width | 82mm |
| Mount Type | Chassis |
| Series | TXL 050/060 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Standards/Approvals | IEC/EN 61000-4-2, IEC/EN 61000-4-11, IEC/EN 61000-3-3, IEC/EN 61000-4-8, EN 55022 Class B FCC Part 15 Level B, EN 55024, IEC/EN 61000-4-6, IEC/EN 60950-1, IEC/EN 61000-3-2 class A, IEC/EN 61000-4-5, IEC/EN 61000-4-4, IEC/EN 61000-4-3, UL 60950-1 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 2.5A |
| Minimum Input Voltage | 88V ac |
Key Features
- Accepts wide input voltage range from 88V AC to 264V AC.
- Delivers a stable 24V DC output with 2.5A current capability.
- Chassis mounting enables compact and secure installation.
- Operates reliably between -10°C and 70°C ambient temperatures.
- High efficiency of 84% reduces energy waste during operation.
- Compact dimensions of 111mm length, 82mm width, and 35mm depth.
- Multiple international standards and safety approvals ensure dependable performance.
- Provides short-circuit and overvoltage protection for device safety.
Product Description
TRACOPOWER TXL 060-24S is a high-efficiency switching power supply designed for stable conversion of AC mains voltage to 24V DC output at 60 watts power. It supports a universal input voltage range from 88V to 264V AC, making it well-suited for diverse electrical systems.
The device features a robust chassis mounting form factor housed within a compact metal case measuring 111mm (L) x 82mm (W) x 35mm (D) to facilitate easy installation in constrained industrial setups. Safety features include short-circuit and overvoltage protection to safeguard connected equipment.
This power supply operates reliably within a wide temperature range of -10°C to +70°C, ensuring consistent performance in challenging environments. It achieves a typical efficiency of 84%, helping minimize energy losses during continuous operation.
Applications for the TXL 060-24S include powering CCTV camera systems, machine tools, telecommunications networks, and medical testing devices where reliable 24V DC power is required.
Manufactured in Taiwan, this product complies with numerous international standards such as IEC/EN 61000-4-2, IEC/EN 61000-4-11, IEC/EN 60950-1, and UL 60950-1, assuring customers of safety and electromagnetic compatibility.
Accepts wide input voltage range from 88V AC to 264V AC. Delivers stable 24V DC output at 2.5 amps. Chassis mount with compact metal enclosure. Operates from -10°C to 70°C ambient. High efficiency of 84% reduces power consumption.
Short-circuit and overvoltage protection provided. Meets multiple international safety and EMC standards. Ideal for industrial, telecommunications, and medical applications. Explore more Switching Power Supplies and Tracopower products on EnvMart for versatile power conversion solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 88V AC to 264V AC.
The compact dimensions are 111mm in length, 82mm in width, and 35mm in depth.
It achieves a high efficiency of 84%, reducing energy waste during operation.
This unit operates reliably in ambient temperatures ranging from -10°C to 70°C.
It includes short-circuit and overvoltage protection to safeguard connected equipment.
It complies with multiple international standards including IEC/EN 61000-4-2, IEC/EN 60950-1, and UL 60950-1.
The TXL 060-24S features a chassis mount design for secure installation.
The gross weight of the power supply is 340g.
It is suitable for applications such as powering CCTV systems, machine tools, telecommunications networks, and medical testing devices.
This power supply is part of the TXL 050/060 series.
It has a single output.
