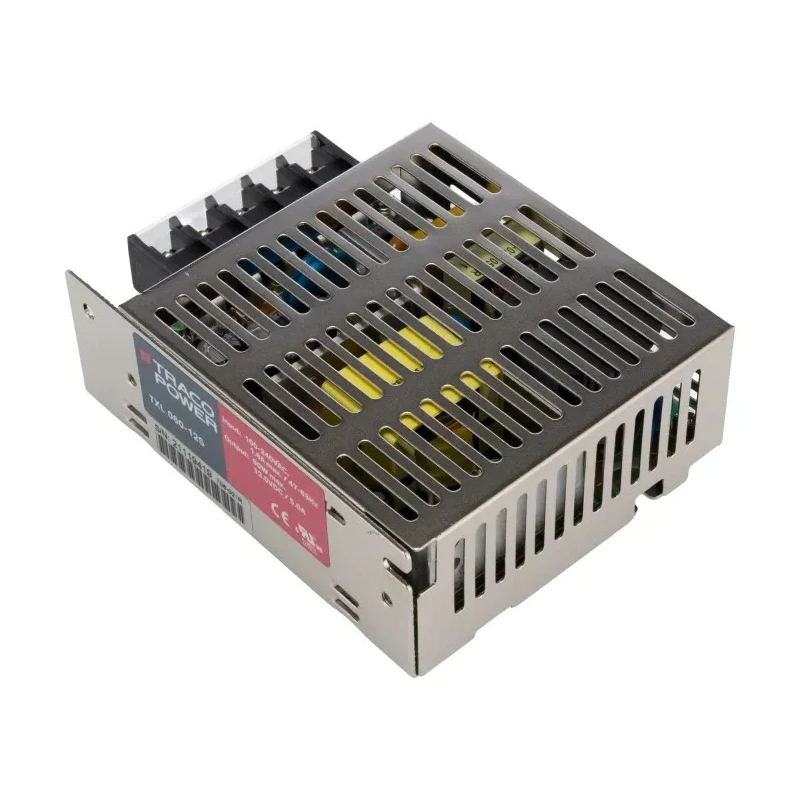

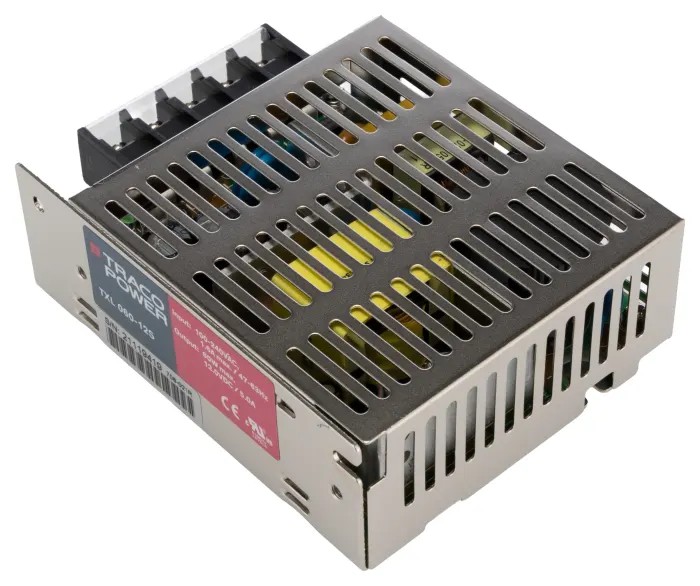

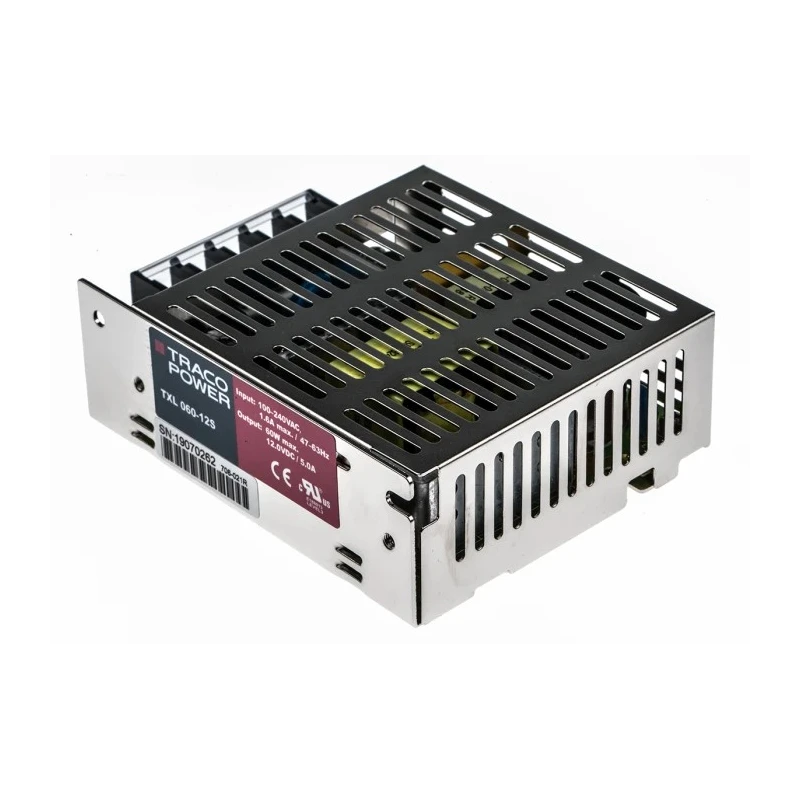

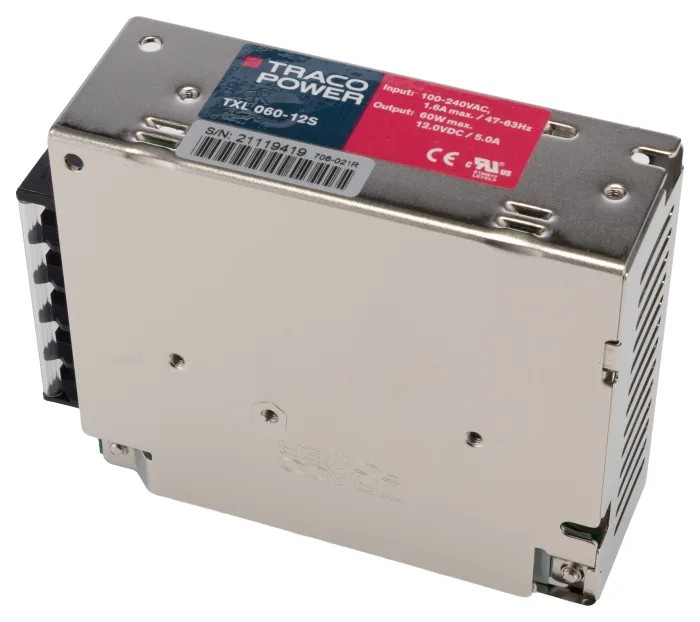

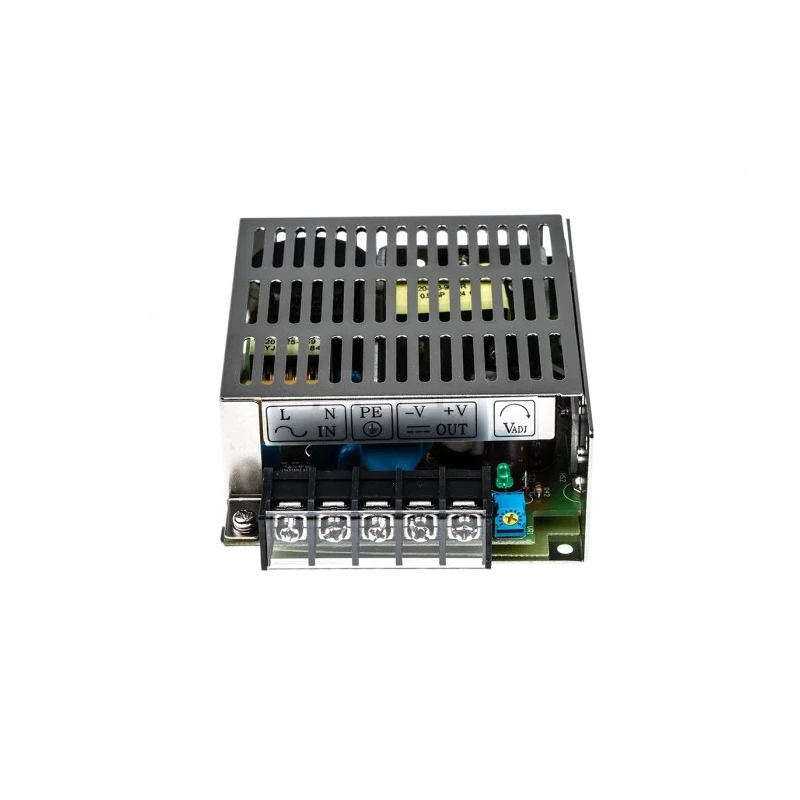

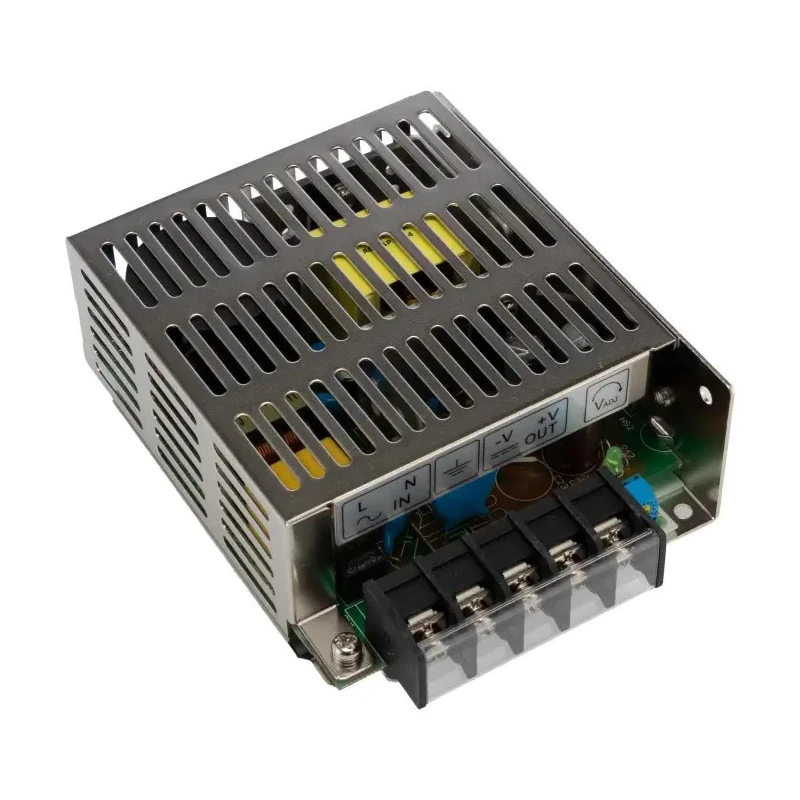

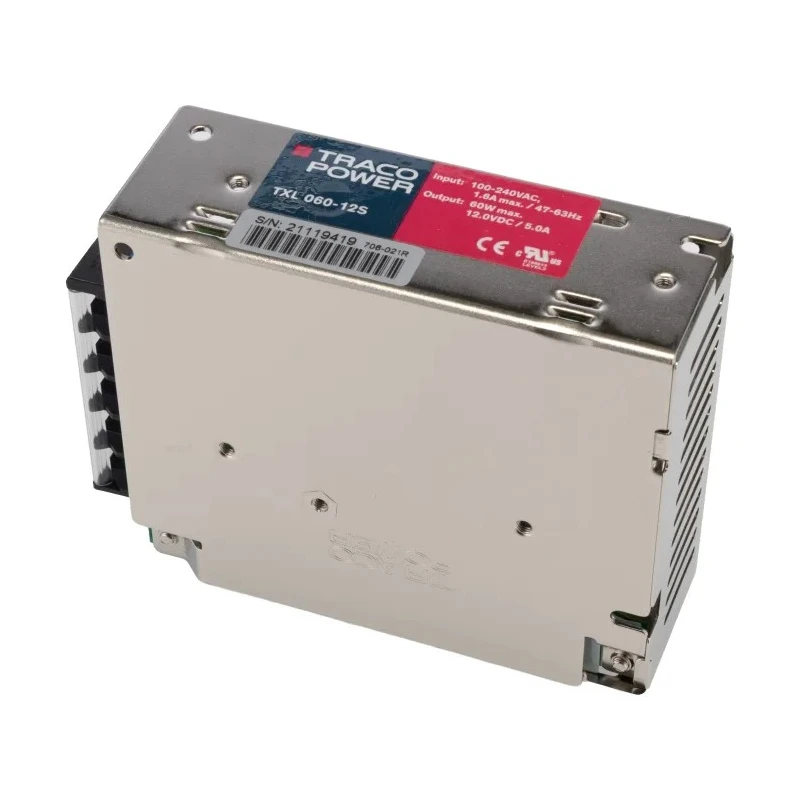

TRACOPOWER Switching Power Supply 12V DC 60W 5A Chassis Mount TXL 060-12S

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 12V DC 60W 5A Chassis Mount TXL 060-12S

Name: TRACOPOWER Switching Power Supply 12V DC 60W 5A Chassis Mount TXL 060-12S
Brand: TRACOPOWER
SKU: 188075
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	60W
Efficiency	81%
Length	111mm
Model	TXL 060-12S
Depth	35mm
Gross Weight	340g
Width	82mm
Mount Type	Chassis
Series	TXL 050/060
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	IEC/EN 61000-4-4, UL 60950-1, IEC/EN 61000-4-8, IEC/EN 61000-4-6, IEC/EN 61000-4-5, IEC/EN 61000-4-3, IEC/EN 61000-4-2, EN 55024, EN 55022 Class B FCC Part 15 Level B, IEC/EN 60950-1, IEC/EN 61000-3-2 class A, IEC/EN 61000-3-3, IEC/EN 61000-4-11
Maximum Output Voltage	12V dc
SMPS Output Current	5A
Minimum Input Voltage	88V ac
EMS univ/selectable input SMPSU,12V 60WBrand	EMS

Key Features

Offers a wide input voltage range from 88V to 264V AC for universal compatibility.
Compact chassis mount design measuring 111mm x 82mm x 35mm for easy installation.
High efficiency of 81% reduces energy loss and heat generation during operation.
Includes multiple protection features such as short-circuit and overvoltage protection to safeguard connected devices.
Operates reliably in temperatures ranging from -10°C to 70°C.
Meets international standards including IEC/EN 61000 series and UL 60950-1 compliance.
Isolation voltage rating of 3kV AC ensures electrical safety between input and output.
Stable output with maximum ripple and noise limited to 120mVp-p for sensitive electronics.

Product Description

TRACOPOWER TXL 060-12S is a high-performance switching power supply designed to provide a steady 12V DC output at a power rating of 60W with a maximum output current of 5A. Engineered for robust operation, it supports a universal input voltage range spanning from 88V AC up to 264V AC, suitable for global electrical standards. The device is built for chassis mounting and houses a compact form factor with dimensions of 111mm in length, 82mm in width, and 35mm in depth, making it suitable for tight spaces.

This power supply features an 81% efficiency rating, ensuring energy-saving performance that minimizes heat buildup and operational costs. It is equipped with comprehensive protection mechanisms including short-circuit and overvoltage protection, contributing to system and device safety during unexpected electrical faults or fluctuations.

Certified to multiple international standards such as IEC/EN 61000-4 series and UL 60950-1, the TXL 060-12S meets rigorous electromagnetic compatibility and safety requirements. The unit maintains operation within an industrial temperature range from -10°C to 70°C, allowing deployment in harsh environments without compromising reliability.

An electrical isolation voltage of 3kV AC enhances safety by isolating input and output circuitry. The output voltage is regulated with a maximum ripple and noise value of 120mVp-p, making it suitable for sensitive electronic equipment without risk of interference.

Common applications for this power supply include security system installations, gaming devices, and various industrial manufacturing processes where stable and efficient DC power is critical.

Offers wide universal input voltage range from 88V to 264V AC. Compact chassis mount design for easy integration. High operational efficiency of 81% minimizes power loss. Comprehensive protection against short-circuit and overvoltage faults.

Compliance with multiple international safety and EMC standards. Operates reliably across a wide temperature range of -10°C to 70°C. 3kV AC isolation voltage enhances user and equipment safety. Maintains low ripple and noise output for critical electronics.

Ideal for industrial, security, and gaming device applications. Explore the wide range of TRACOPOWER Switching Power Supplies and other power distribution solutions on EnvMart for reliable industrial-grade performance.
