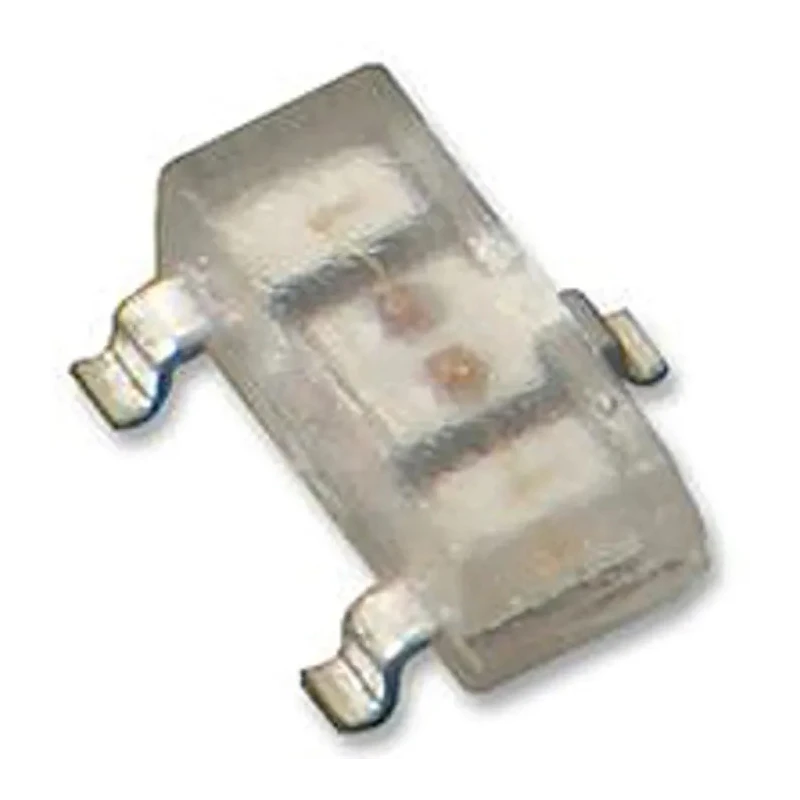

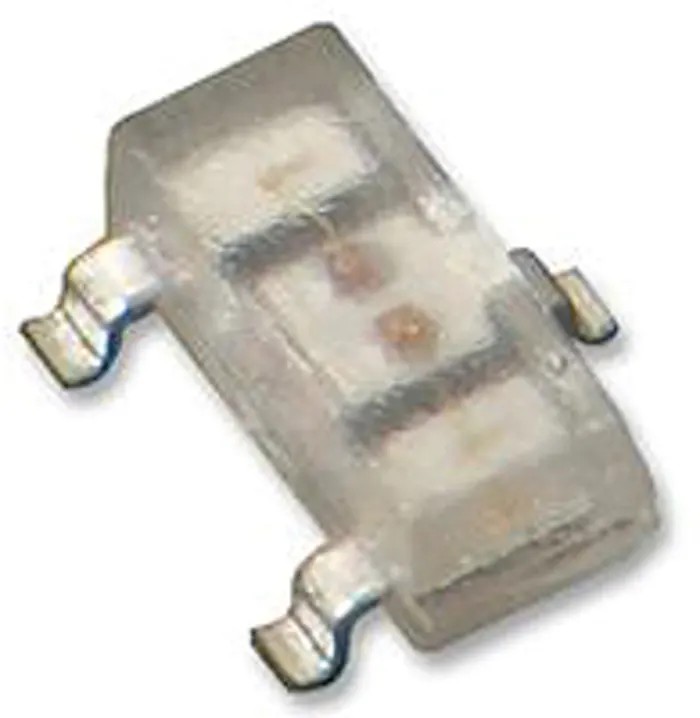

Kingbright 2.5 V Red LED SOT-23 Surface Mount, Forward Current 155mA, 75mW Power KM-23SRD-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM-23SRD-F |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KA-23 |
| Maximum forward current | 155mA |
| Viewing angle | 140 ° |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 640nm |
| Forward Voltage | 2.5V |
| Number of Pins | 3 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 1.3 mm |
| Lens Shape | Rectangular |
Key Features
- The LED features a maximum forward current of 155mA for robust performance.
- It has a maximum power dissipation of 75mW, ensuring durability under operating conditions.
- The standard SOT-23 package dimensions of 3 x 1.3 mm make it suitable for compact electronic assemblies.
- With a wide viewing angle of 140 degrees, it provides excellent light dispersion.
- The LED luminosity is rated at 90 mcd for bright indication applications.
- Featuring a clear rectangular lens that enhances light clarity and direction.
- Packaged on tape and reel for efficient surface mount assembly processes.
- Complies with RoHS standards ensuring eco-friendly materials and manufacturing.
Product Description
Kingbright KM-23SRD-F is a high-quality red LED designed for surface mounting in the industry-standard SOT-23 package. Operating at a low forward voltage of 2.5 V and supporting a maximum forward current of 155mA, this LED provides reliable and energy-efficient illumination suitable for various electronic and industrial applications.
The LED features a compact rectangular lens measuring 3 x 1.3 mm, offering a wide viewing angle of 140 degrees and an LED luminosity of 90 mcd. Its 75mW maximum power dissipation supports robust operation in continuous and intermittent usage scenarios.
Ideal for use in electronic components assemblies, displays, indicators, and signaling within industrial, manufacturing, and commercial electronic devices. The LED's packaging on tape and reel format facilitates automated surface mount technology (SMT) assembly, enhancing production efficiency and consistency.
Its dominant wavelength of 640nm ensures a bright red emission suitable for diverse LED applications. The LED offers reliable performance with 155mA maximum forward current. Compact SOT-23 package with 3 x 1.3 mm lens dimensions.
Wide 140° viewing angle for broad light coverage. Bright illumination with 90 mcd luminosity output. Clear rectangular lens for focused red light emission. Surface mount type with tape and reel packaging for automated production.
Maximum power dissipation of 75mW for safe operation. RoHS compliant for environmental and safety standards. Dominant wavelength at 640nm for consistent red light.
This Kingbright LED suits demanding industrial, laboratory, manufacturing, and commercial electronics use cases requiring high reliability and performance. Explore more LED components and electronic parts to complement this product on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Kingbright KM-23SRD-F LED is 155mA.
This LED has a maximum power dissipation of 75mW.
The forward voltage of this LED is 2.5V.
The lens dimensions of this model are 3 x 1.3 mm.
The viewing angle of the Kingbright KM-23SRD-F LED is 140 degrees.
The LED luminosity is rated at 90 mcd.
This LED is packaged on tape and reel, suitable for automated surface mount assembly.
The dominant wavelength of the KM-23SRD-F is 640nm, producing a bright red emission.
The Kingbright KM-23SRD-F is a surface mount type LED.
Yes, this LED complies with RoHS standards, ensuring eco-friendly materials and manufacturing.
This LED has 3 pins.
The KM-23SRD-F belongs to the KA-23 series of LEDs.
