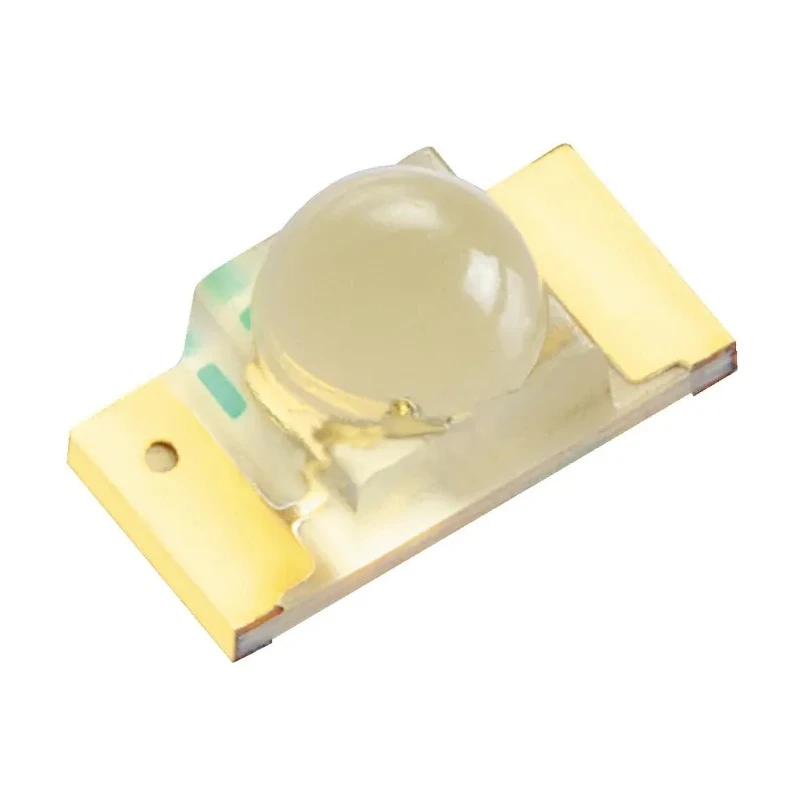

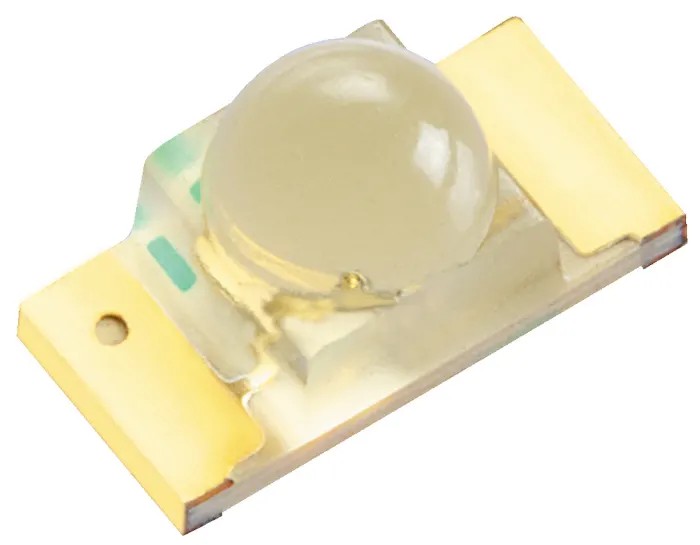

Kingbright Green LED 3216 Surface Mount 2.1 V Forward Voltage 150mA 75mW Power Dissipation Dome Lens KPTD-3216MGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPTD-3216MGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPTD-3216 |
| Maximum forward current | 150mA |
| Viewing angle | 50 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.1V |
| Number of Pins | 2 |
| LED Luminosity | 500 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 1.6 x 1.55 mm |
| Lens Shape | Dome |
Key Features
- The 3216 (1206) package with dome lens provides a height of 1.8 mm.
- Maximum power dissipation is rated at 75 mW for reliable operation.
- Features a clear dome-shaped lens with 3.2 x 1.6 x 1.55 mm dimensions.
- Offers a wide viewing angle of 50 degrees for optimal visibility.
- LED emits green light with a dominant wavelength of 570 nm.
- Packaged on tape and reel for ease of automated assembly.
- Surface mount design with 2 pins for compact PCB integration.
- Complies with RoHS environmental standards ensuring lead-free solderability.
Product Description
The Kingbright KPTD-3216MGC is a high-quality green LED designed for surface mount applications in electronics manufacturing and industrial usage.
This LED features a standard 3216 (1206) SMT package with a dome-shaped clear lens, measuring 3.2 x 1.6 x 1.55 mm and a lens height of 1.8 mm, providing excellent optical performance and a 50-degree viewing angle for broad visibility.
With a forward voltage of 2.1 V and maximum forward current rating of 150 mA, it offers efficient illumination with a maximum power dissipation of 75 mW, balancing luminous intensity and power consumption suitable for indicator lights and backlighting.
The LED emits bright green light with a dominant wavelength of 570 nm and a luminous intensity of 500 millicandela, ensuring clear indication even in bright environments. The component is RoHS compliant, confirming that it meets environmental regulations for hazardous substances, making it suitable for use in commercial and automotive electronics.
Its 2-pin surface mount configuration enables easy placement and soldering on printed circuit boards, optimized for automated manufacturing processes thanks to tape and reel packaging.
This product is predominantly used in electronic displays, indicator lights, instrument panels, and dashboard lighting in automotive or industrial control systems. The 3216 package with dome lens enables compact and effective light output.
Rated for 150mA forward current with 75mW power dissipation for reliable operation. Wide 50° viewing angle ensures good visibility across a broad range. Clear lens and green emission wavelength suit indicator and backlight applications.
Surface mount design is compatible with automated assembly processes. RoHS compliant for environmentally friendly electronics production. Explore more electronic LED components and related accessories at EnvMart for your circuit design and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this model is 2.1 V.
It has a maximum forward current rating of 150 mA.
This LED features a wide viewing angle of 50 degrees.
The LED emits light with a dominant wavelength of 570 nm, producing a bright green color.
The maximum power dissipation is rated at 75 mW.
The lens dimensions are 3.2 x 1.6 x 1.55 mm.
It is packaged on tape and reel, which facilitates automated assembly processes.
This model features a surface mount design with 2 pins for easy PCB integration.
The LED has a luminosity of 500 millicandela (mcd).
Yes, this LED complies with RoHS environmental standards, ensuring lead-free solderability.
It is suitable for use in electronic displays, indicator lights, and dashboard lighting in automotive or industrial control systems.
This LED belongs to the KPTD-3216 series.
