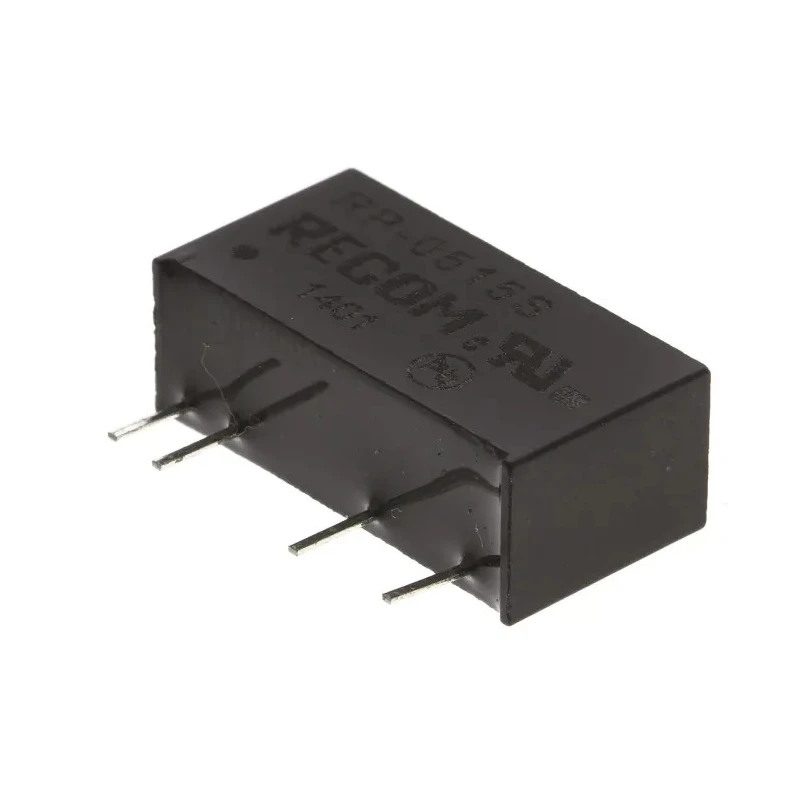

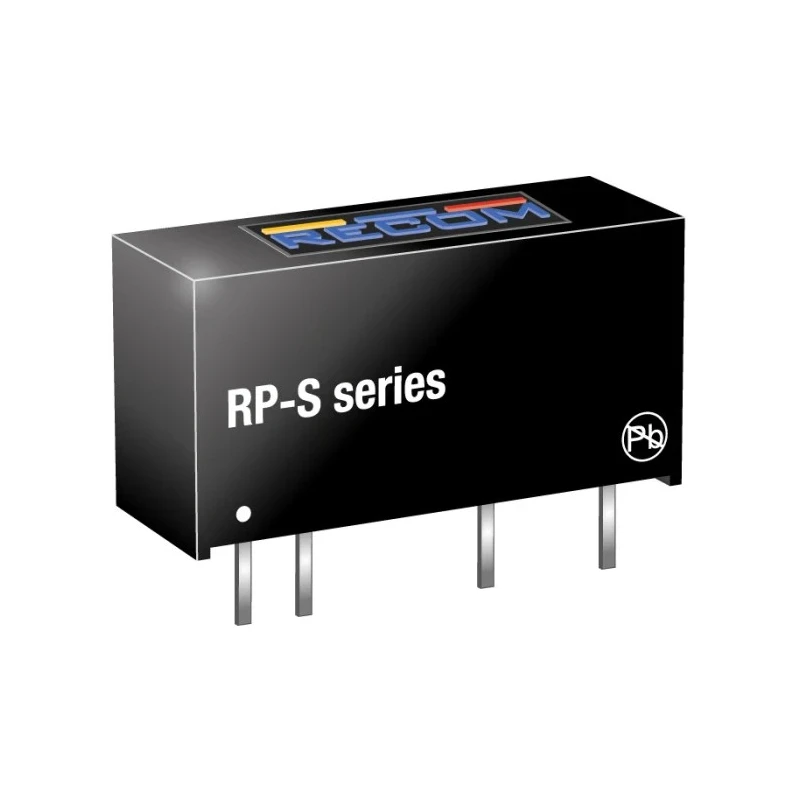

Recom DC/DC Converter 15V DC Output 66mA 5V DC Input 4.5V Minimum Input 1W Through Hole Mount RP-0515S

Recom RP-0515S DC/DC Converter is a high-quality power supply component designed to efficiently convert low DC input voltages (4.5V to 5V) into a stable 15V DC output at 66mA current with 1W maximum output power. It features a Through Hole mount package allowing easy integration into circuit boards for industrial and electronic applications.

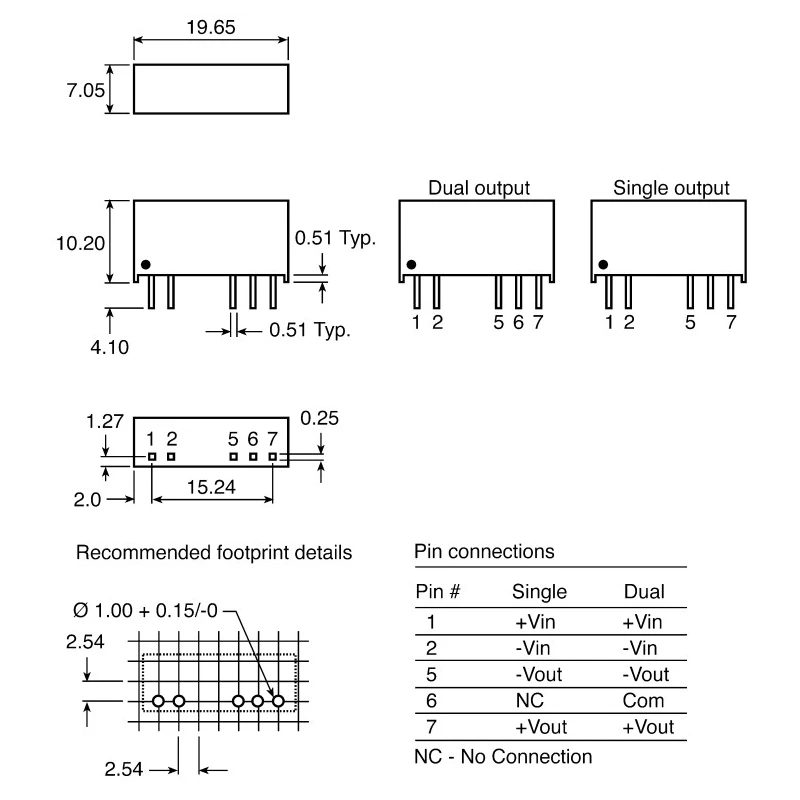

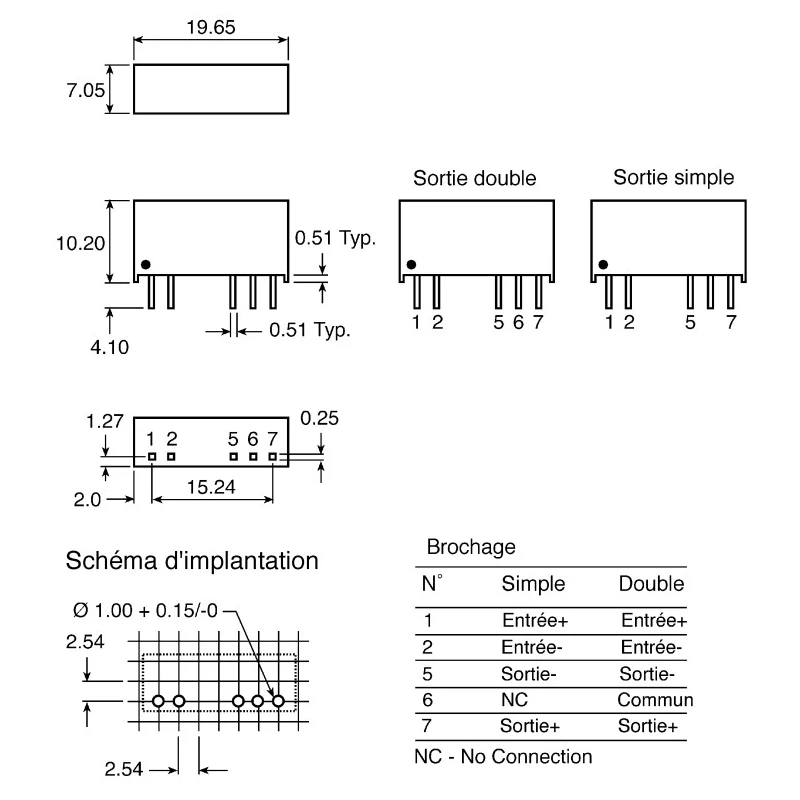

Built with a SIP package measuring 19.65mm in length, 7.05mm in width, and 10.2mm in depth, this converter provides compact size optimal for circuit design without sacrificing performance. Its high isolation voltage rating of 2.6kV AC ensures excellent protection against electrical surges, making it suitable for harsh industrial environments.

The device offers an output voltage accuracy of ±5%, which guarantees reliable and consistent voltage for sensitive electronic components. With an efficiency rating of 82%, it reduces power losses during conversion, enhancing energy savings and system reliability. Additionally, the integrated short-circuit protection enhances safety and reduces the risk of damage to connected systems.

Designed to operate within a wide temperature range from -40°C to +85°C, this DC/DC converter is fit for applications in severe temperature conditions such as cold storage, industrial machinery, and HVAC systems. It is especially useful in signalling systems, server management, and construction industry electronic controls.

The RP-0515S model is manufactured in Taiwan, Province of China, ensuring consistent quality and durability. Its high MTBF (Mean Time Between Failures) of 18.4 million hours underlines its long-term reliability in continuous operation.

High isolation voltage of 2.6kV AC providing electrical surge resistance. Compact SIP through-hole package for easy PCB mounting. Wide temperature operation range supports industrial applications. Stable and accurate 15V output with ±5% tolerance.

82% conversion efficiency for energy-saving operation. Short-circuit protection to safeguard connected electronics. Single output channel with 7 pins simplifies circuit design. Long MTBF of 18.4 million hours ensures product durability.

Manufactured in Taiwan, Province Of China for assured quality.

This converter is suitable for various electronics projects and industrial uses, including power supplies for signaling systems, server equipment, and construction electronic controls.
