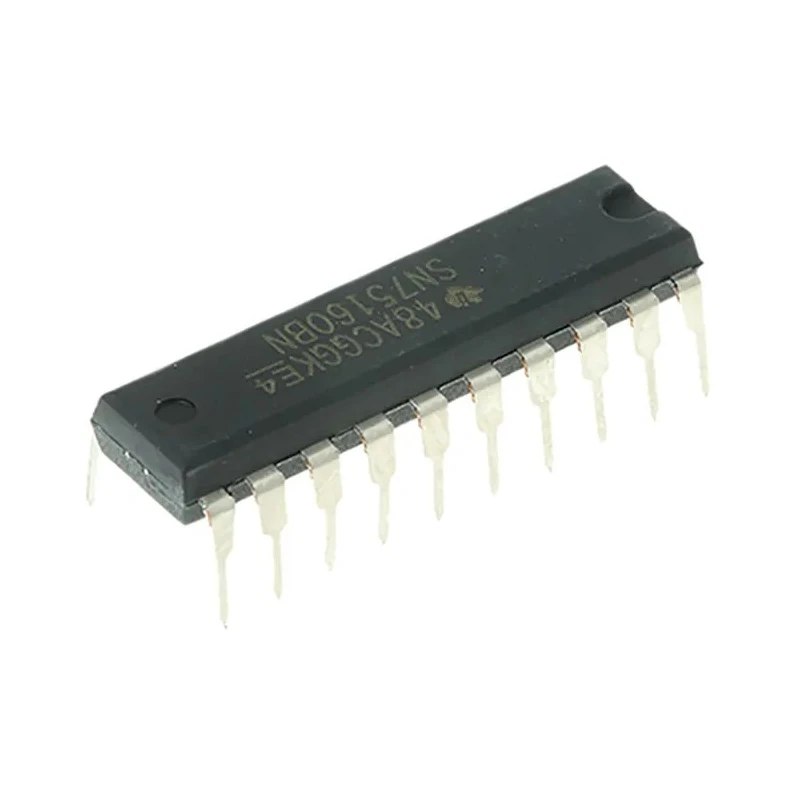

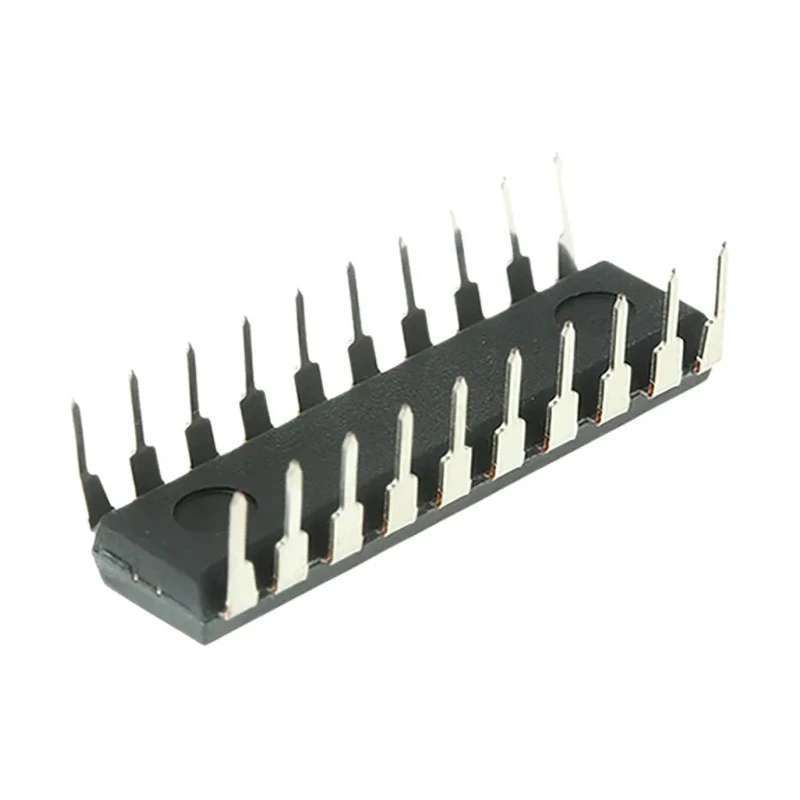

Texas Instruments 8-Channel Line Transceiver Open Collector Non-Inverting 20-Pin PDIP SN75160BN
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.92mm |
| Model | SN75160BN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN75160 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 8 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 22ns |
| Supply Current | 110mA |
| Maximum Low Level Output Current | 48mA |
Key Features
- Features 8 channels suitable for bus transceiver applications.
- Single ended input type delivering reliable signal transmission.
- Open collector output enhances interface flexibility in electronic systems.
- Non-inverting polarity ensures signal integrity without inversion.
- Package type PDIP with 20 pins supports through-hole mounting.
- Operating temperature range from 0°C up to 70°C for versatile industrial use.
- Compact dimensions of 26.92mm length, 6.6mm width and 5.08mm height.
- Propagation delay time of 22ns at load capacitance for efficient switching.
Product Description
Texas Instruments SN75160BN is an advanced 8-Channel Line Transceiver featuring open collector outputs and non-inverting logic. Housed in a 20-Pin PDIP package, it is designed for through-hole mounting and offers robust performance for electronic component and interface IC applications.
This device operates at a minimum supply voltage of 4.75V and maximum of 5.25V, with a supply current of 110mA, making it energy-efficient for bus transceiver functions. Its single-ended input and open collector output combination facilitate flexible bus interfacing in data communication systems.
The SN75160BN supports 8 individual channels with non-inverting polarity, enabling accurate signal transmission without unintended inversions. With a propagation delay time of 22ns under load conditions, it ensures fast switching suitable for time-critical industrial electronics.
Designed for operating temperatures between 0°C and 70°C, this transceiver IC is ideal for use in a variety of applications including industrial, manufacturing, and electronics testing environments. It measures 26.92mm in length, 6.6mm in width, and 5.08mm in height, offering a compact and standardized package size for system integration.
Manufactured in Malaysia under strict quality controls, the SN75160BN meets the needs of designers requiring reliable line interface solutions with ease of mounting through a 20-pin PDIP package.
8 channel bus transceiver suitable for line interface tasks. Open collector outputs provide flexible external pull-up capability. Single-ended inputs to simplify electronic interface design. Non-inverting signals maintain original data polarity.
Through hole mounting with standard PDIP package. Wide operating temperature range for industrial environments. Fast propagation delay time ensures efficient data communications. Compact 20-pin device for easy PCB integration.
This line interface IC is essential in electronics components, semiconductor devices, and communications equipment requiring dependable bus transceiver performance. Explore the full range of Line Interface ICs and related semiconductor products at EnvMart for comprehensive solutions.
