BK Precision Digital Bench Power Supply, 1 Output, 600 V, 5.1 kW, 8.5 A Max PVS60085

BK Precision PVS60085 Digital Bench Power Supply offers a single output channel delivering up to 600 V and a maximum current of 8.5 A with a total power capacity of 5.1 kW. Designed in a compact and industry-leading 2U form factor, this programmable DC power supply delivers clean and stable output power with excellent regulation and fast transient response, suitable for demanding industrial and laboratory applications.

This device features a bright vacuum fluorescent display (VFD) and provides high resolution voltage and current control at 10 mV and 0.2 mA resolution. The power supply supports adjustable voltage and current slope settings, allowing precise control over rise and fall times, enhancing testing flexibility and safety.

The built-in solar array simulator (SAS) function can store up to 16 photovoltaic (PV) I-V curves, including Voc, Isc, Vmp, and Imp parameters, with a 1024-point table for accurate solar panel emulation. Users can take advantage of list mode programming with 9 user-defined programs comprising up to 100 programmable steps each for complex test sequences.

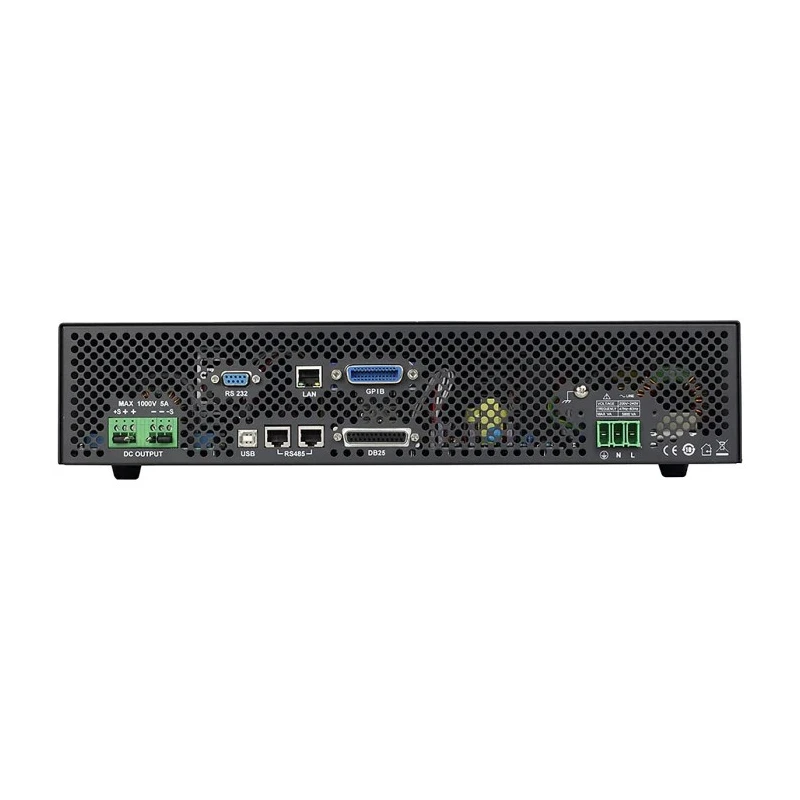

Connectivity options include standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands, making this unit easy to integrate into automated test equipment (ATE) systems. An external analog programming and monitoring interface is also available, enhancing remote control and data logging capabilities with an available LabVIEW driver and softpanel software.

Compact 2U high power density design suits space-limited benches. Single-phase AC input with wide voltage range (170V to 265V AC). Fast transient response time of less than or equal to 0.5 milliseconds ensures stable output.

Solar array simulator with comprehensive PV curve memory capability. Multi-interface connectivity supports various automation protocols. Bright VFD screen for clear monitoring of voltage and current parameters. Ideal for applications including bench testing, research and development, production test, and high-voltage testing.

Perfect for motor inverter testing demanding low noise and precise control. Includes user manual, power cord, test report, and calibration certificate for quality assurance.

This BK Precision model PVS60085 is manufactured in Taiwan, Province of China, ensuring quality control and reliability. It is ideal for laboratory, industrial, R&D, and manufacturing settings requiring stable and programmable DC power solutions.
