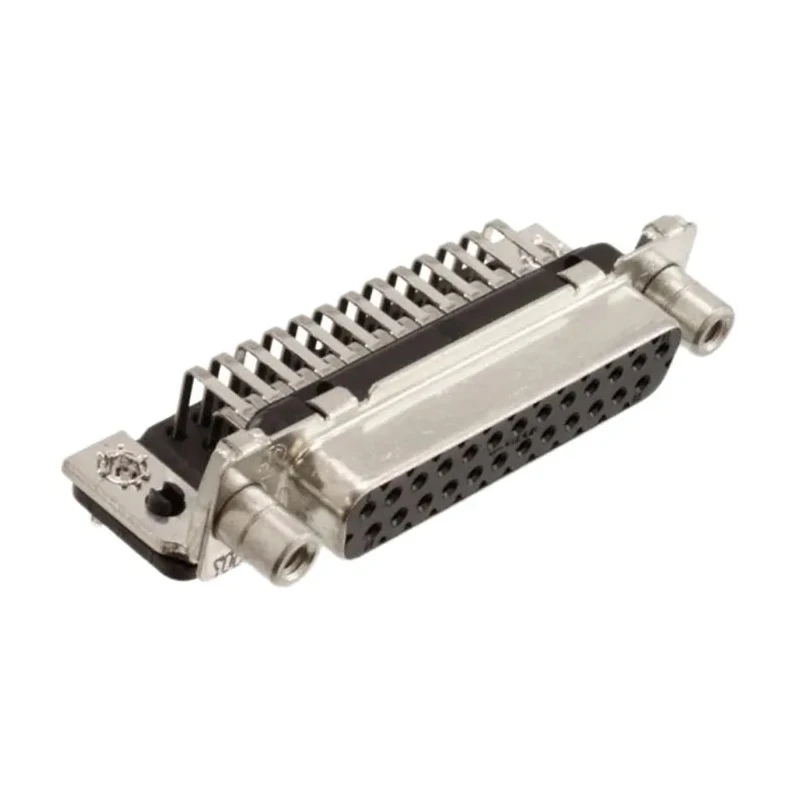

TE Connectivity AMPLIMITE HD-20 D-Sub Connector 25 Way Right Angle 2.74 mm Pitch Through Hole Female 3-106507-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
Key Features
- This connector features 25 contacts with a current rating of 6A.
- It has a right angle orientation suitable for compact PCB layouts.
- Constructed with a polyethylene terephthalate housing and phosphor bronze contacts plated gold over nickel.
- Maximum operating temperature is 105°C with a minimum of -55°C, supporting diverse environments.
- Termination type is solder, providing reliable electrical connections.
- The D-Sub shell size is B with a European standard footprint.
- Ideal for applications in electronics and power connectors requiring high durability.
Product Description
TE Connectivity 3-106507-2 AMPLIMITE HD-20 D-Sub Connector 25 Way Right Angle 2.74 mm Pitch Through Hole Female is engineered for reliable PCB mounting in industrial and electronics applications. This connector utilizes a European standard footprint ensuring compatibility with various PCB designs and assembly practices.
The connector contains 25 female contacts made of phosphor bronze, gold plated over nickel for enhanced conductivity and corrosion resistance. Its polyethylene terephthalate housing is designed to withstand maximum operating temperatures of 105°C and minimum temperatures as low as -55°C, making it suitable for harsh environments.
With a right angle orientation and through hole mount type, the connector provides sturdy and secure PCB connections. The 2.74 mm pitch and shell size B adheres to industry standards, ensuring reliable signal integrity and mechanical stability.
Termination is via soldering, suitable for permanent and robust assembly, and the connector carries no current approvals or standards beyond its build quality and materials. The phosphor bronze contacts maintain a high current capacity of 6A, supporting medium power applications.
This AMPLIMITE HD-20 series connector is widely used in electronics, power connectors, communication devices, and industrial equipment assemblies requiring dependable and durable connections.
This connector features 25 contacts with a current rating of 6A. It has a right angle orientation suitable for compact PCB layouts. Constructed with a polyethylene terephthalate housing and phosphor bronze contacts plated gold over nickel.
Maximum operating temperature is 105°C with a minimum of -55°C, supporting diverse environments. Termination type is solder, providing reliable electrical connections. The D-Sub shell size is B with a European standard footprint.
Ideal for applications in electronics and power connectors requiring high durability. Explore our full range of D-Sub Connectors and related components for industrial and electronic applications in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 6A, making it suitable for medium power applications.
It features a right angle orientation, which is suitable for compact PCB layouts.
The housing is made of polyethylene terephthalate, and the contacts are phosphor bronze plated with gold over nickel for enhanced conductivity and corrosion resistance.
The pitch size of this D-Sub connector is 2.74 mm.
It operates within a temperature range of -55°C to 105°C, allowing it to function in diverse environments.
This model features 25 female contacts, providing multiple connection points for various applications.
The termination type is solder, providing reliable electrical connections for permanent assembly.
The D-Sub shell size is B, adhering to European standard footprints for compatibility with various PCB designs.
Yes, it is widely used in electronics, power connectors, communication devices, and industrial equipment assemblies requiring dependable connections.
The connector features female contacts, which are designed for compatibility with male connectors.
The connector is manufactured in India.
The gold over nickel plating on the contacts enhances conductivity and provides corrosion resistance, improving the connector's performance in various environments.
