Festo Pneumatic Pressure Sensor QS-6 Port Threaded, 0-10 bar, IP40, 15-30V DC, 50 °C, Model

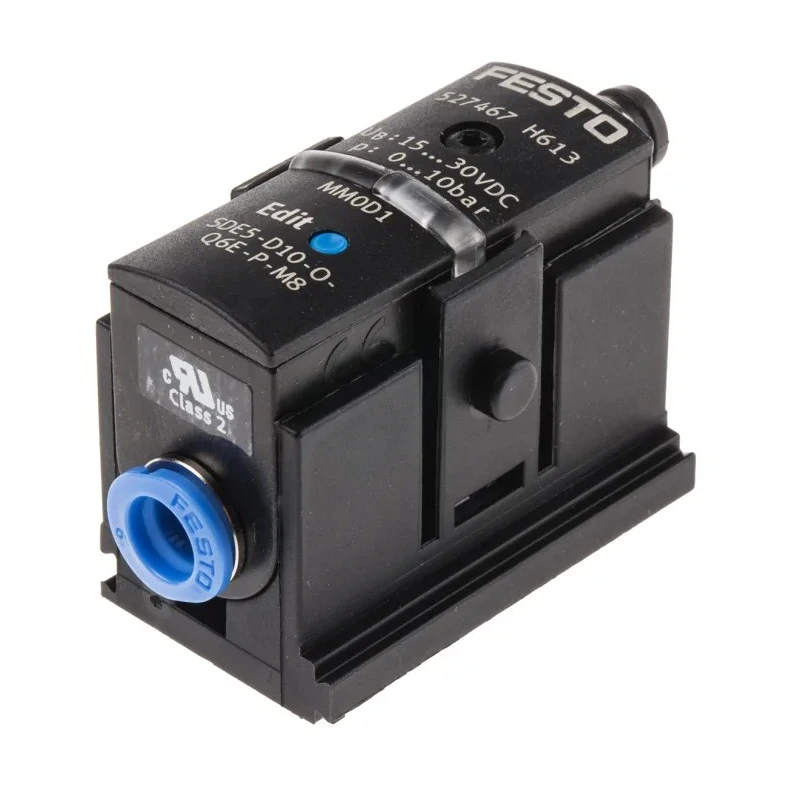

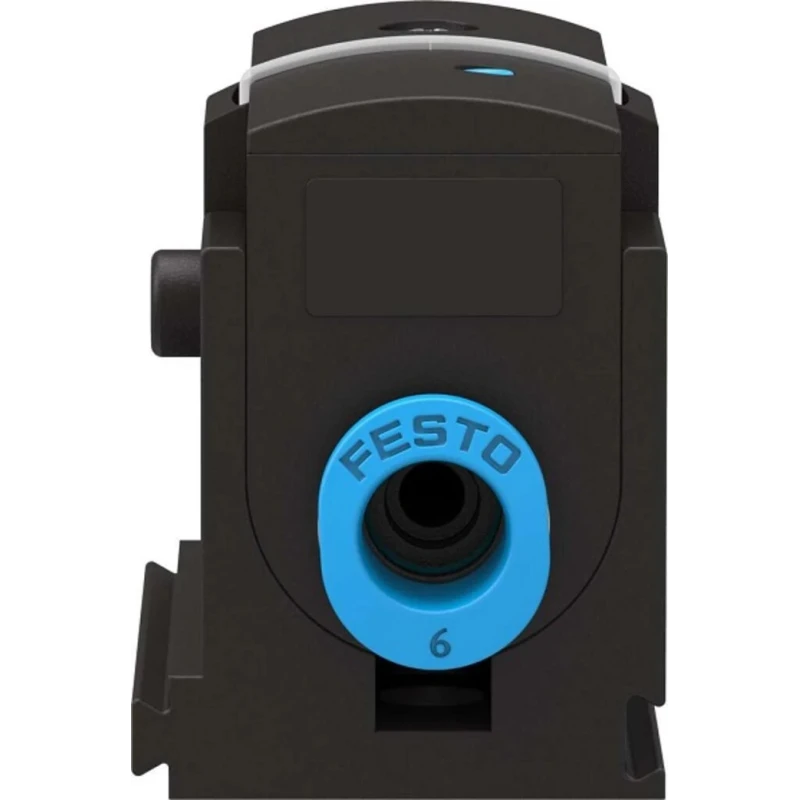

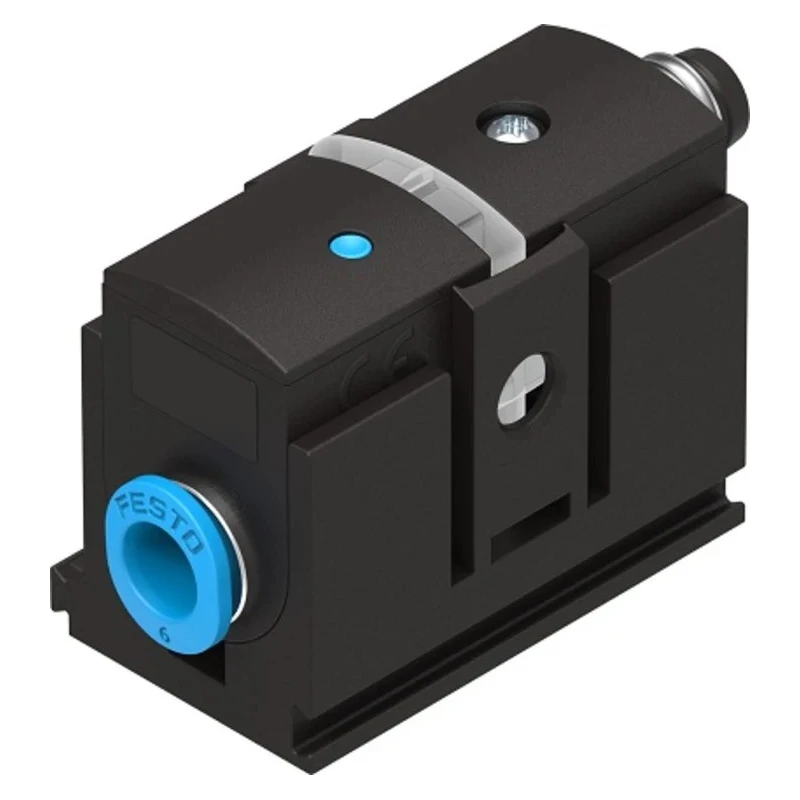

Festo SDE5-D10-O-Q6E-P-M8 pneumatic pressure sensor offers a reliable and accurate method to measure positive pressure in pneumatic systems with compressed air as the medium. Designed for industrial and automation applications, it features a QS-6 threaded port that simplifies connection to pressurized sources and ensures secure installation.

With an operating pressure range from 0 to 10 bar and a maximum operating temperature of 50 °C, this sensor is suited for use in diverse environments including building automation, medical equipment, and automotive sectors. The sensor's precise piezoresistive measuring method provides an accuracy rating of 0.3% of full scale, ensuring dependable monitoring where precision is critical.

The unit operates safely at supply voltages between 15 V and 30 V DC and includes both NPN and PNP switch outputs for compatibility with various control systems. Its yellow LED indicator clearly displays switching status, facilitating easy status checking on-site.

Constructed with a durable polyamide housing, the sensor withstands wear and tear in heavy-duty applications. The IP40 rating protects it from solid foreign objects larger than 1 mm and accidental contact, adding to operational safety. Mounting via bracket enables flexible positioning to best fit installation needs.

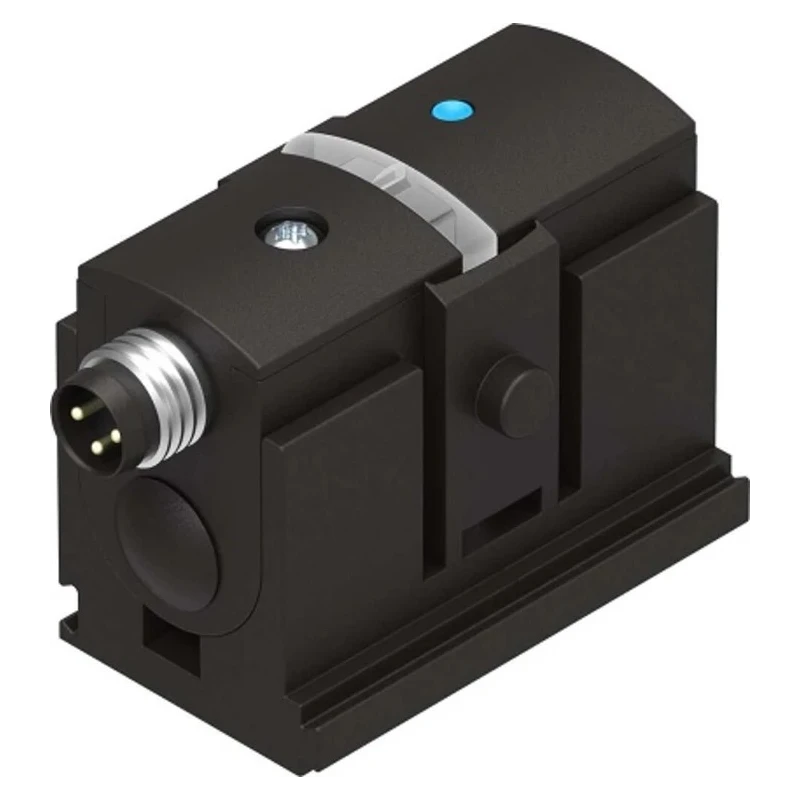

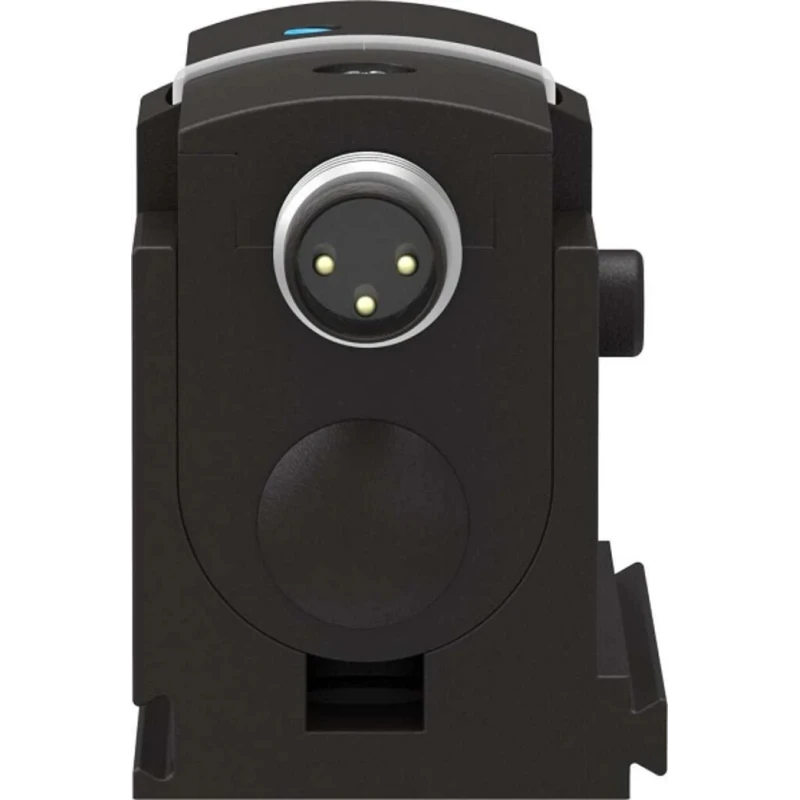

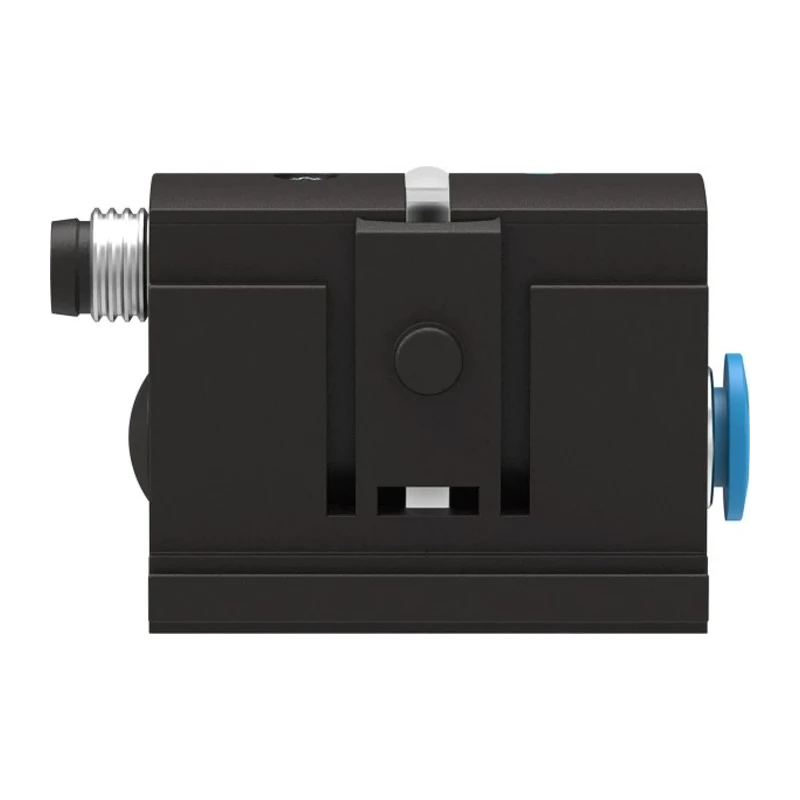

Compact and lightweight, with dimensions 15 mm wide, 43 mm tall and 30 mm deep and a mass near 19 grams, it imposes minimal mechanical load on the mounting surface. Electrical connection is through a plug socket, providing secure and easy wiring.

Operates with supply voltage of 15 to 30 V DC ensuring compatibility with industrial electrical systems. Threaded QS-6 port connection for secure and easy installation in pneumatic systems. High accuracy with 0.3% of full scale for precise pressure monitoring.

Polyamide housing provides wear resistance for demanding industrial applications. IP40 rating guarantees protection against solid objects larger than 1 mm and touch-proof safety. Wide operating temperature range from 0°C to 50°C for versatile environmental use.

Compact dimensions (15 mm width, 43 mm height, 30 mm depth) and lightweight of approximately 19 g minimize mounting strain. Equipped with NPN and PNP switch outputs for flexible control integration. Yellow LED indicator shows switching status at a glance for ease of monitoring.

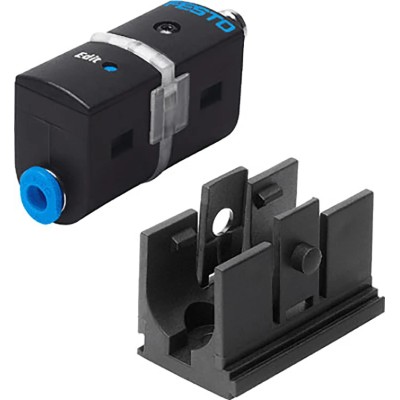

Bracket mount type supports stable and adaptable positioning in varied setups.

This sensor is ideal for use in industrial, automation, building management, medical technology, and automotive manufacturing sectors where precise and reliable pneumatic pressure measurement is essential. Its robust design and flexible mounting options make it a versatile component for enhancing pneumatic system performance.
