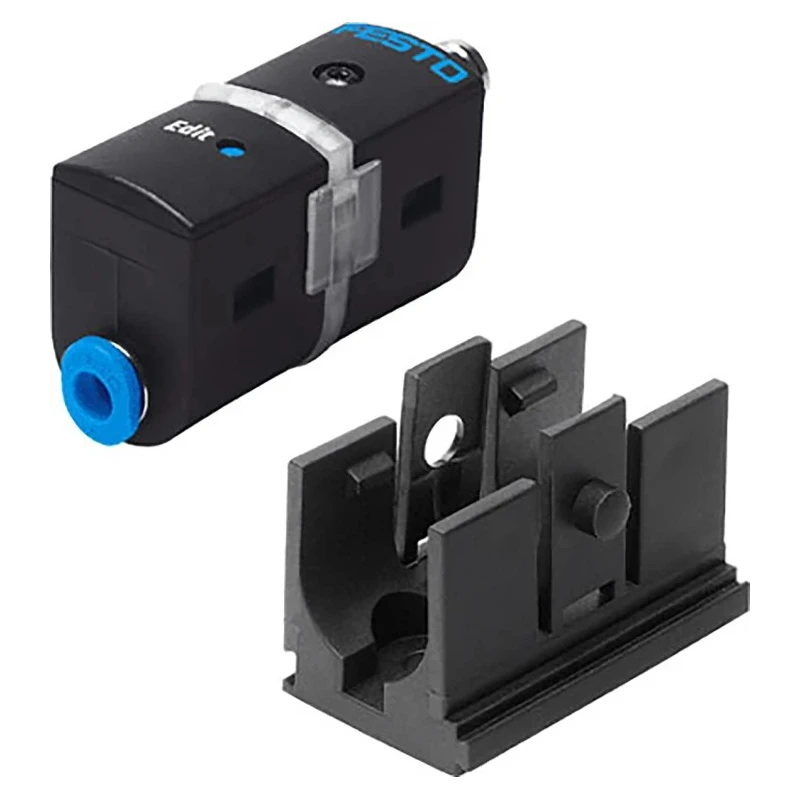

Festo Pneumatic Pressure Sensor Threaded Port 6 mm Tubing 15, 30V dc IP40 10 bar 50°C
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Voltage | 15, 30V dc |
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 43mm |
| Model | IP40 |
| Depth | 30mm |
| IP Rating | IP40 |
| Width | 15mm |
| Mount Type | Bracket |
| Series | SDE5 |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Positive |
| Port Type | Threaded |
| Switch output | PNP, NPN |
| Port Size | 6 mm Tubing |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Electrical Connection Type | Plug Socket |
| Minimum Operating Pressure | 0bar |
| Port Gender | Male |
| Suitable Medias | Air |
| Operating medium - Compressed air in accordance with ISO8573-1 | 2010 [7:4:4] |
Key Features
- High reliability with durable piezo-resistive sensor technology.
- Compact and sturdy design with visible yellow LED for operating status indication.
- Threaded port size of 6 mm tubing and male port gender.
- Selectable output functions with PNP and NPN switch outputs.
- Operating temperature range from 0 to 50 degrees Celsius.
- Quick and easy installation with bracket mount and M8 plug connector.
- Applications include pressure monitoring, vacuum technology, and object detection via back pressure.
Product Description
Festo SDE5-D10-O2-Q6E-P-M8 pneumatic pressure sensor is engineered for reliable and precise monitoring of positive pressure in compressed air systems. Featuring a robust piezo-resistive sensing element and a compact IP40-rated housing, this sensor operates at pressures up to 10 bar and voltages ranging from 15 to 30 V dc.
The sensor offers threaded connection for 6 mm tubing, a male port, and bracket mounting for ease of installation. Equipped with selectable switching functions and outputs (PNP, NPN), it provides flexible interfacing for industrial automation and pneumatic control systems.
Designed to withstand operating temperatures between 0 and 50 degrees Celsius, the sensor's yellow LED indicator delivers clear feedback on switching status. The device is compliant with RoHS standards and suitable for use with compressed air media conforming to ISO8573-1:2010 [7:4:4].
Typical applications include compressed air monitoring, pressure regulation, vacuum suction confirmation, and object detection via back pressure, making it ideal for use in pneumatic systems within industries such as manufacturing, processing, and automation.
High reliability with durable piezo-resistive sensor technology. Compact IP40 housing with bracket mount. Selectable output functions with PNP and NPN switch outputs. Operating pressure up to 10 bar and temperature range 0 to 50°C.
Threaded port for 6 mm tubing with male gender connection. Yellow LED operating status indicator for clear feedback. Compliance with RoHS and suitable for compressed air media as per ISO8573-1:2010 [7:4:4]. Applications in pneumatic monitoring, vacuum technology, and object detection.
Explore more Pneumatic Pressure Sensors and related automation components in EnvMart's Industrial Tools & Equipment category for hydraulic and pneumatic tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 10 bar.
This model operates within a temperature range of 0 to 50 degrees Celsius.
It features selectable output functions with both PNP and NPN switch outputs.
The sensor has a threaded port size for 6 mm tubing and a male port gender.
This unit uses a plug socket for its electrical connection.
It is designed for bracket mounting, allowing for quick and easy installation.
It is suitable for compressed air media in accordance with ISO8573-1:2010 [7:4:4].
The dimensions of this model are a height of 43 mm, a width of 15 mm, and a depth of 30 mm.
Yes, it is equipped with a yellow LED indicator that provides clear feedback on the switching status.
Yes, it is compliant with RoHS standards.
This sensor is designed to measure positive pressure in compressed air systems.
Typical applications include manufacturing, processing, and automation, particularly for pressure monitoring and vacuum technology.
